ECM Communication Stop Mode
CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: ECM Communication Stop Mode
ECM Communication Stop Mode

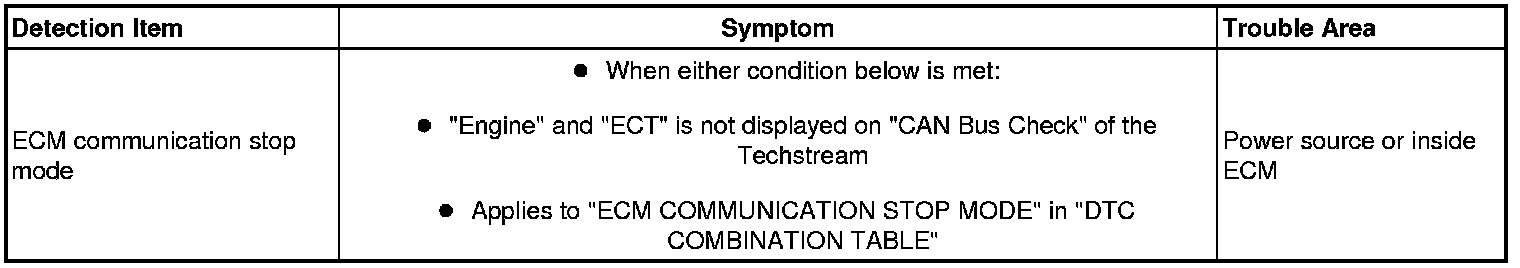

DESCRIPTION

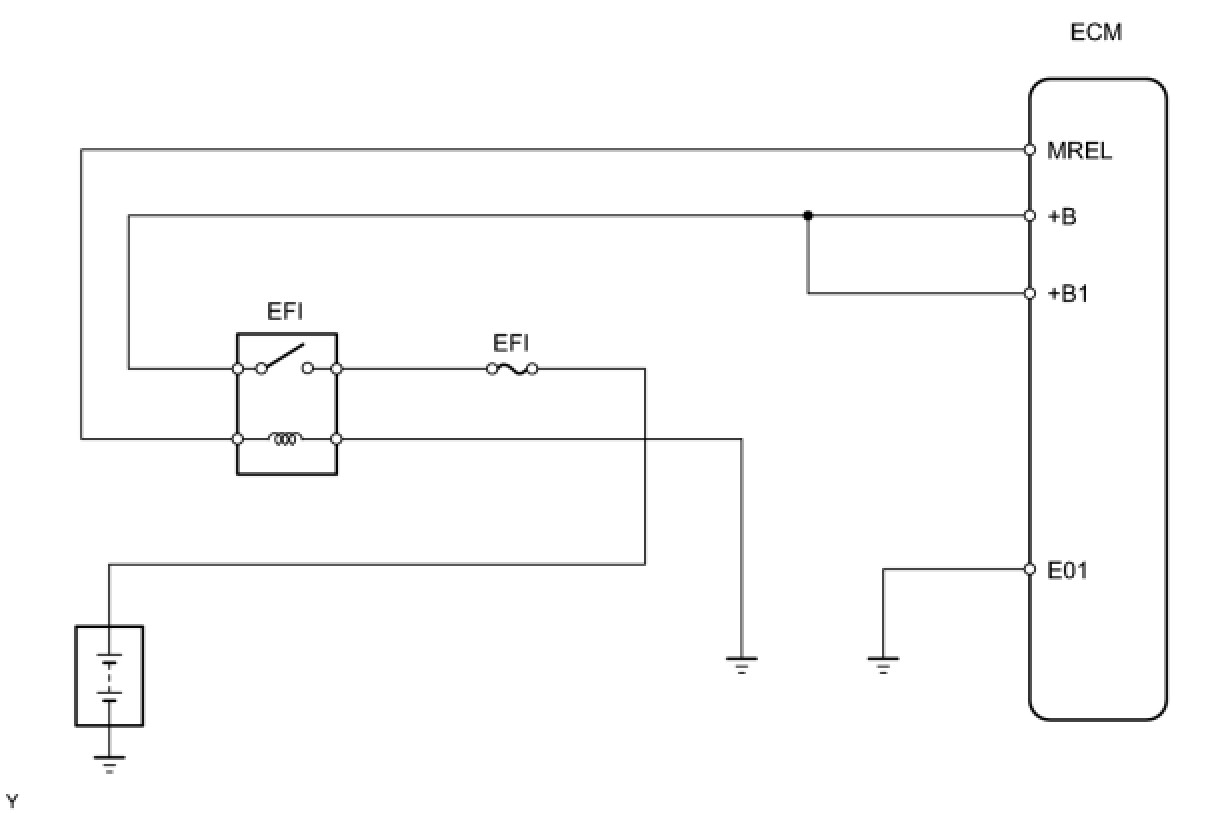

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE

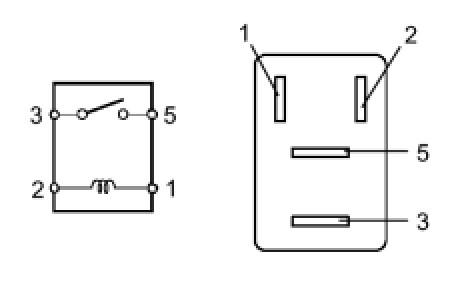

1. INSPECT EFI RELAY (Marking: EFI)
(a) Remove the EFI relay from the engine room No. 2 relay block.

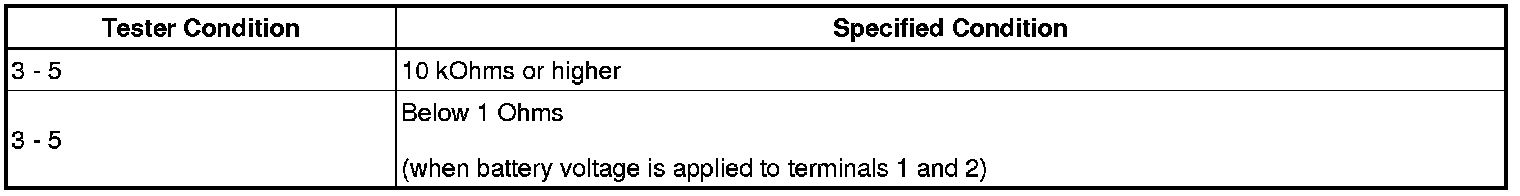

(b) Measure the resistance of the relay.
Standard resistance:
NG -- REPLACE EFI RELAY
OK -- Continue to next step.

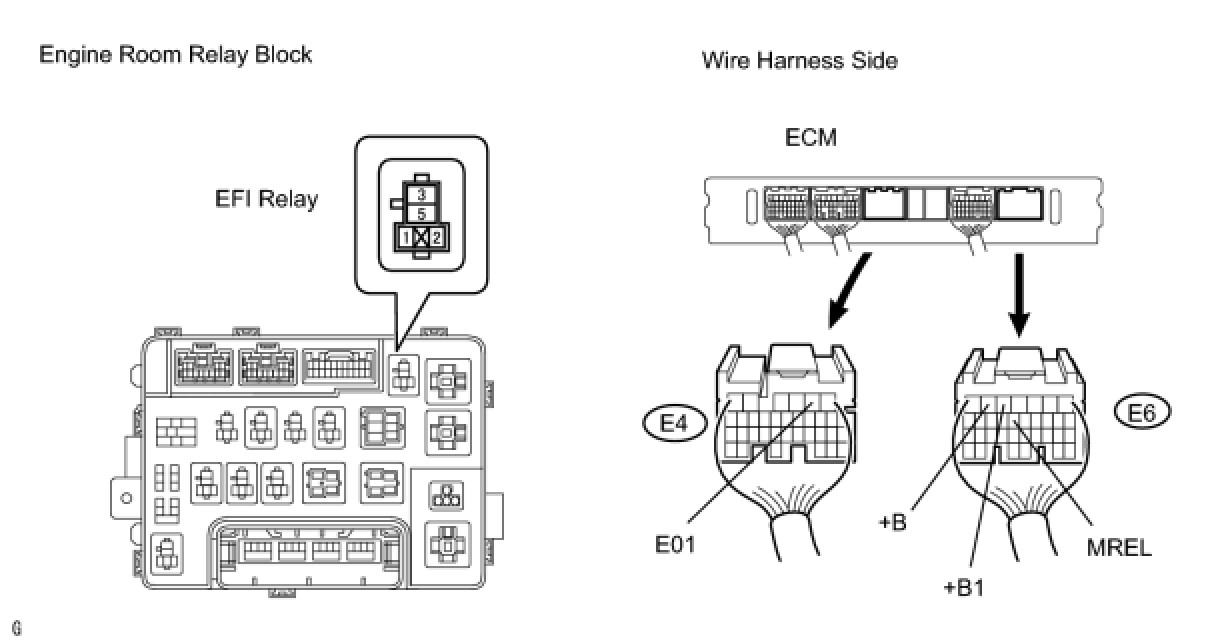

2. CHECK WIRE HARNESS (EFI RELAY - ECM, BATTERY AND BODY GROUND)
(a) Remove the EFI relay from the engine room No. 2 relay block.
(b) Disconnect the E4 and E6 ECM connectors.
(c) Measure the voltage of the wire harness side connector.
Standard voltage:

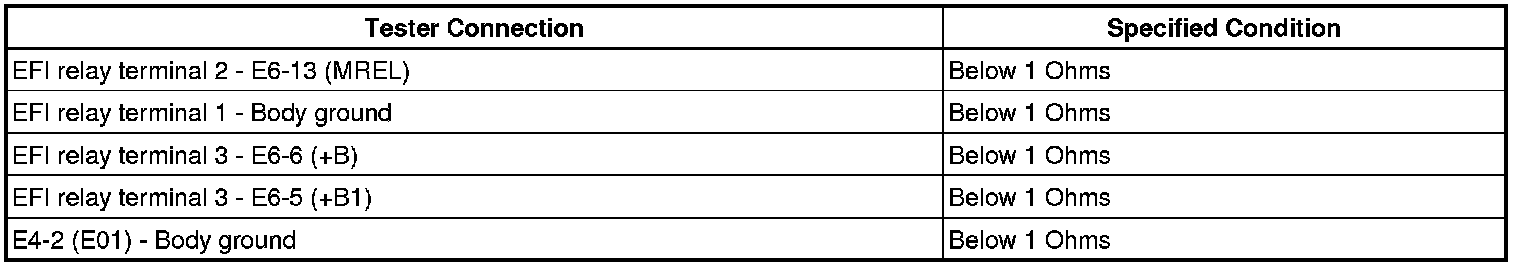

(d) Measure the resistance of the wire harness side connectors.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE ECM
