System Diagram

MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: SYSTEM DIAGRAM

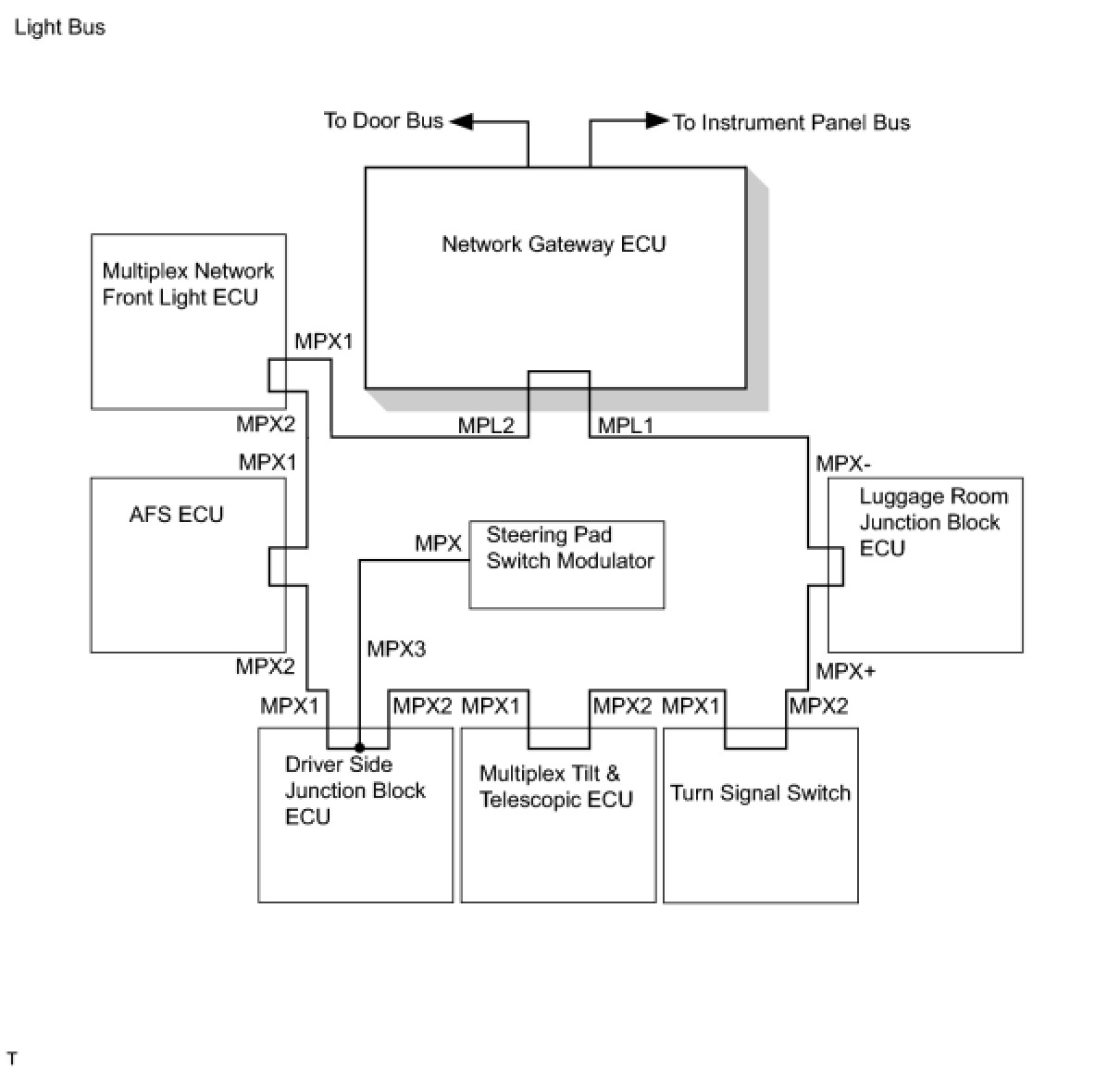

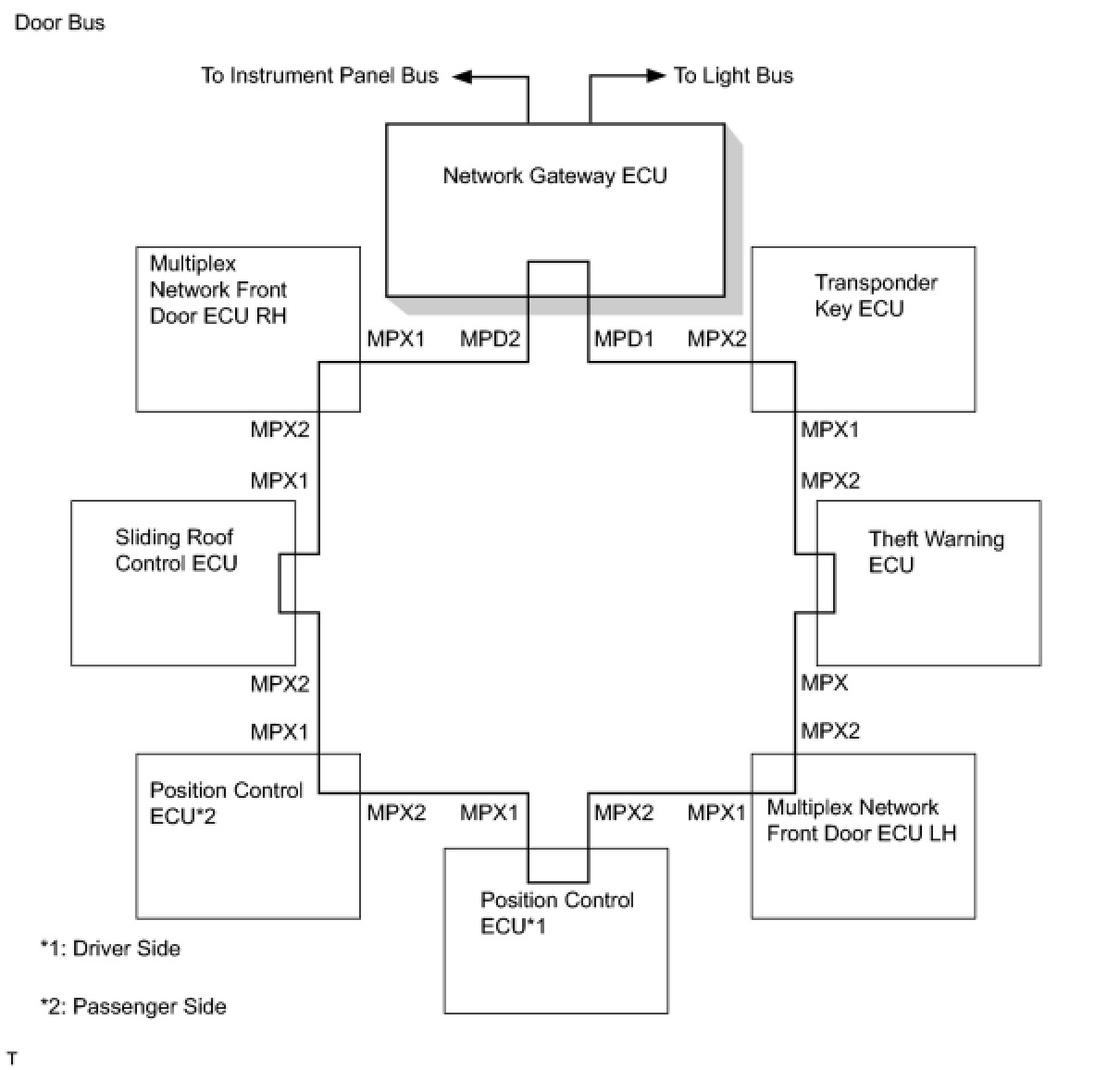

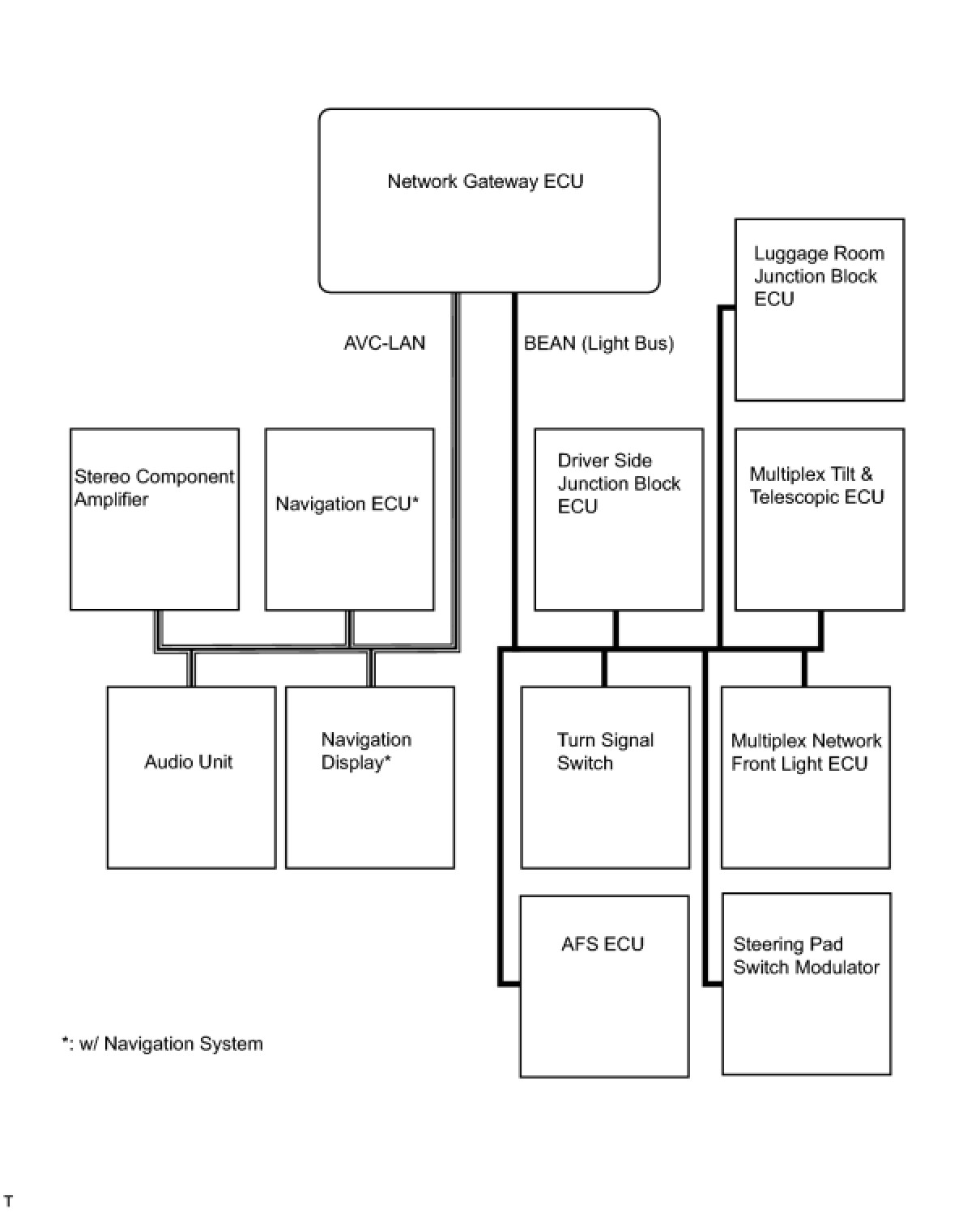

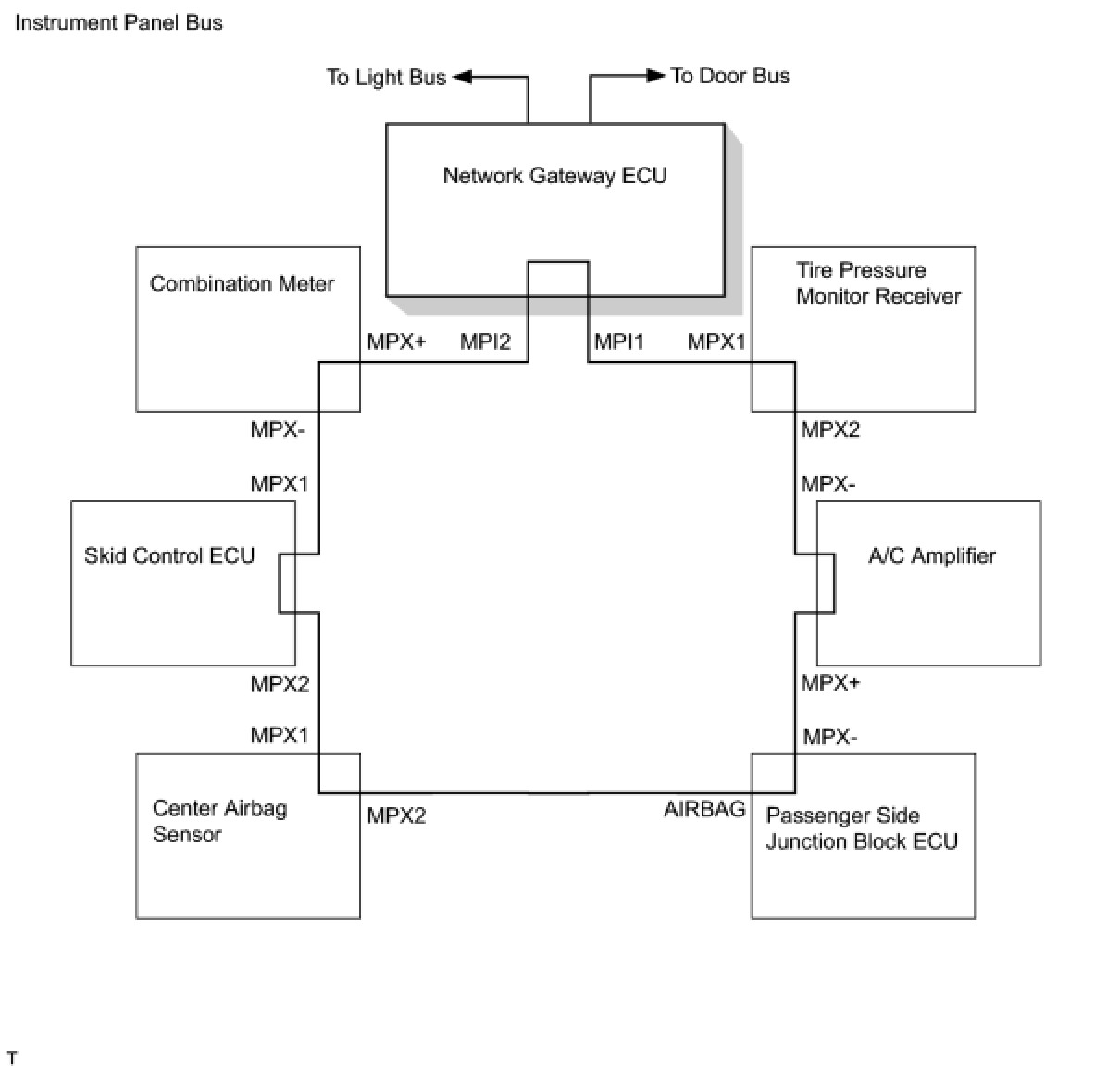

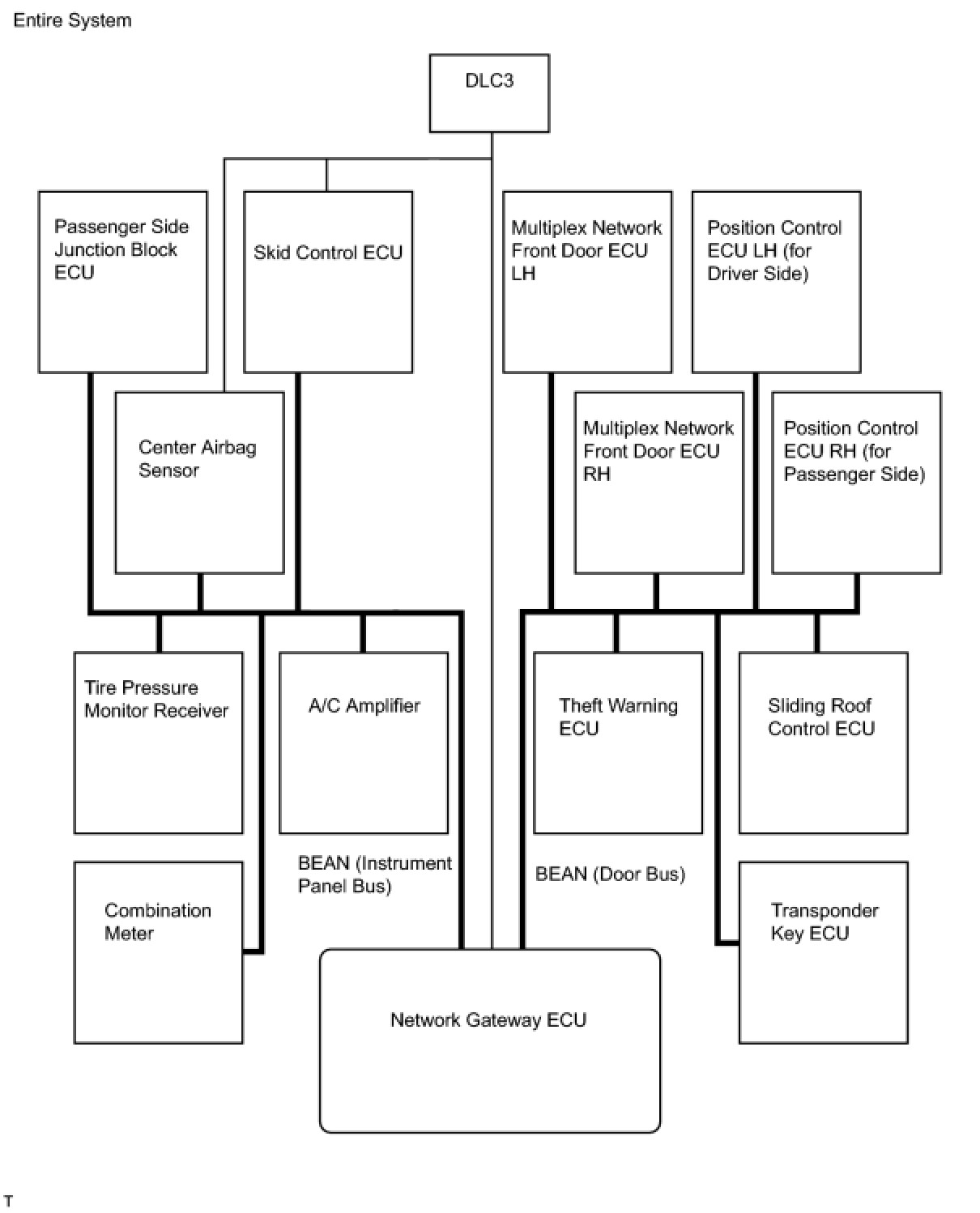

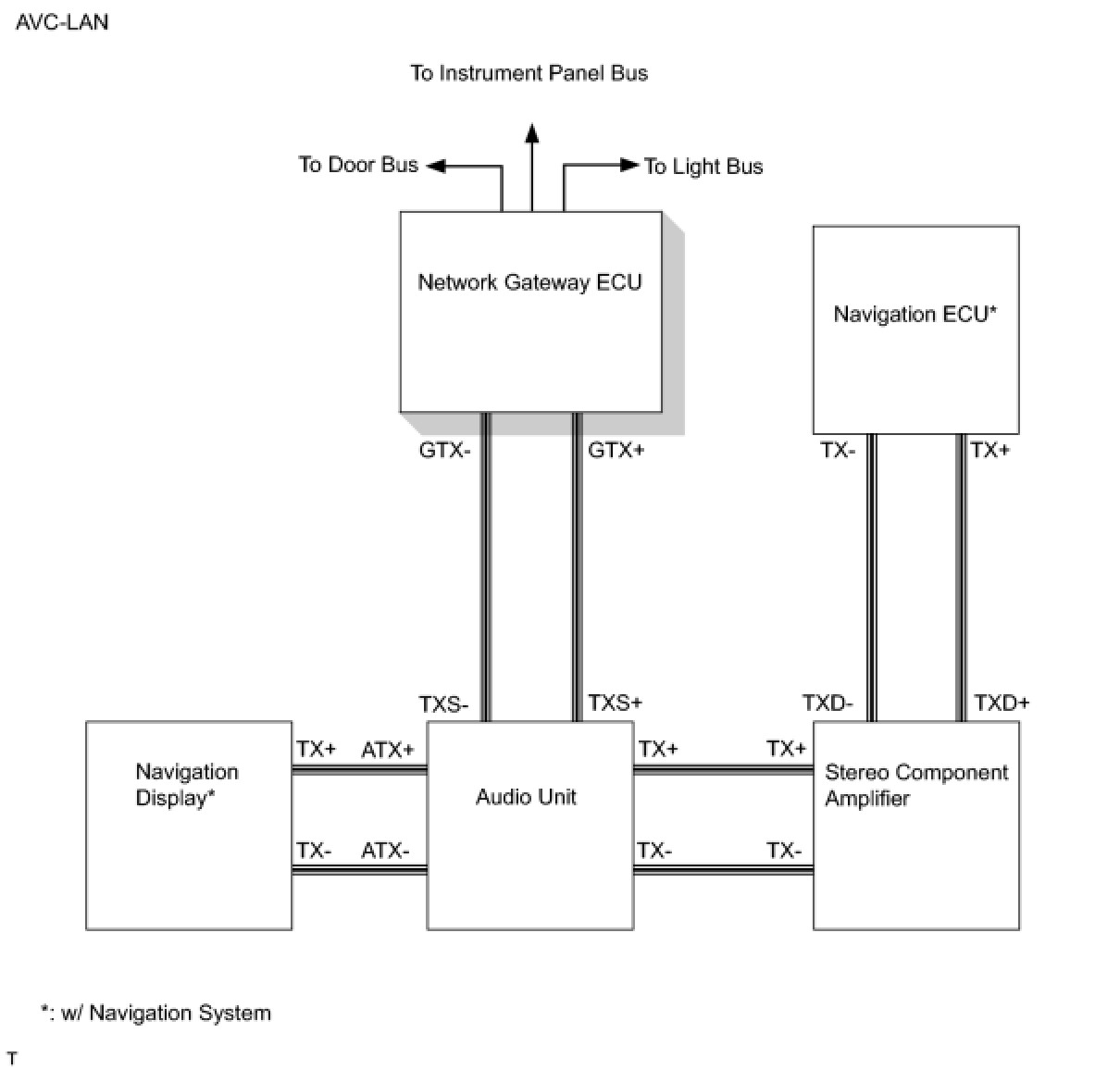

SYSTEM DIAGRAM





HINT:
*1: Optional ECUs are also included.
*2: A group of data that is required for a single instance of communication.
*3: A unit of data transmission per second (bits per second).
