AXLE: FRONT AXLE HUB BOLT: REPLACEMENT

REPLACEMENT
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. REMOVE FRONT WHEEL





2. DISCONNECT FRONT DISC BRAKE CYLINDER ASSEMBLY
(a) Remove the 2 bolts and disconnect the brake cylinder from the steering knuckle.
(b) Support the brake cylinder securely.
3. REMOVE FRONT BRAKE DISC





4. REMOVE FRONT AXLE HUB BOLT

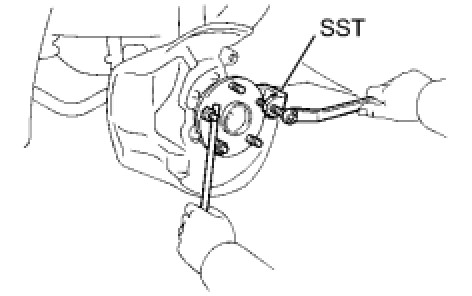

(a) Temporarily install 2 nuts to the hub bolts as shown in the illustration.
(b) Using SST and a brass bar or equivalent to hold the axle shaft, remove the hub bolt.
SST: 09628-10011





5. INSTALL FRONT AXLE HUB BOLT

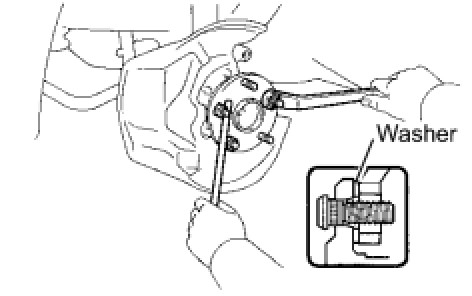

(a) Temporarily install a plate washer and nut to a new hub bolt as shown in the illustration.
(b) Using a brass bar or an equivalent to hold the axle, install the hub bolt by torquing the nut. Then remove the nut and plate washer.
(c) Remove the 2 nuts temporarily installed above.
6. INSTALL FRONT BRAKE DISC
7. CONNECT FRONT DISC BRAKE CYLINDER ASSEMBLY
(a) Connect the brake cylinder to the steering knuckle with the 2 bolts.
Torque: 118 Nm (1,203 kgf-cm, 87 ft-lbf)
8. INSTALL FRONT WHEEL
(a) Install the front wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
