System Diagram








TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: SYSTEM DIAGRAM

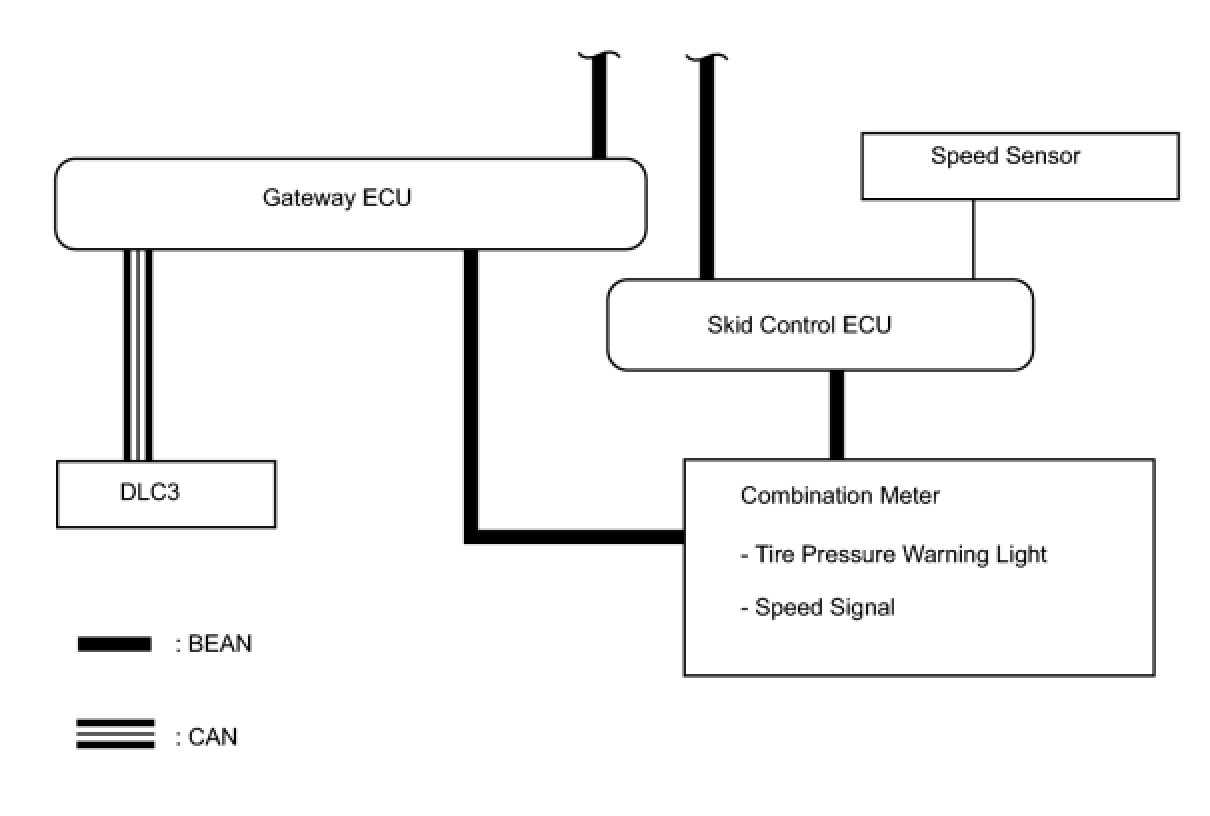

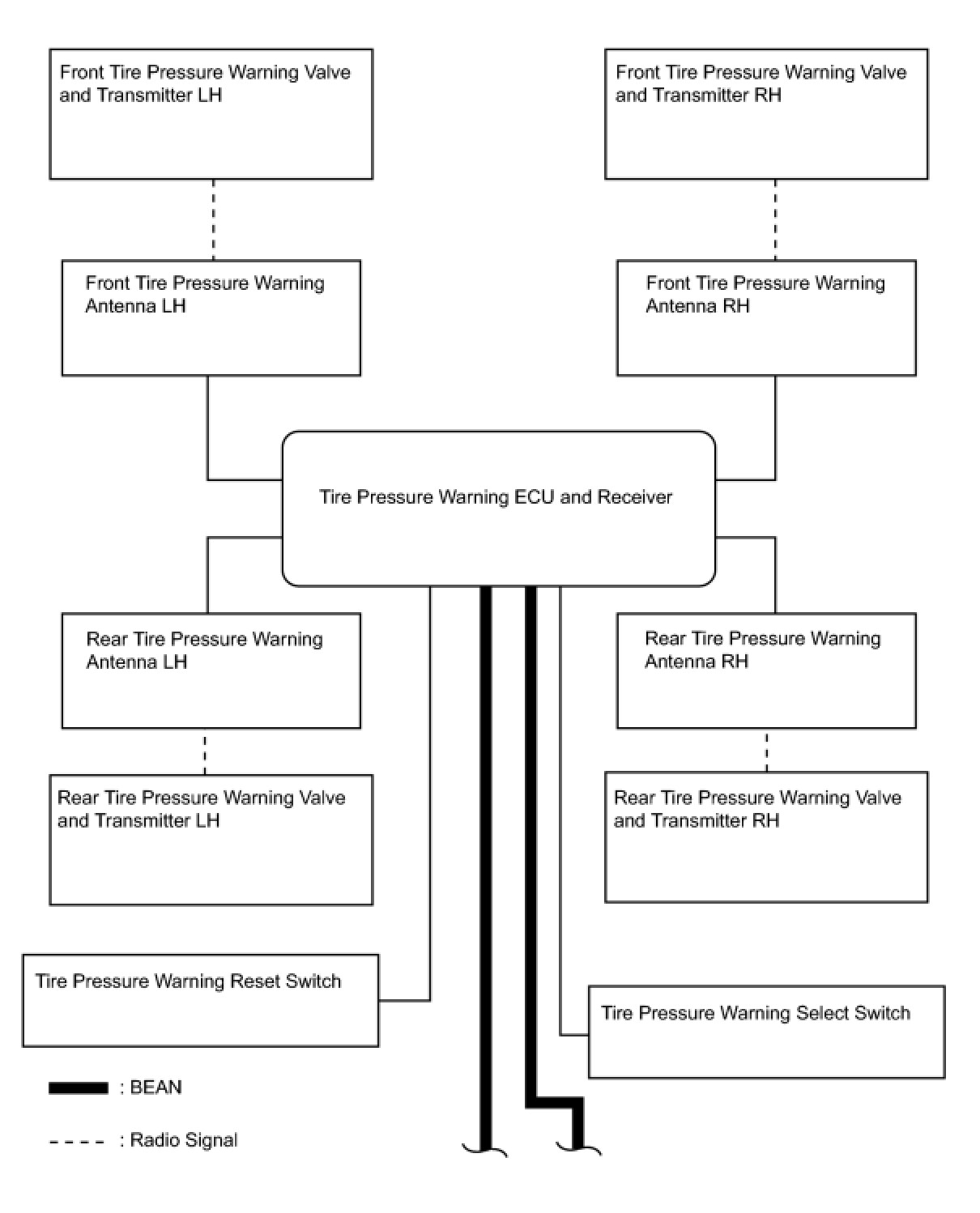

SYSTEM DIAGRAM








HINT: The tire pressure warning valve and transmitter sends information on the temperature inside the tire, the ID, and the tire pressure.
