Component Tests and General Diagnostics

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH

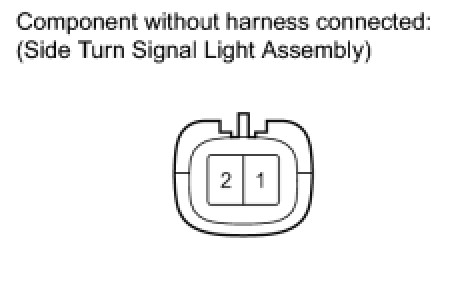

(a) Apply battery voltage to the connector and check the LED illumination condition.

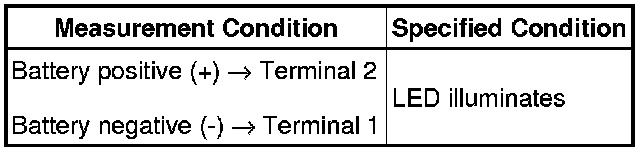

OK:





If the result is not as specified, there may be a malfunction in the side turn signal light assembly.
