Removal

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH

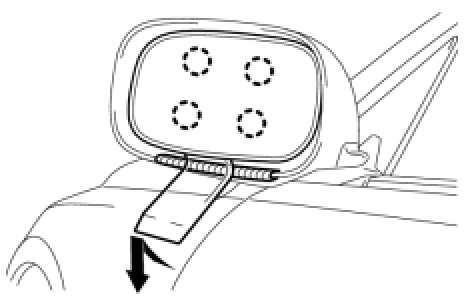

(a) Using a moulding remover, detach the 4 claws.
HINT: Apply protective tape to the mirror body.

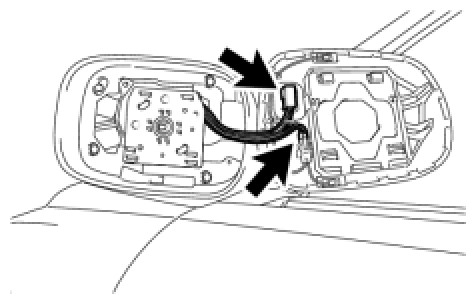

(b) Disconnect the 2 connectors and remove the mirror.
2. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH





(a) Remove the 4 screws.
(b) Detach the claw and remove the outer rear view mirror visor.





(c) Detach the 3 clips and remove the mirror cover.





(d) Disconnect the connector.
(e) Remove the 2 screws.
(f) Detach the 2 clamps and remove the side turn signal light.
