Installation

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY LH





(a) Attach the 2 clamps to install the side turn signal light.
(b) Install the 2 screws.
(c) Connect the connector.





(d) Attach the 3 clips to install the mirror cover.





(e) Attach the claw to install the outer rear view mirror visor.
(f) Install the 4 screws.
2. INSTALL OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH





(a) Connect the 2 connectors.

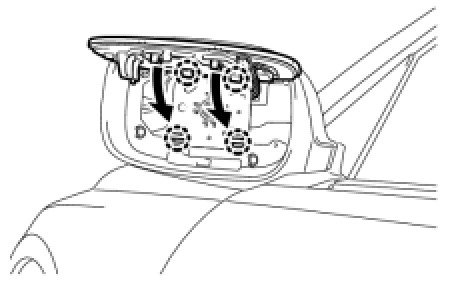

(b) Attach the 4 claws to install the mirror.
