Programming and Relearning

LIGHTING: LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS
HINT: The followings are the possible items to be customized.
NOTICE:
- After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

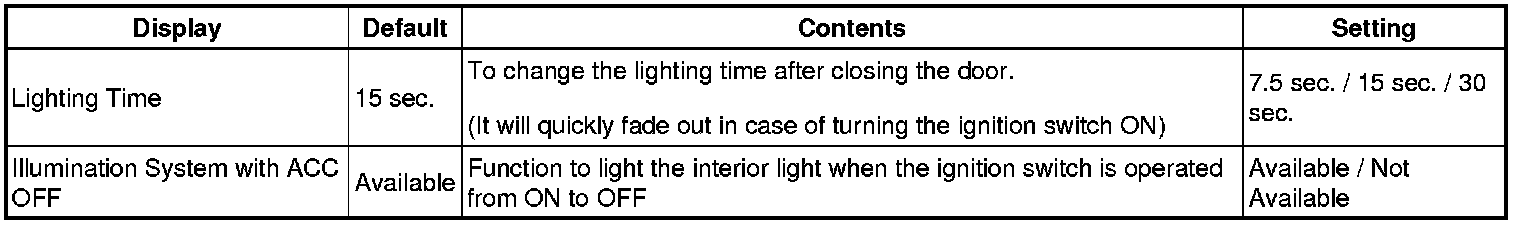

Illuminated Entry





HINT: Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

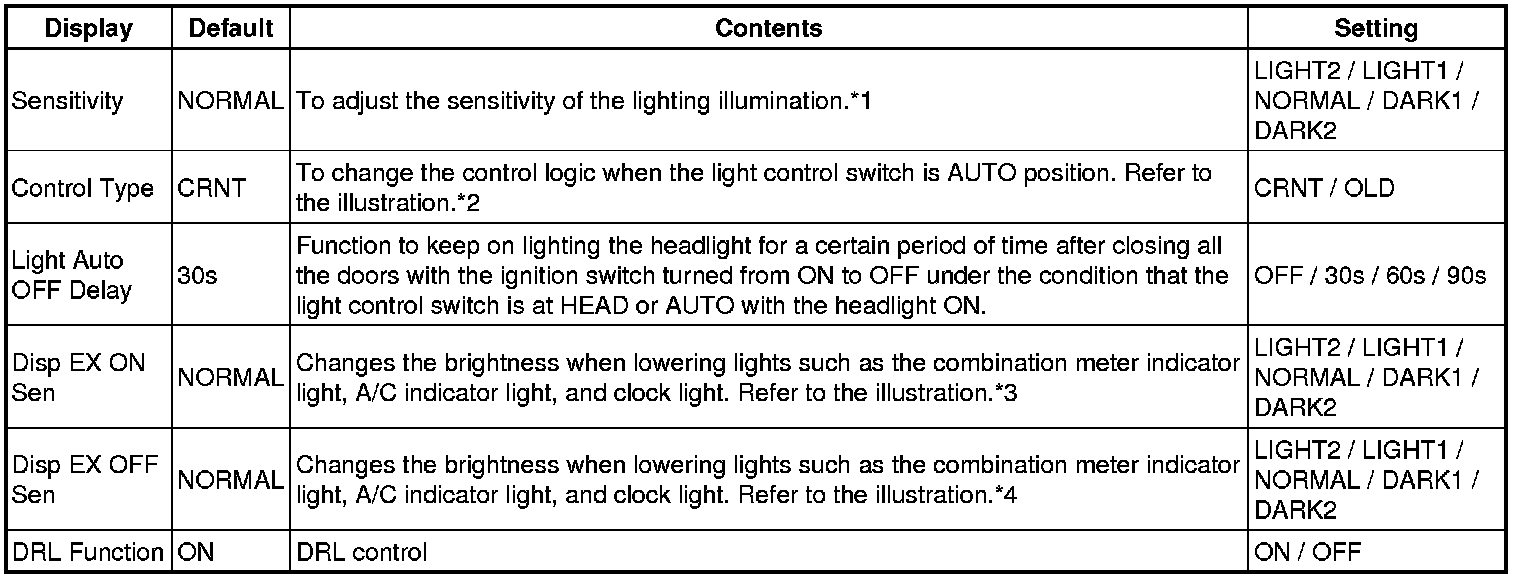

Light Control

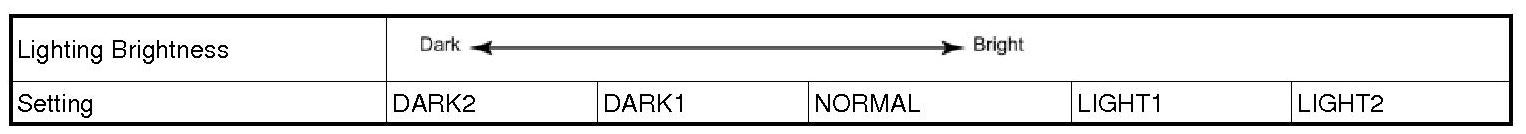

Illustration *1

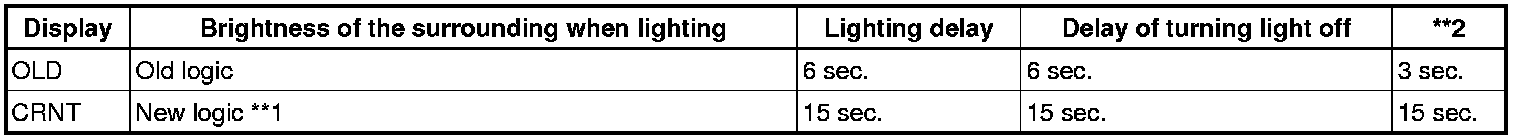

Illustration *2





HINT: **1: The new one has the logic to light up two times brighter than the old logic.
**2: Delay time until the headlight is turned on when it suddenly gets dark.

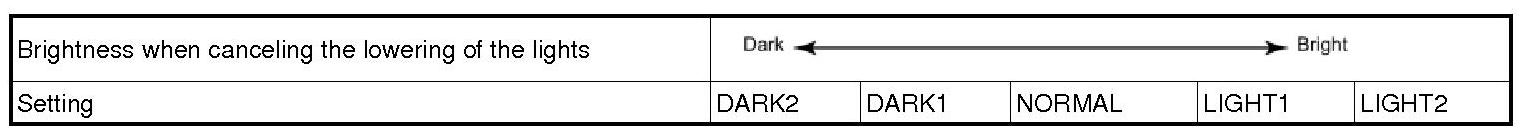

Illustration *3

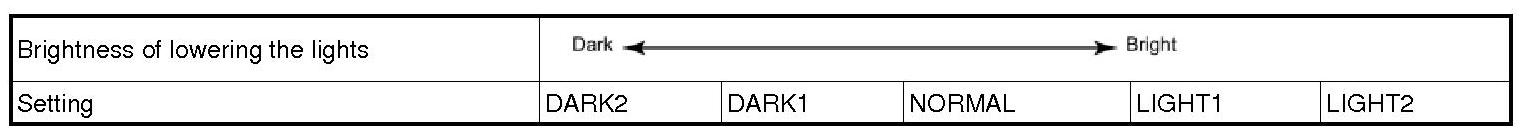

Illustration *4
