Removal

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY LH Disassembly
3. REMOVE REAR FLOOR FINISH PLATE Disassembly
4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT Disassembly
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH Disassembly
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH Disassembly
7. REMOVE SPARE WHEEL COVER ASSEMBLY
8. REMOVE SPARE TIRE
9. REMOVE TOOL BOX COVER Disassembly
10. REMOVE LUGGAGE COMPARTMENT TRIM REAR COVER SUB-ASSEMBLY Disassembly
11. REMOVE TONNEAU COVER ASSEMBLY Disassembly
12. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER Disassembly
13. REMOVE REAR FLOOR FINISH SIDE PLATE LH Disassembly
14. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT Disassembly
15. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH Disassembly
16. REMOVE REAR LIGHT COVER LH
(a) Using a screwdriver, pry out the light cover.
HINT: Tape the screwdriver tip before use.

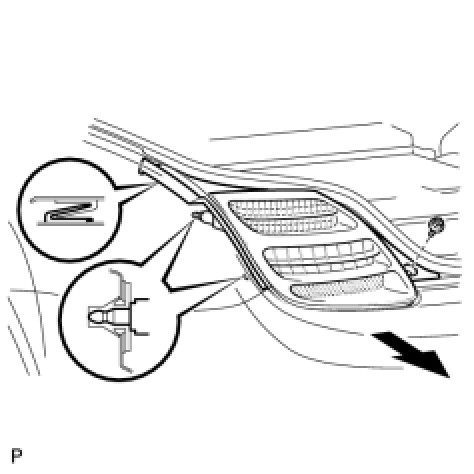

17. REMOVE REAR COMBINATION LIGHT ASSEMBLY LH





(a) Disconnect the connector.





(b) Remove the bolt.
(c) Pull out the light, and then disconnect the 2 pins and light guide of the body side.
