Fog/Driving Lamp Relay: Testing and Inspection

LIGHTING: FOG LIGHT RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT FOG LIGHT RELAY (Marking: FR FOG)
(a) Remove the FR FOG relay from the engine room No. 2 relay block.
(b) Measure the resistance of the relay.

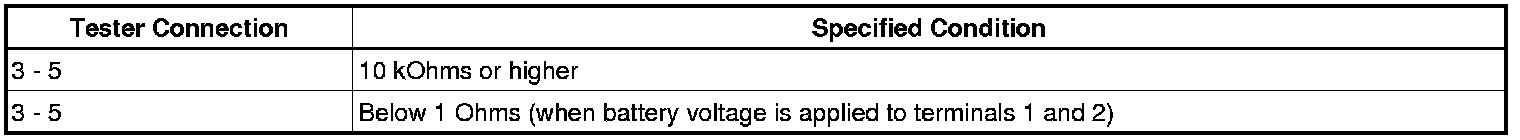

Standard resistance:
