Removal








HORN: HIGH PITCHED HORN: REMOVAL

REMOVAL

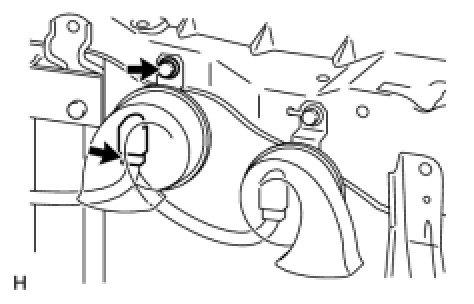

1. REMOVE HIGH PITCHED HORN
(a) Disconnect the horn connector.
(b) Remove the bolt and horn.
