LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- The procedures listed below are for the LH side.
- Use the same procedures for the RH and LH side.





1. INSTALL HEADLIGHT ASSEMBLY
(a) Connect the connector.

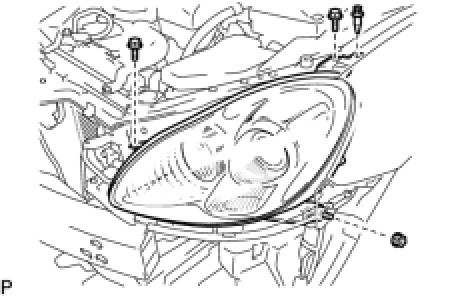

(b) Install the unit with the 2 bolts, nut and clip.
2. INSTALL FRONT BUMPER ENERGY ABSORBER
3. INSTALL FRONT BUMPER COVER Installation
4. INSTALL FRONT FENDER LINER LH Installation
5. INSTALL FRONT FENDER LINER RH Installation
6. INSTALL RADIATOR GRILLE Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

9. ADJUST HEADLIGHT AIMING Adjustments
