Height Control Sensor (for Front Side)

LIGHTING: HEIGHT CONTROL SENSOR (for Front Side): INSPECTION

INSPECTION





1. INSPECT INSPECT FRONT HEIGHT CONTROL SENSOR SUBASSEMBLY
(a) Connect 3 dry cell batteries (1.5 V) in series.

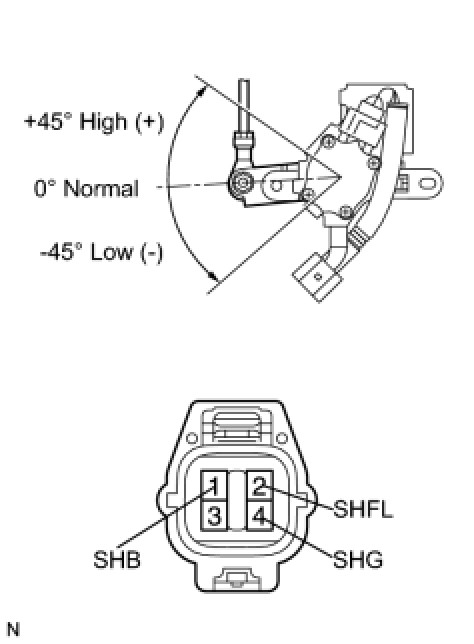

(b) Connect the dry cell battery positive (+) terminal to terminal 1 (SHB) and the negative one to terminal 4 (SHG) to apply the voltage of 4.5 V between terminals 1 (SHB) and 4 (SHG).
(c) While slowly moving the link up and down with the voltage being applied, measure the voltage between terminals 2 (SHFL) and 4 (SHG).

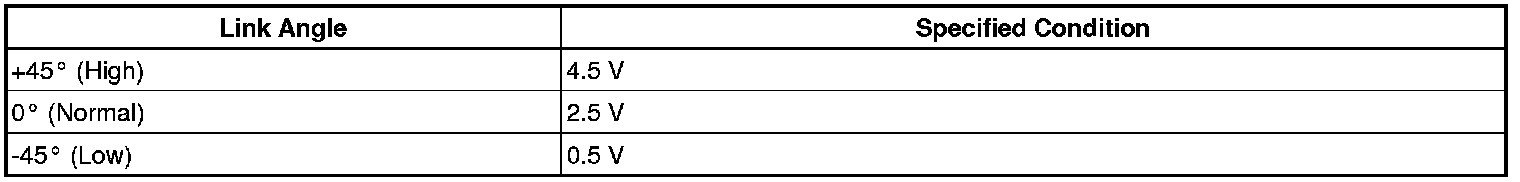

Standard voltage:





If the result is not as specified, replace the sensor.
