Removal

LIGHTING: HEIGHT CONTROL SENSOR (for Front Side): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT WHEEL

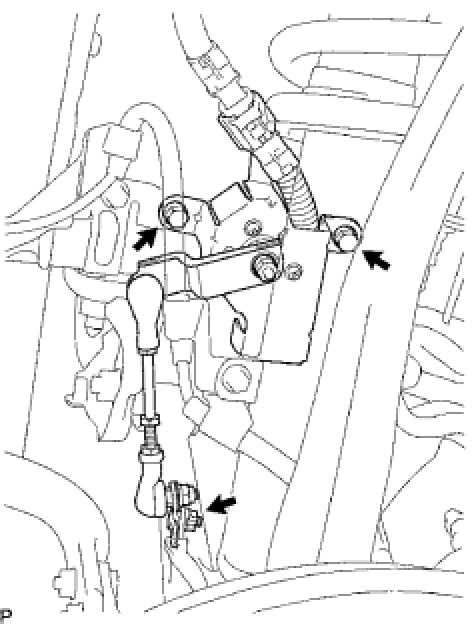

3. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH
(a) Disconnect the connector.
(b) Remove the nut and disconnect the sensor link.
(c) Remove the 2 bolts and sensor.
