Fog/Driving Lamp: Adjustments

LIGHTING: FOG LIGHT ASSEMBLY: ADJUSTMENT

ADJUSTMENT





1. ADJUST FOG LIGHT AIMING
(a) Make sure that the tire inflation pressure is the specified value (120 kPa (1.2 kgf/cm2, 17 psi)).
(b) Start the engine.

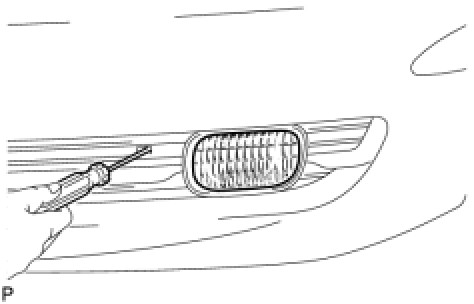

(c) Insert the screwdriver tip into the hole in the front bumper and rotate the aiming screw while observing through the front bumper (vertical adjustment).
HINT: Rotating the screwdriver clockwise aims the fog light axis downward, and rotating counterclockwise aims it upward.
