Installation

LIGHTING: BACK-UP LIGHT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH and LH side.
- The procedures listed below are for the LH side.

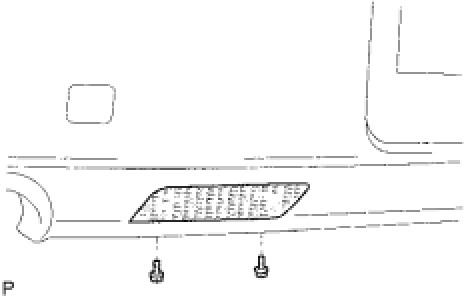

1. INSTALL BACK-UP LIGHT LENS LH
(a) Install the lens with the 2 bolts.
(b) Connect the connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
