ODO/Trip Switch Malfunction

METER: METER / GAUGE SYSTEM: ODO/Trip Switch Malfunction

ODO/Trip Switch Malfunction

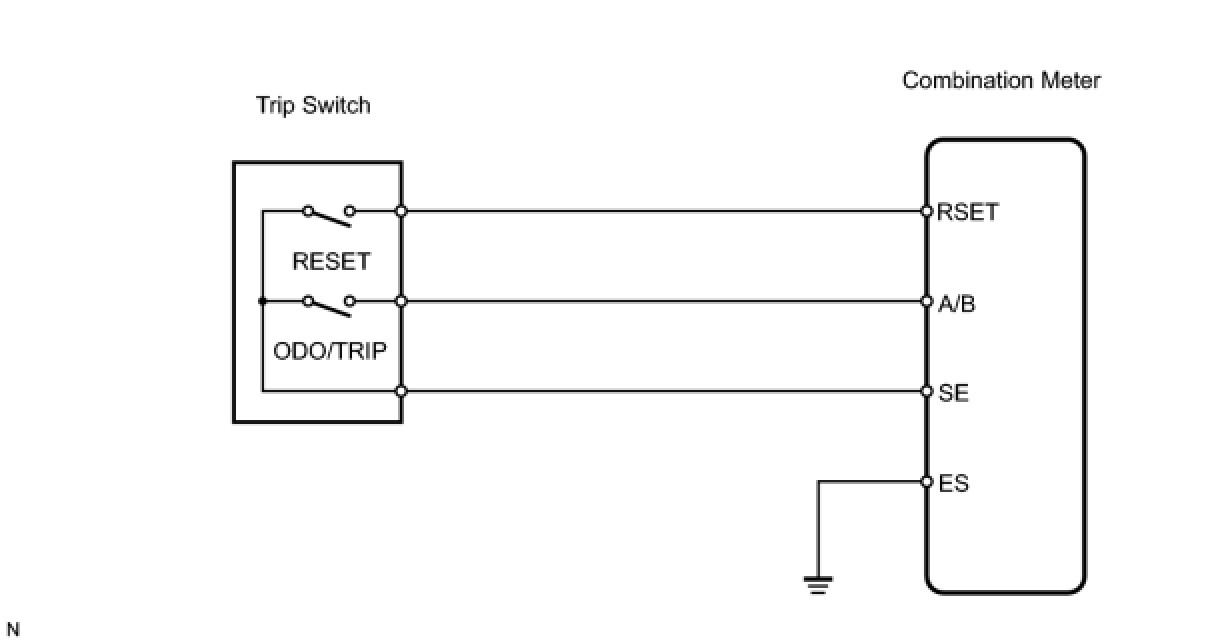

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

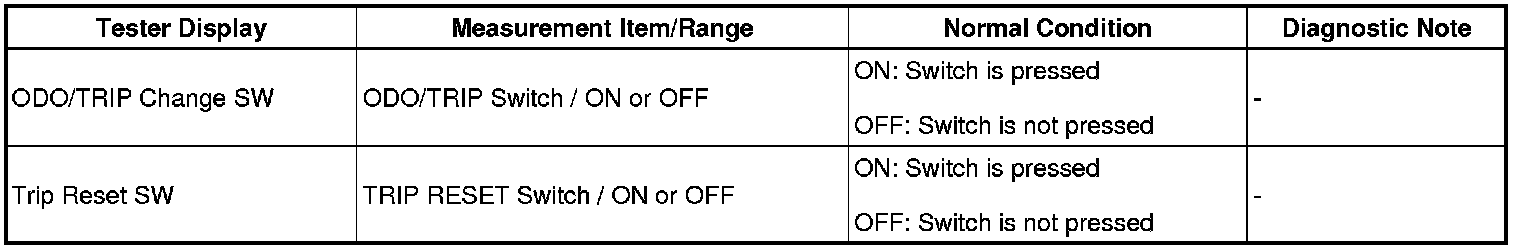

1. READ VALUE USING TECHSTREAM (TRIP SWITCH)
(a) Check the Data List for proper functioning of the TRIP switch.

Combination meter





OK:
ON (switch is pressed) is displayed on the tester.
OK -- REPLACE COMBINATION METER ASSEMBLY
NG -- Continue to next step.

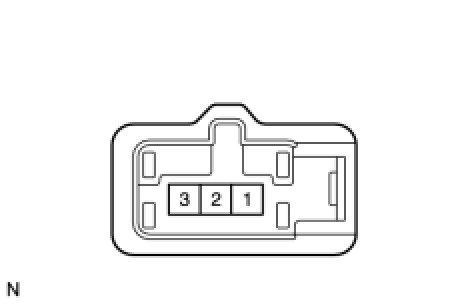

2. INSPECT TRIP SWITCH




(a) Remove the trip switch.

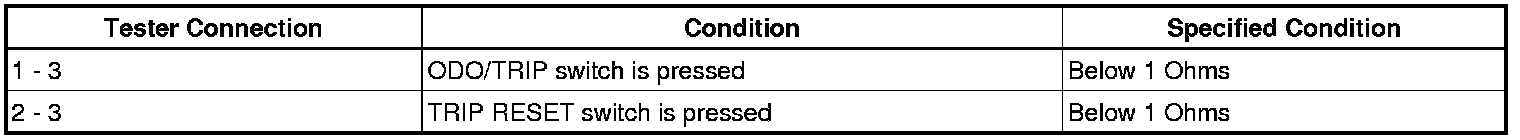

(b) Measure the resistance of the switch.
Standard resistance:






NG -- REPLACE TRIP SWITCH
OK -- Continue to next step.

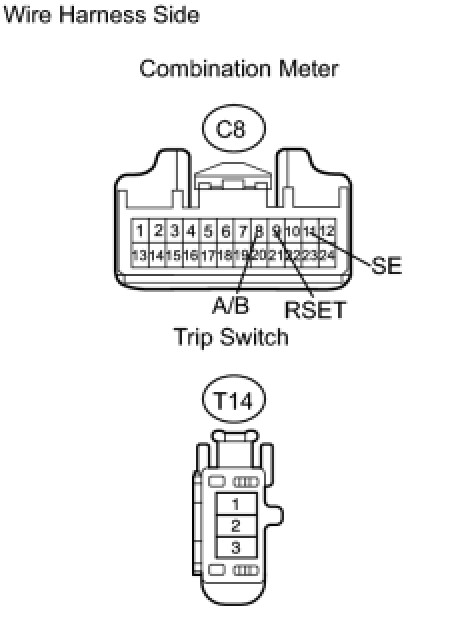

3. CHECK WIRE HARNESS (METER - SWITCH)




(a) Disconnect the C8 meter connector.
(b) Disconnect the T14 switch connector.

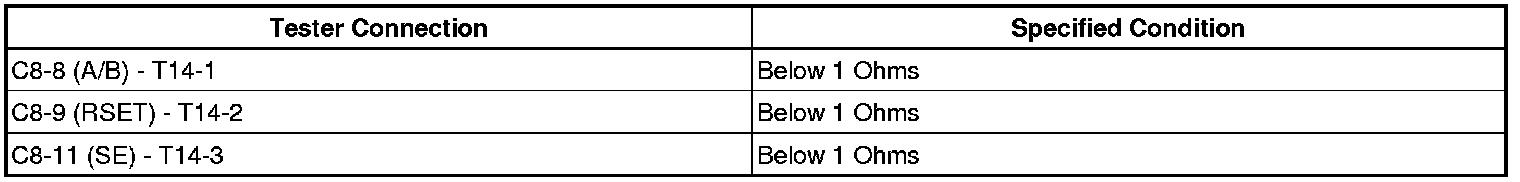

(c) Measure the resistance of the wire harness side connectors.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE COMBINATION METER ASSEMBLY
