Indicator Lights Do Not Illuminate

METER: METER / GAUGE SYSTEM: Indicator Lights do not Illuminate

Indicator Lights do not Illuminate

INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (INDICATOR LIGHTS AND WARNING LIGHTS)
(a) Select the Active Test, use the Techstream to generate a control command, and then check that the indicators and warning lights illuminate.

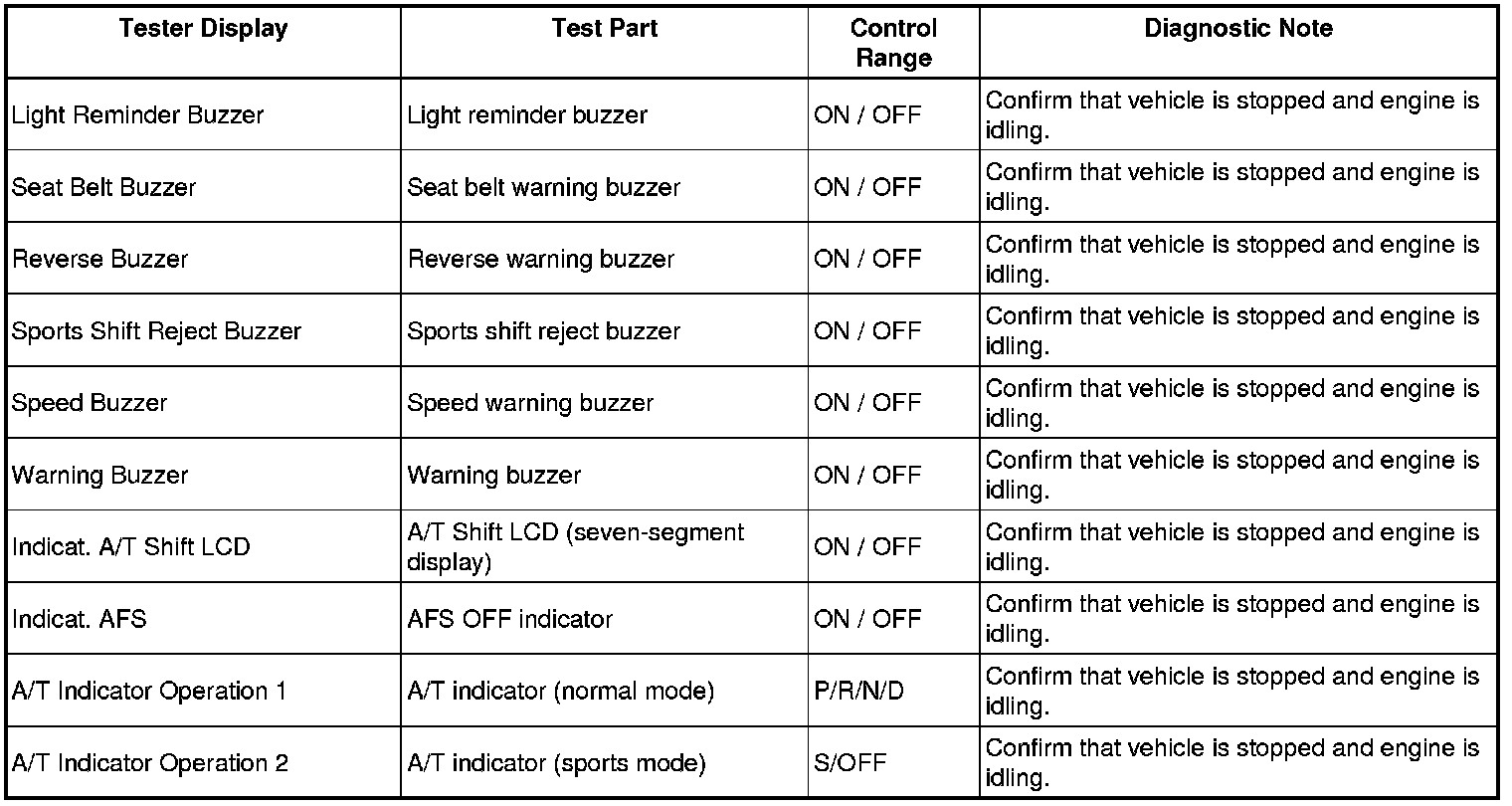

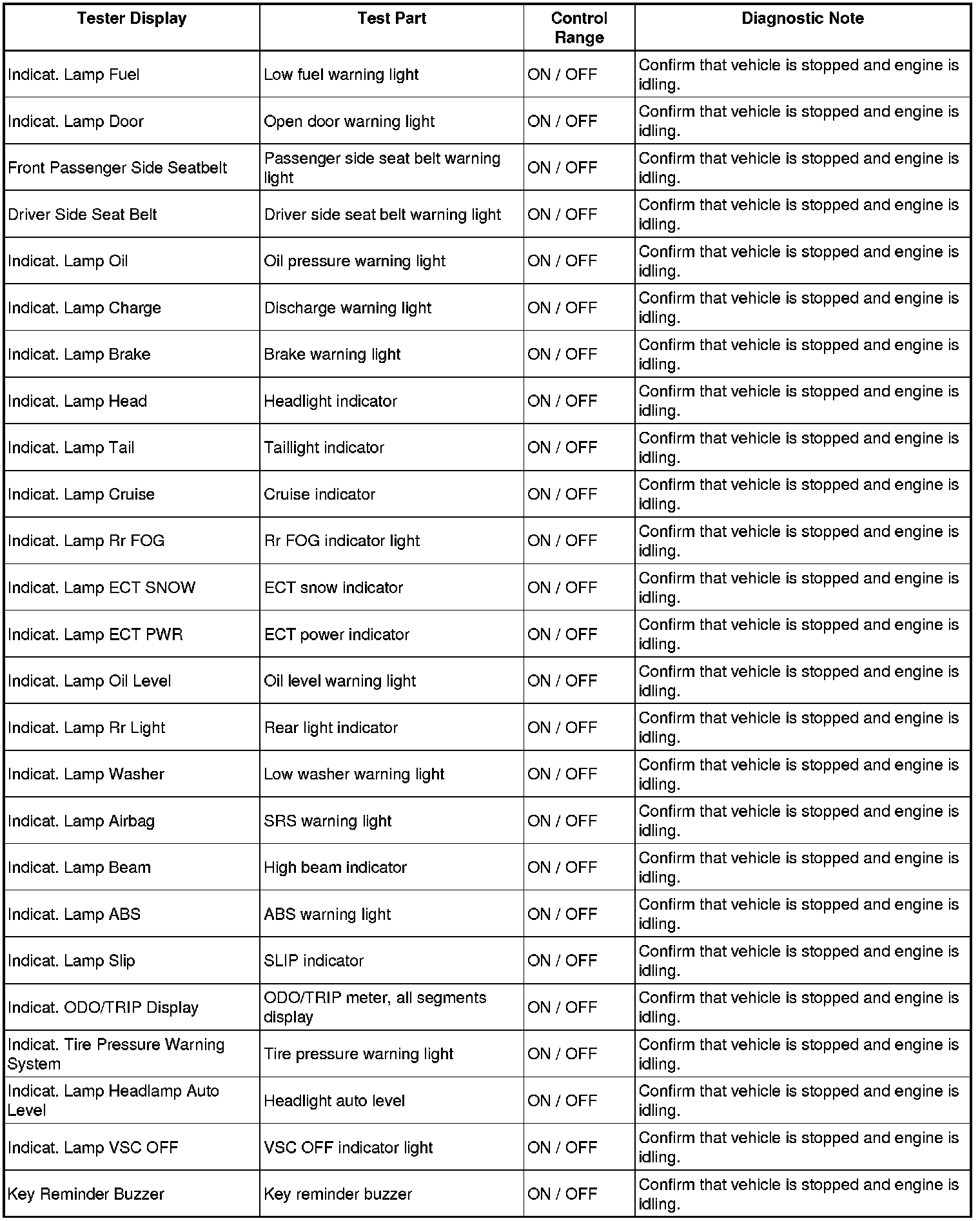

Combination meter:

Combination meter









NG -- REPLACE COMBINATION METER ASSEMBLY
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
