Meter / Gauge System

METER: METER / GAUGE SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. READ DATA LIST
HINT: Using the Techstream's Date List allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the Date List early in troubleshooting is one way to save time.

(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Read the Date List according to the display on the Techstream.

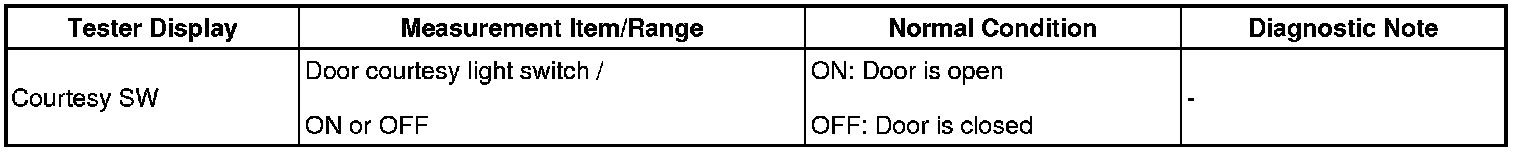

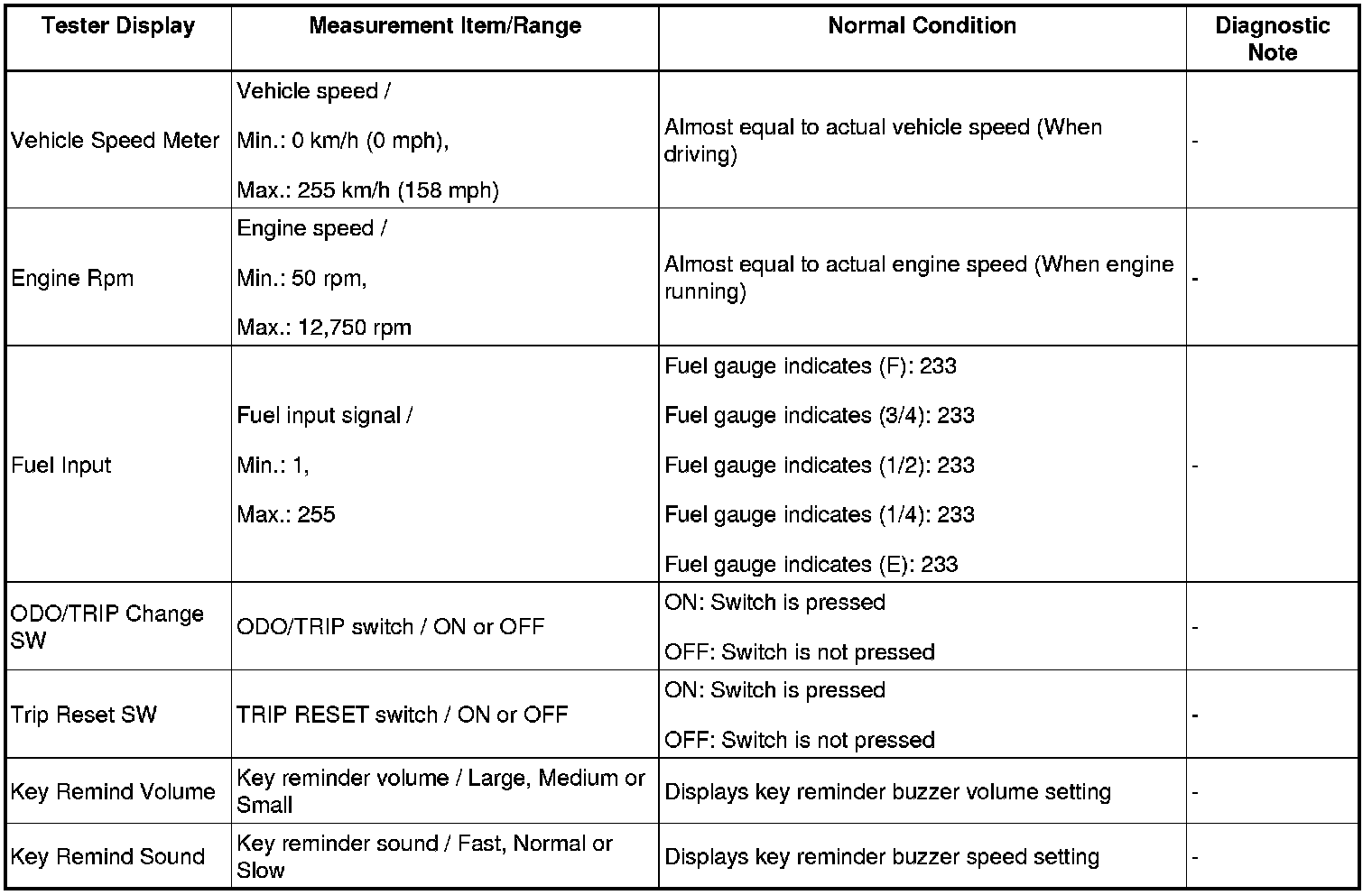

Combination Meter

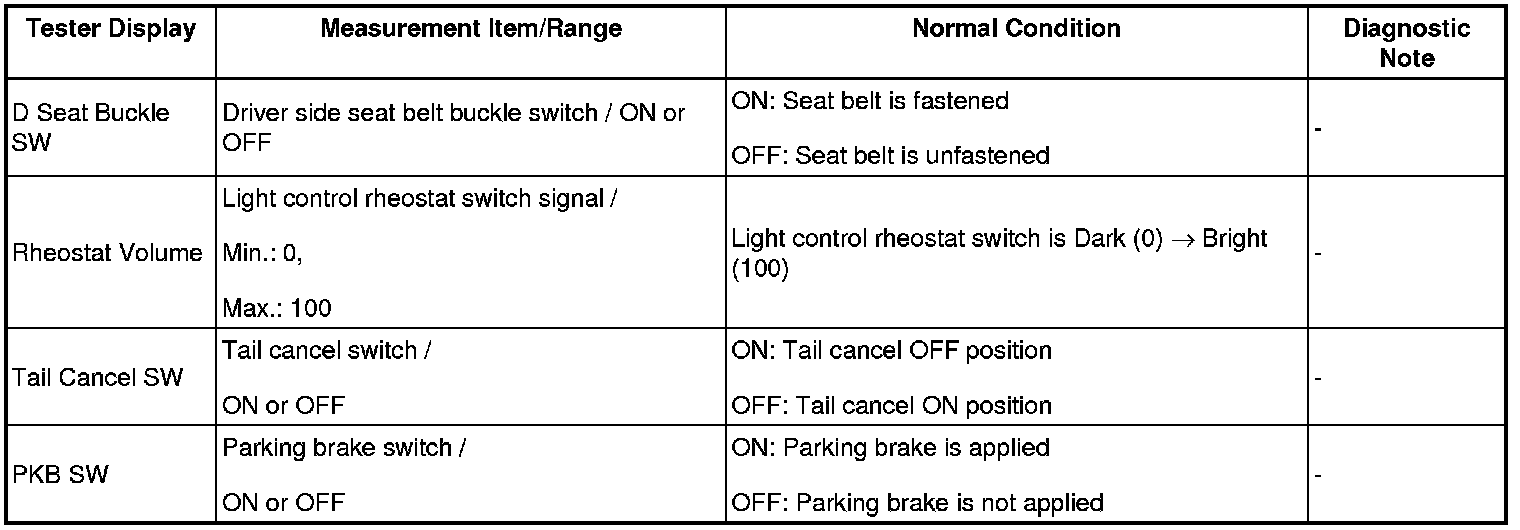

Body No.2

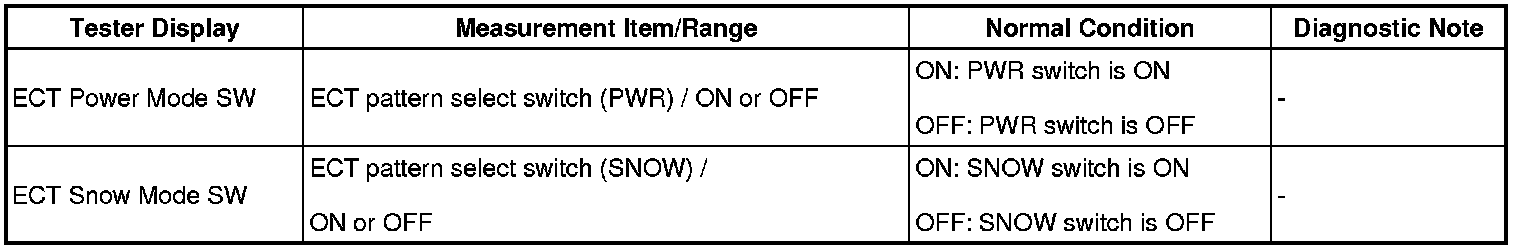

Body No.3





Driver Door





Passenger Door





2. PERFORM ACTIVE TEST
HINT: Performing the Techstream's Active Test allows relay, VSV actuator, and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time. The Date List can be displayed during the Active Test.

(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Perform the Active Test according to the display on the Techstream.

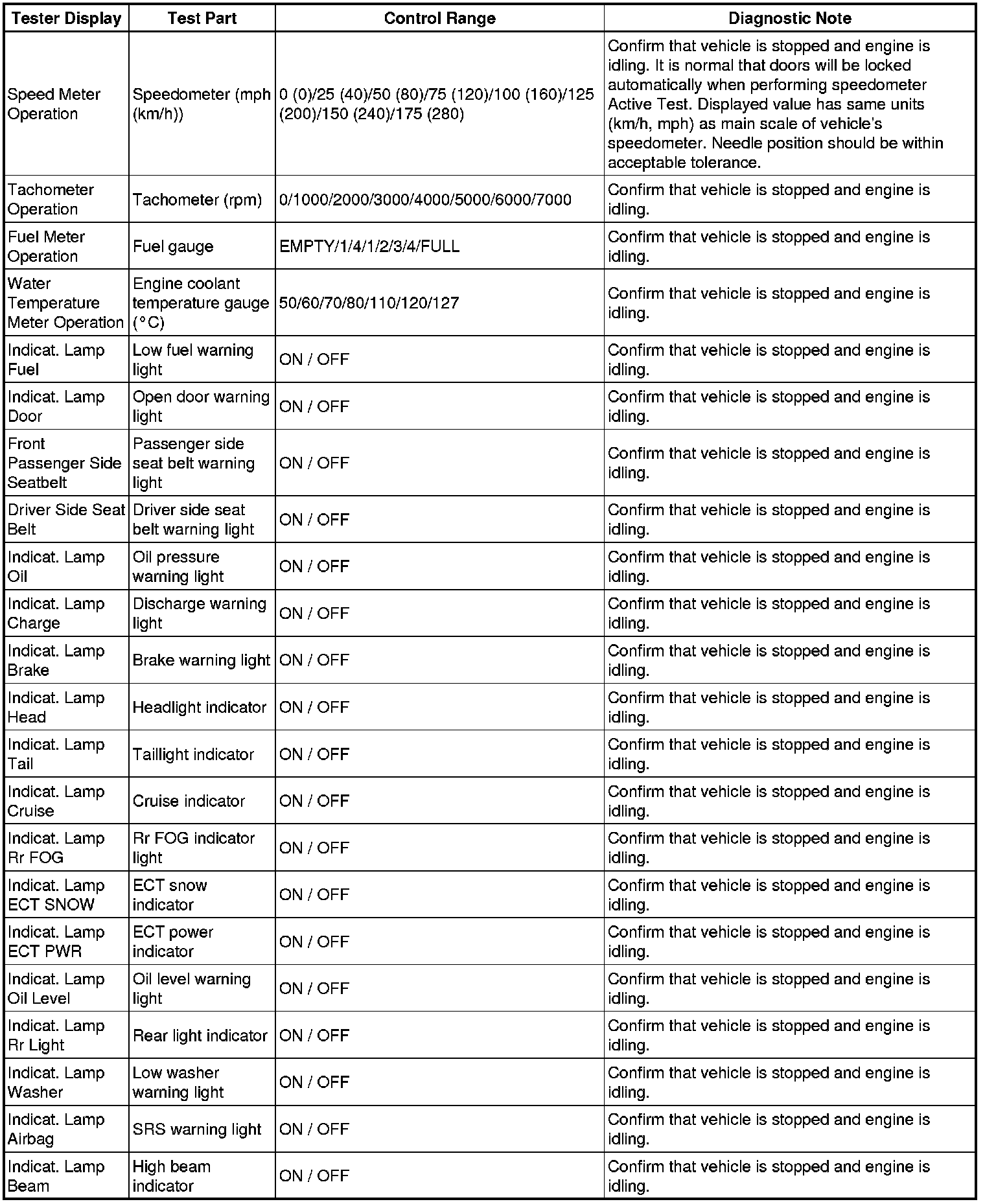

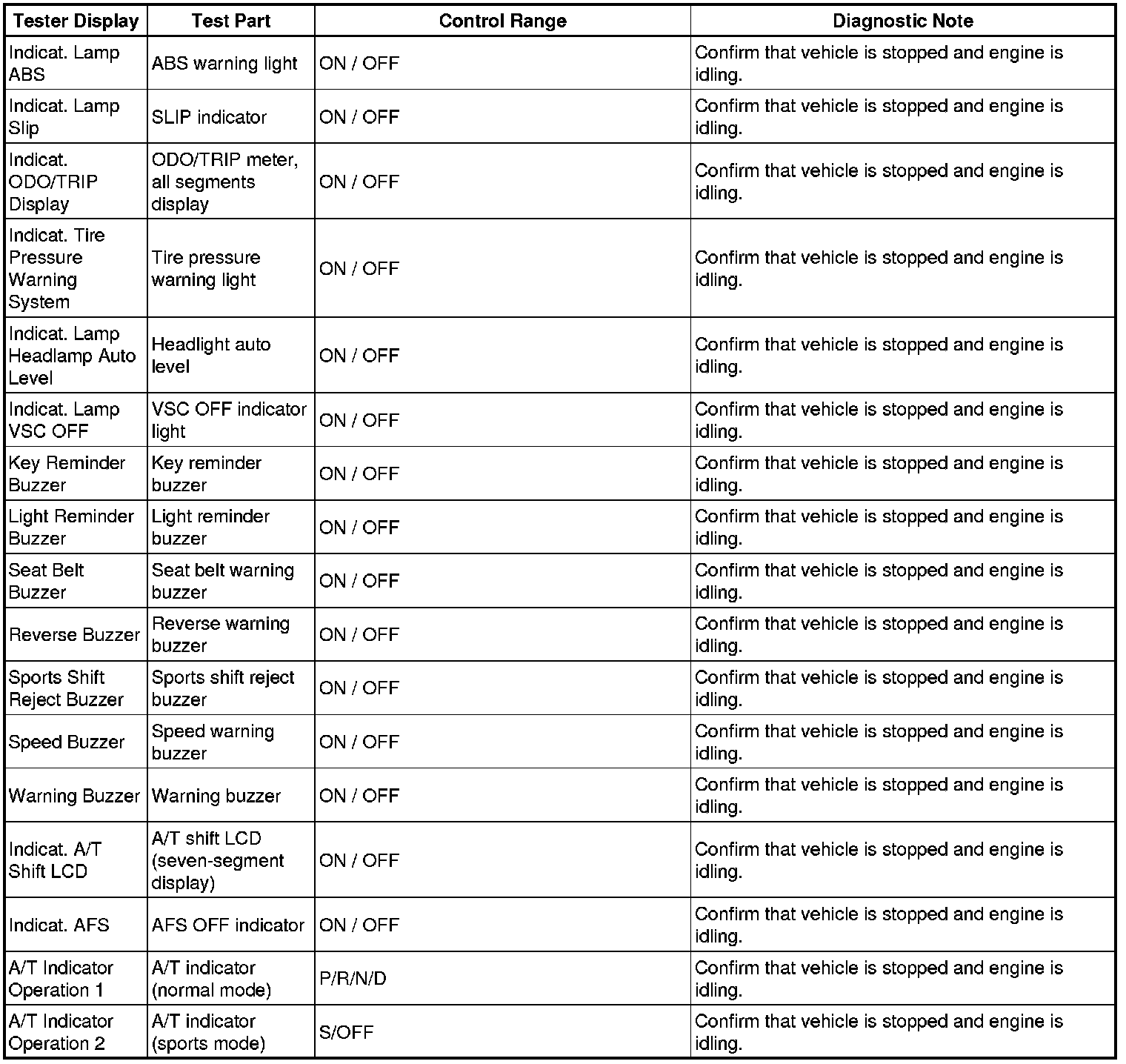

Combination Meter
