Reassembly








METER: COMBINATION METER: REASSEMBLY

REASSEMBLY

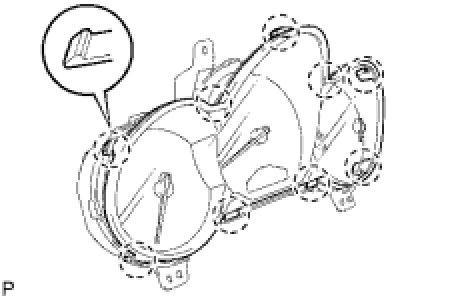

1. INSTALL COMBINATION METER GLASS
(a) Attach the 9 claws to install the glass.
