Home >> Lexus >> 2009 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Service and Repair >> Disassembly

Disassembly

METER: COMBINATION METER: DISASSEMBLY

DISASSEMBLY

1. REMOVE COMBINATION METER GLASS

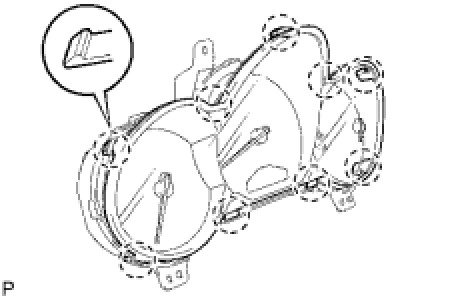

(a) Detach the 9 claws and remove the glass.
