System Description








METER: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. METER GAUGE WARNING LIGHT/INDICATOR

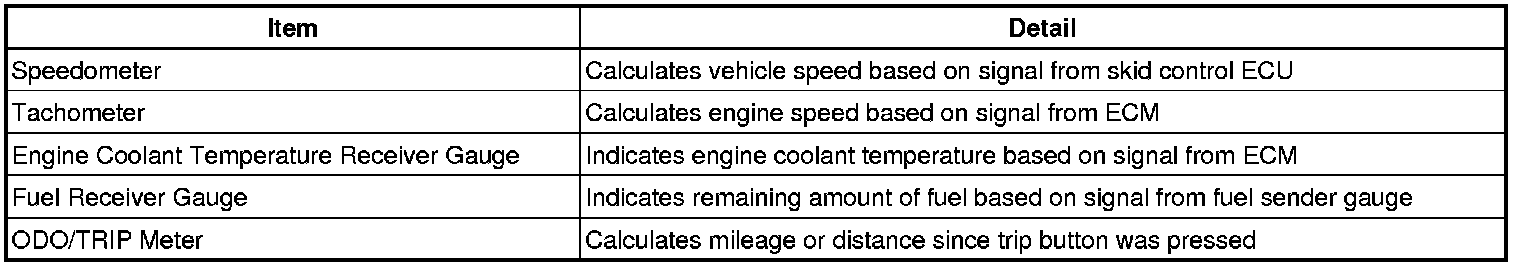

Gauge

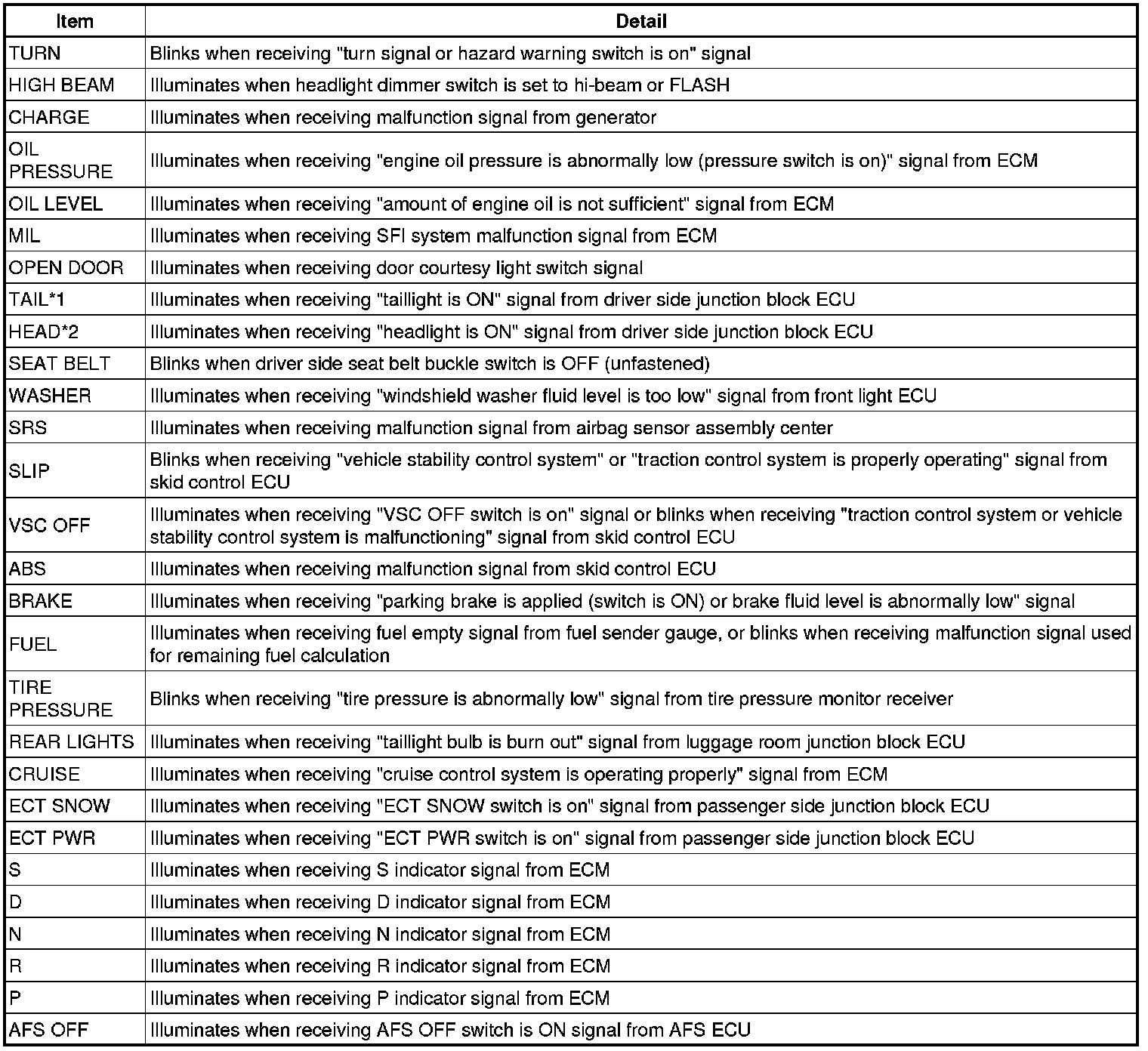

Warning Light/Indicator





HINT:
*1: w/ Taillight
*2: w/ Headlight
