System Diagram

AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAM

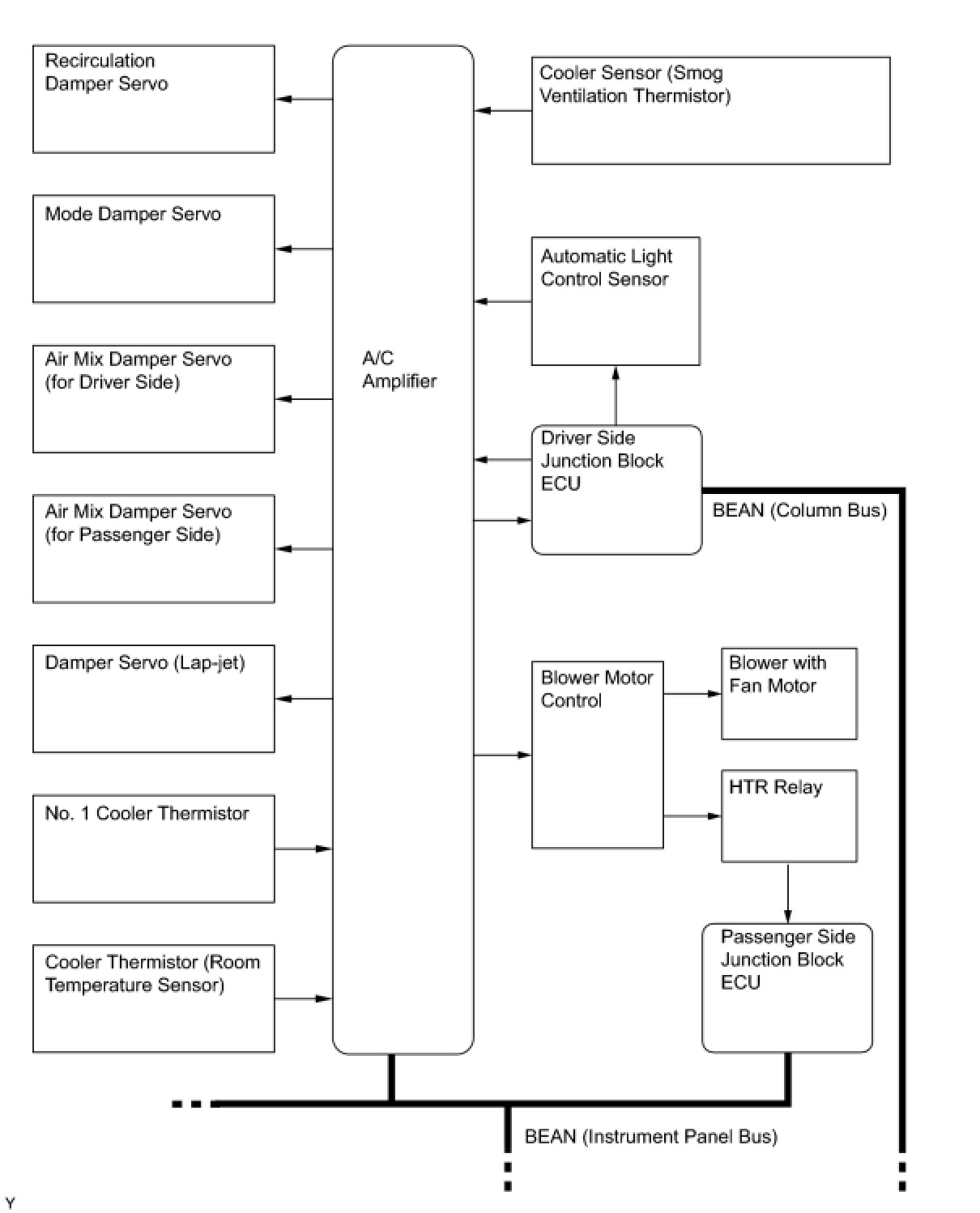

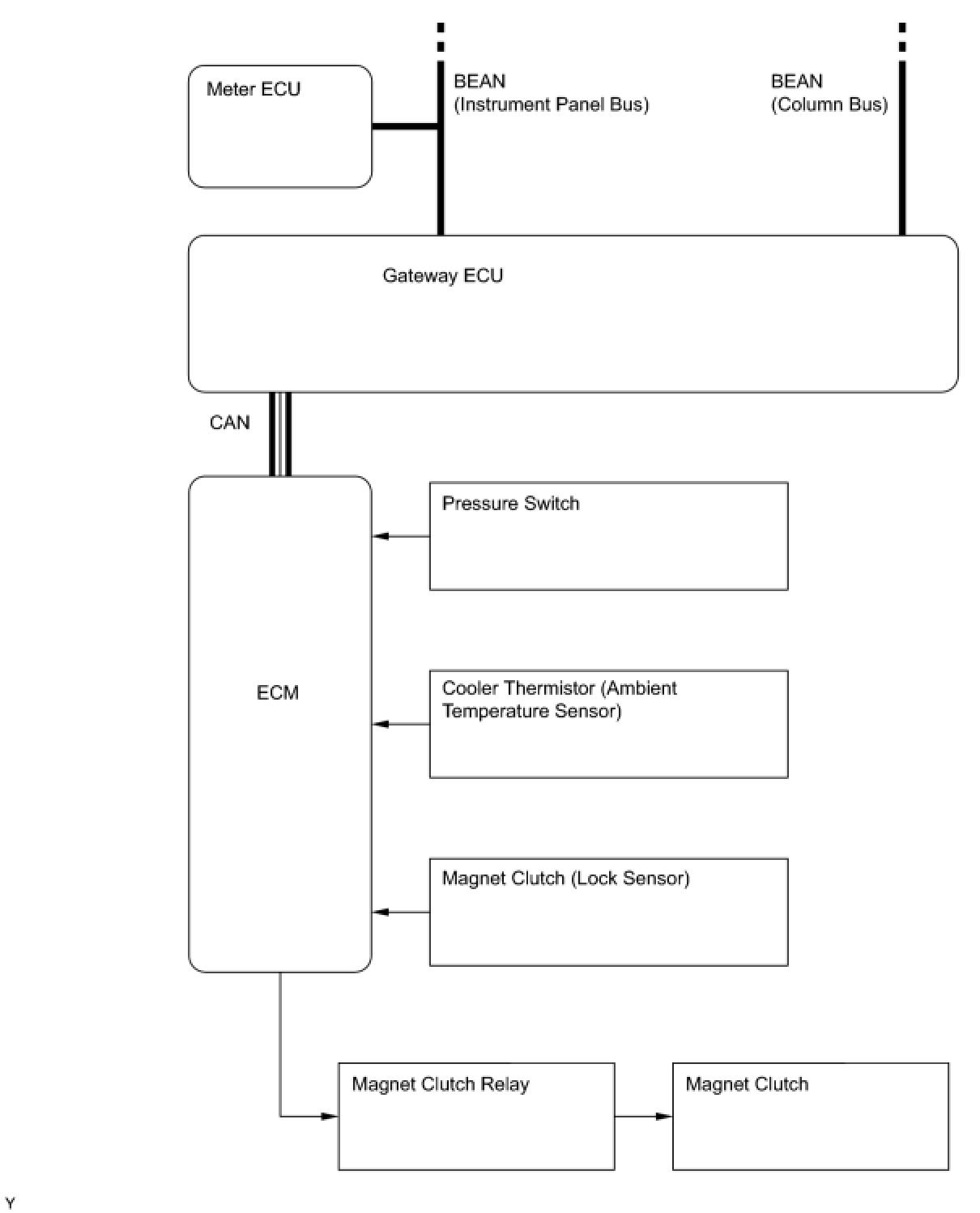

SYSTEM DIAGRAM

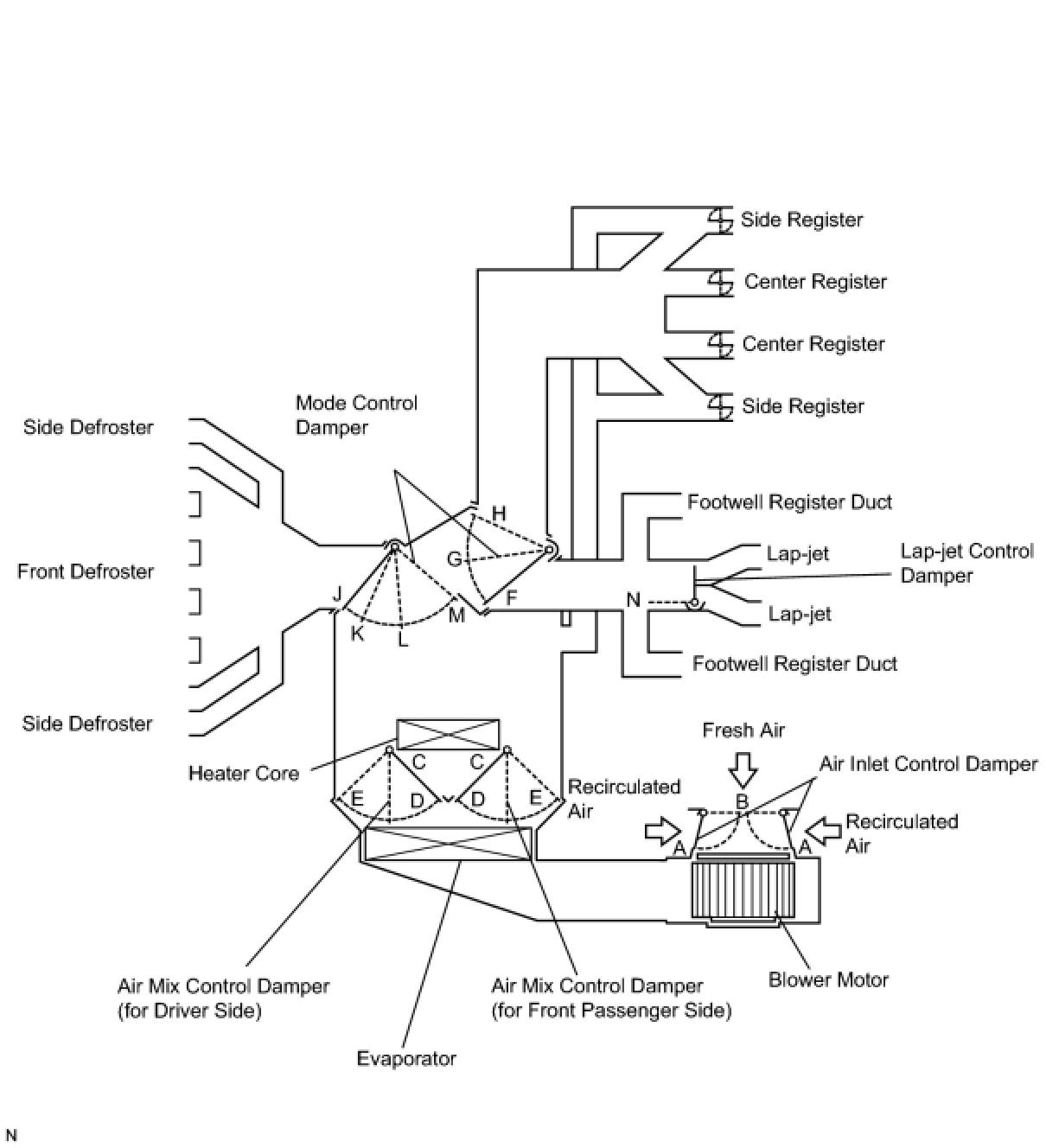

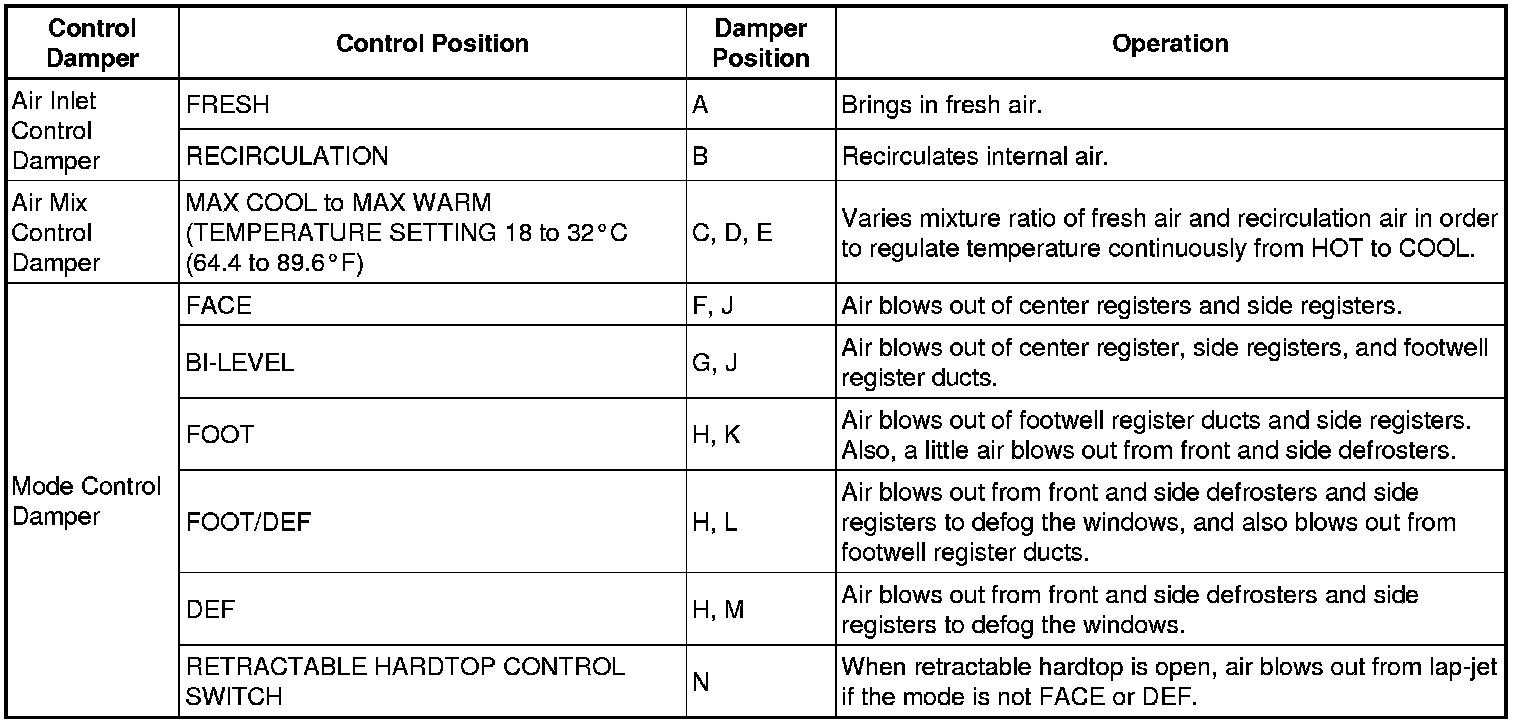

1. MODE POSITION AND DAMPER OPERATION

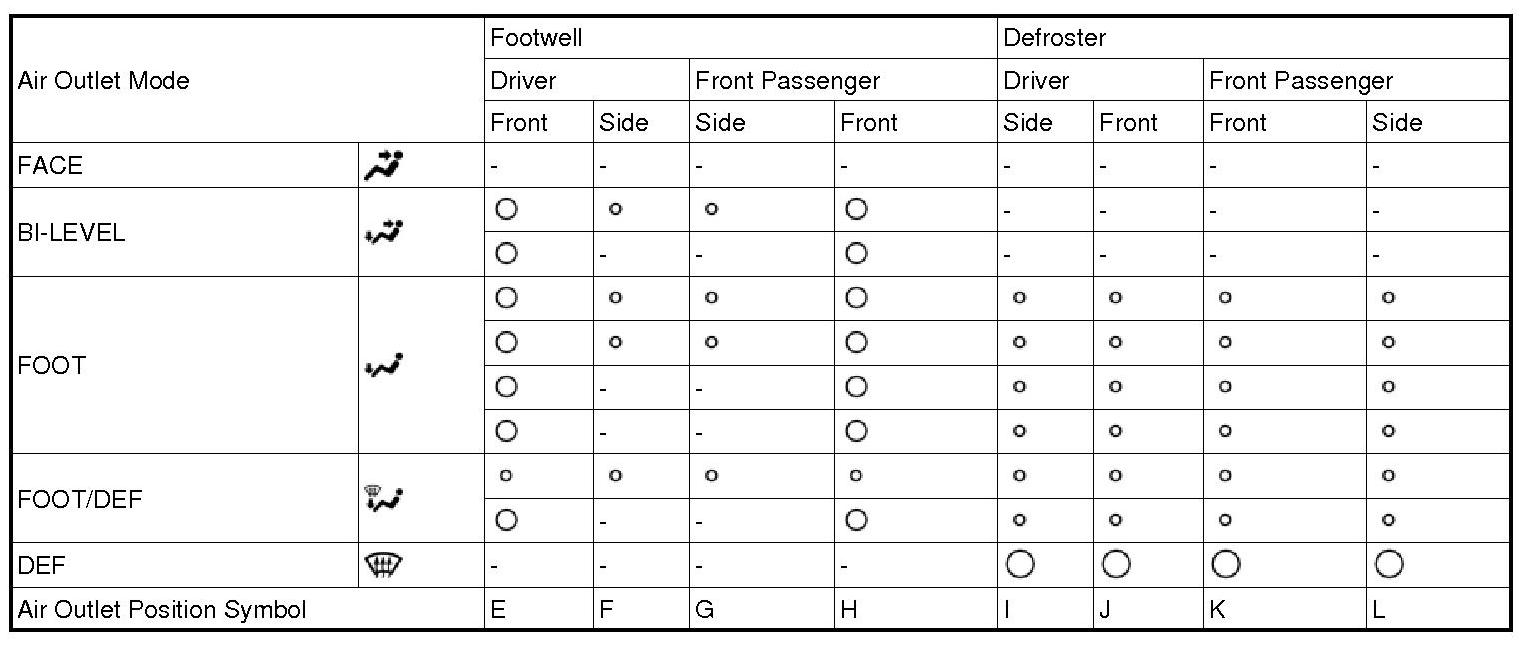

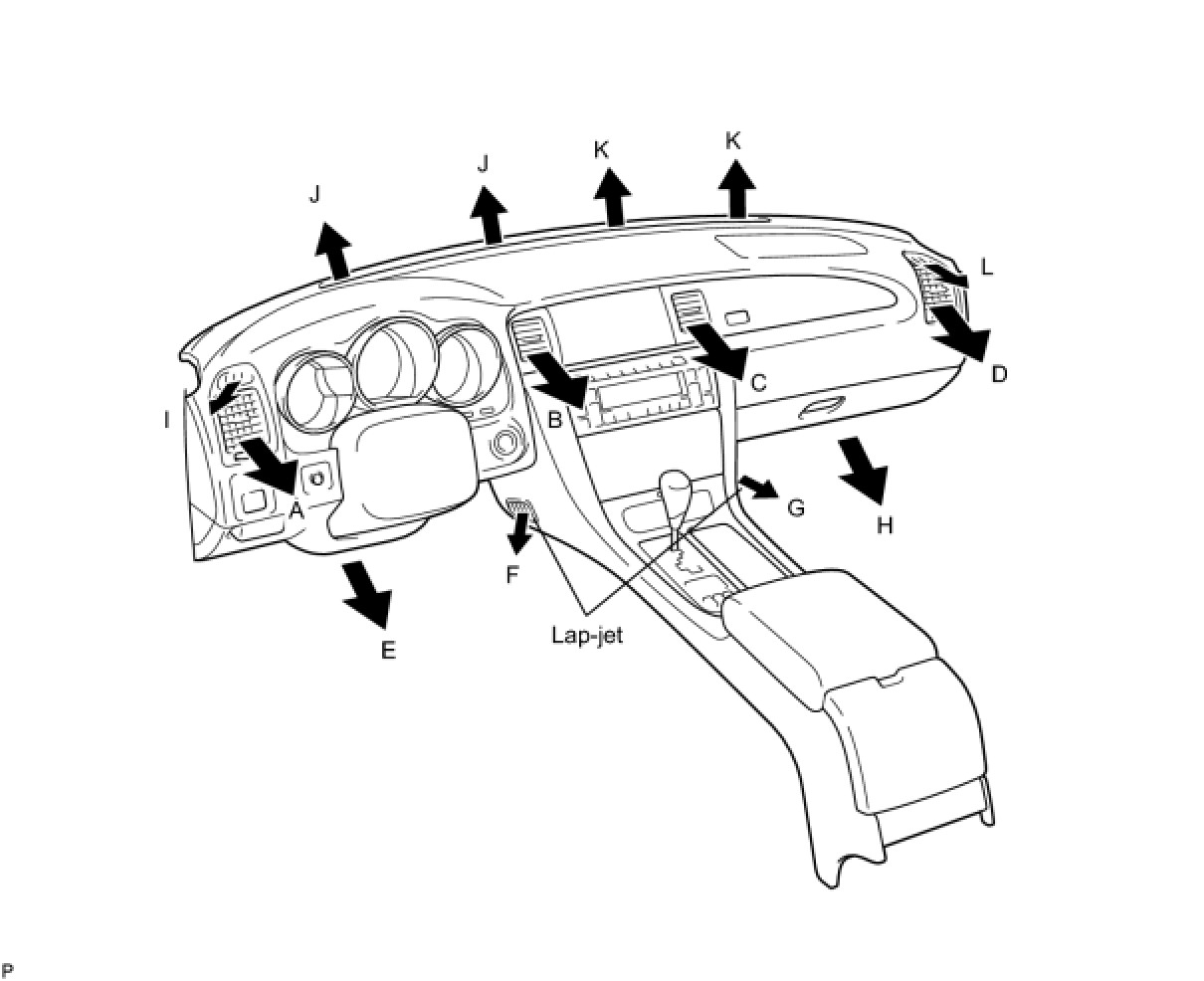

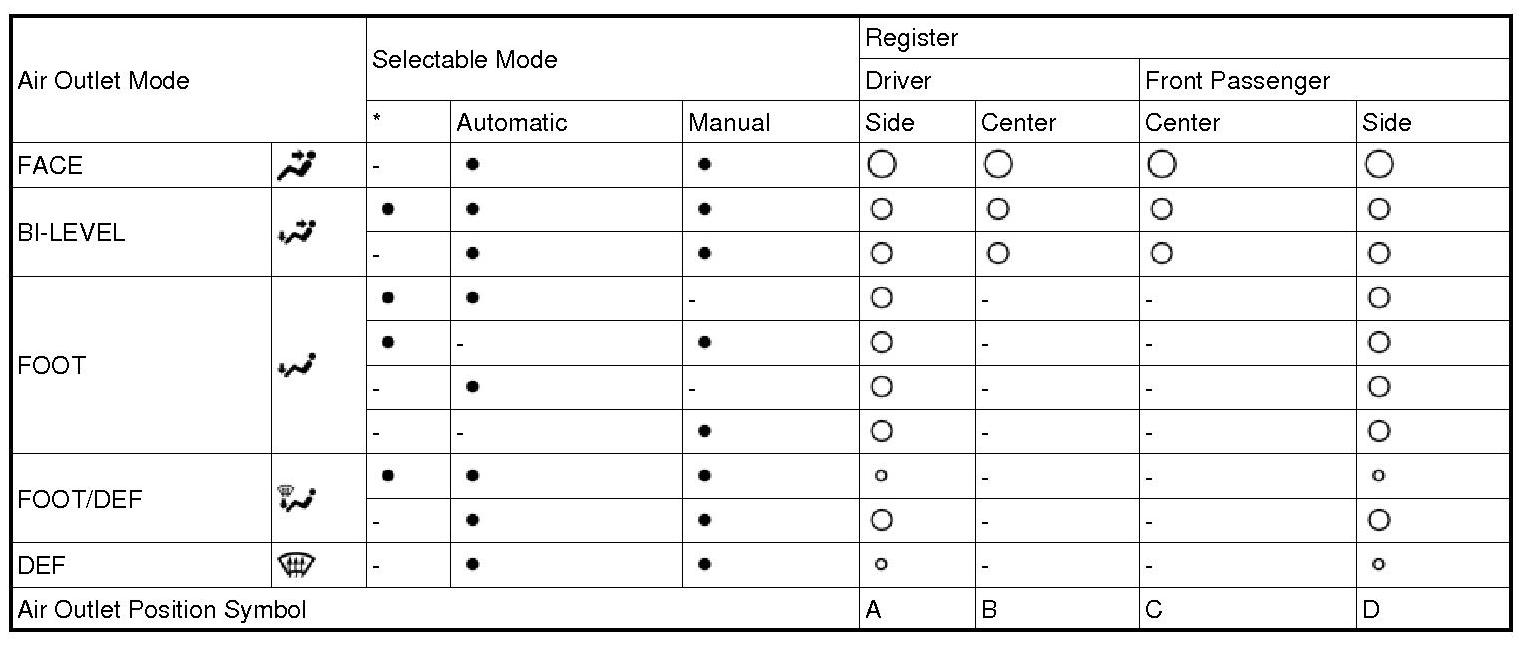

2. AIR OUTLETS AND AIR VOLUME RATIONS













HINT:
- ●: Available
- -: Not available
- The size of the white circle indicates the proportion of the airflow volume. There are 3 sizes.
- *: When the retractable hardtop is opened.
