Disassembly

AIR CONDITIONING: AIR CONDITIONING PANEL: DISASSEMBLY

DISASSEMBLY

1. REMOVE CONSOLE UPPER PANEL GARNISH FRONT

(a) Remove the 2 screws.
(b) Using a screwdriver, detach the 2 claws and remove the panel garnish from the A/C control.
HINT: Tape the screwdriver tip before use.

2. REMOVE HEATER CONTROL HOUSING

(a) Remove the 6 screws.

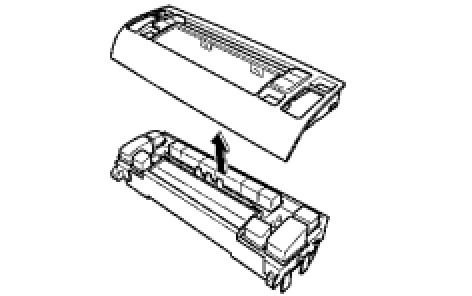

(b) Using a screwdriver, detach the 4 claws. Then separate the heater control housing.
HINT: Tape the screwdriver tip before use.

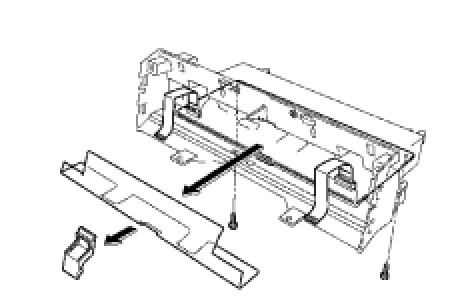

(a) Remove the 2 screws, cover plate and water protective sheet.

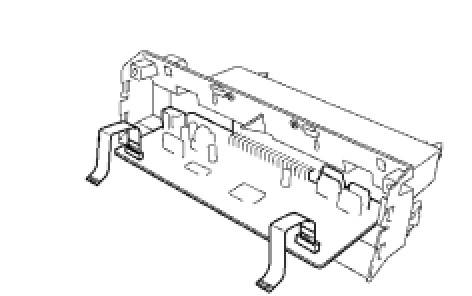

(b) Remove the A/C amplifier.

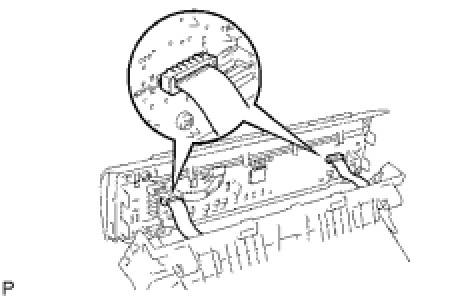

(c) Remove the 2 cooler wires.
4. REMOVE NO. 1 COOLER WIRE
(a) Remove the cooler wire from the control switch.
5. REMOVE HEATER CONTROL BASE SUB-ASSEMBLY
(a) Remove the 2 screws.

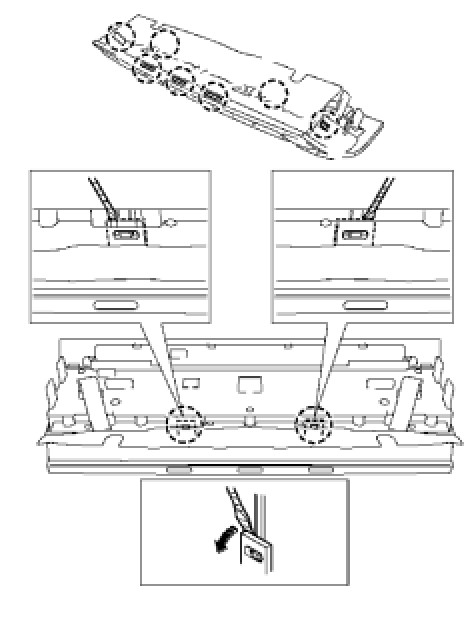

(b) Using a screwdriver, detach the 7 claws as shown in the illustration.
- Lift up the black film. Use the screwdriver to detach the claws labeled A in the illustration.
- Tape the screwdriver tip before use.

(c) Face the base upward as shown in the illustration.
(d) Slowly remove the base.
NOTE:
If the base is removed while it is facing down, the control knob may fall off.

6. INSTALL MULTI-DISPLAY JUNCTION BLOCK (w/ Navigation System)

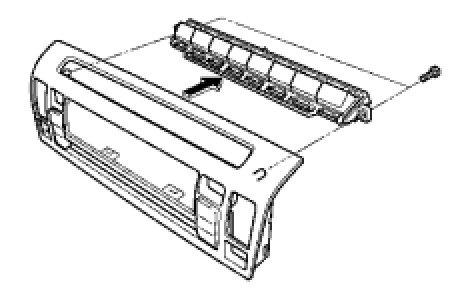

(a) Remove the 2 screws and multi-display junction block.
7. REMOVE HEATER CONTROL KNOB

(a) Remove the control knobs.
