Reassembly

AIR CONDITIONING: CONDENSER: REASSEMBLY

REASSEMBLY

1. INSTALL COOLER DRYER





(a) Using needle nose pliers, install the cooler dryer.

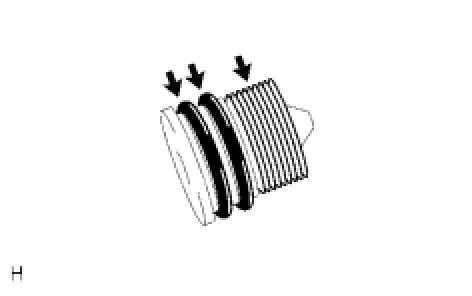

(b) Install 2 new O-rings to the cap.
(c) Sufficiently apply compressor oil to the contact surfaces of the O-ring and the cap.
Compressor oil:
ND-OIL 8 or equivalent
(d) Using a 10 mm hexagon wrench, install the cap to the condenser.
Torque: 12.3 Nm (125 kgf-cm, 9 ft-lbf)
