Disassembly

AIR CONDITIONING: CONDENSER: DISASSEMBLY

DISASSEMBLY

1. REMOVE COOLER DRYER

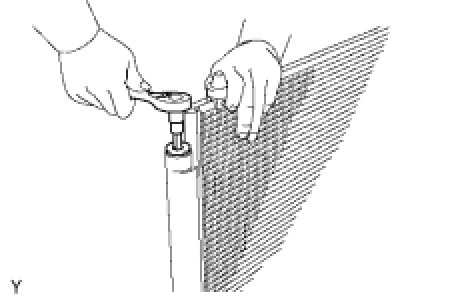

(a) Using a 10 mm hexagon wrench, remove the cap and filter from the modulator.
(b) Remove the 2 O-rings from the cap.

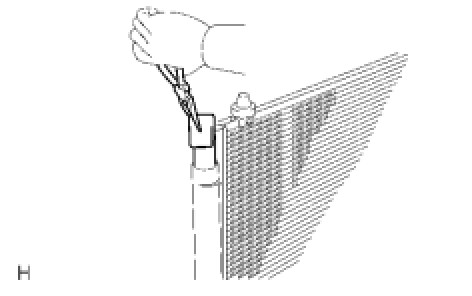

(c) Using needle nose pliers, remove the cooler dryer.
