AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH: INSPECTION

INSPECTION





1. INSPECT MAGNET CLUTCH ASSEMBLY (LOCK SENSOR)

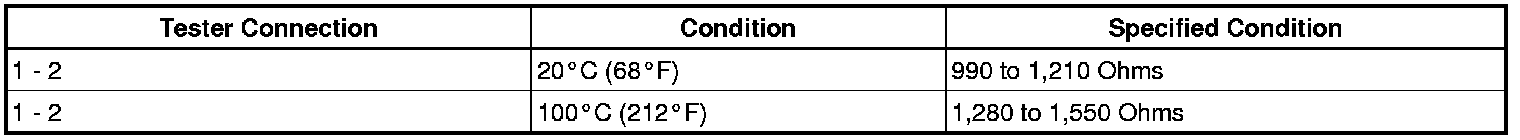

(a) Measure the resistance of the clutch.
Standard resistance:





If the result is not as specified, replace the clutch assembly.

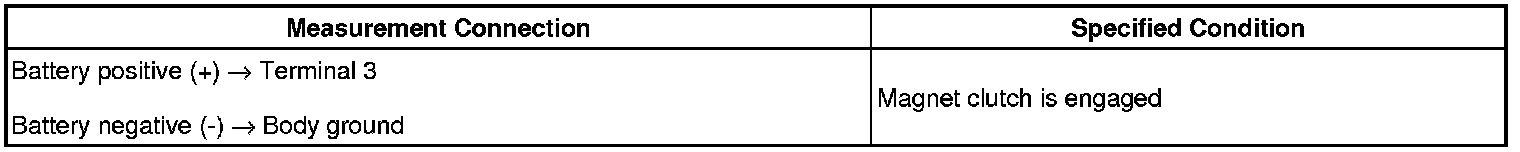

(b) Apply battery voltage to the clutch and check operation of the clutch.
OK:





If the result is not as specified, replace the clutch assembly.
