Reassembly

AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

REASSEMBLY

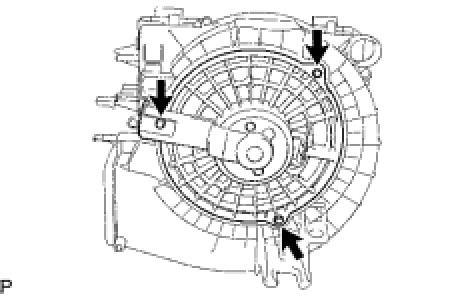

1. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY





(a) Install the blower w/ fan motor and the 3 screws.

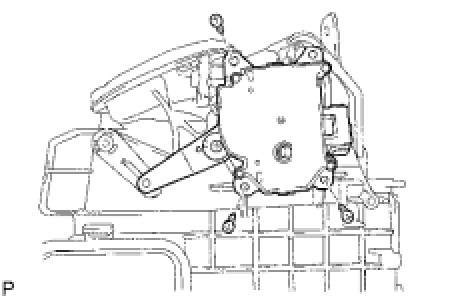

2. INSTALL RECIRCULATION DAMPER SERVO SUB-ASSEMBLY





(a) Install the recirculation damper servo and the 3 screws.
3. INSTALL AIR REFINER ELEMENT
(a) Install the air filter cover, air refiner element and frame.
