Relay Box

Center J/B Inner Circuit:

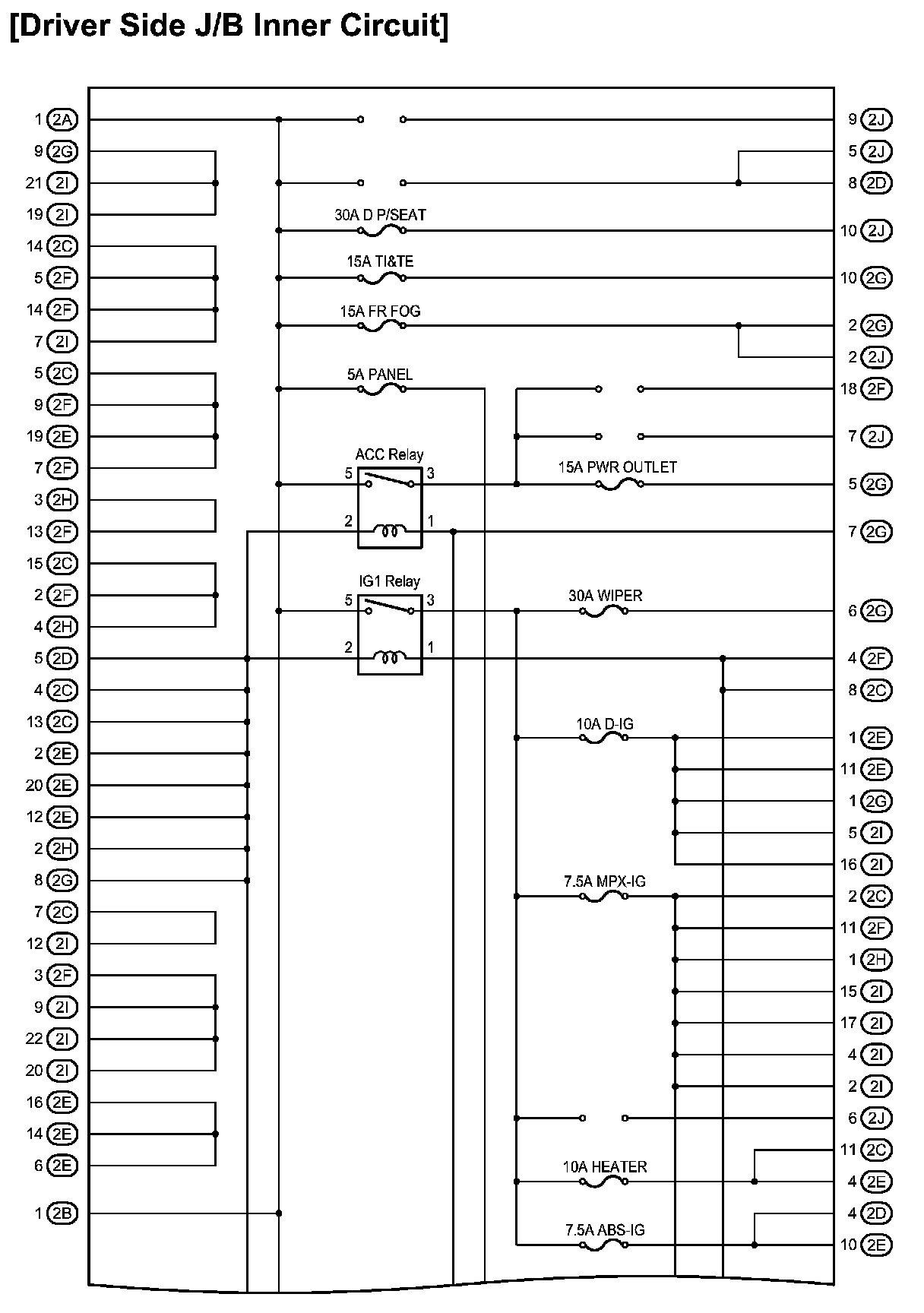

Driver Side J/B Inner Circuit:

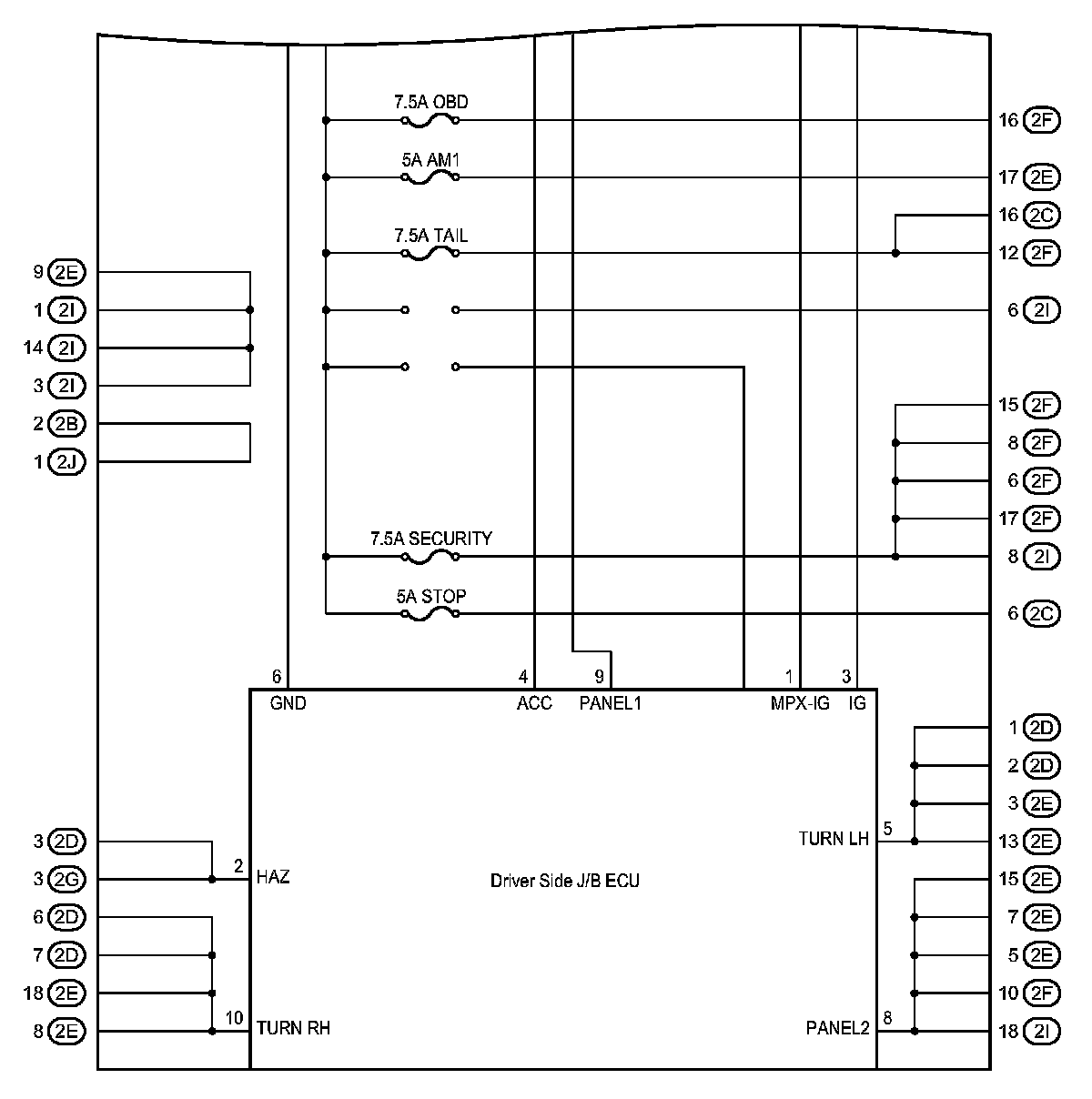

Driver Side J/B Inner Circuit:

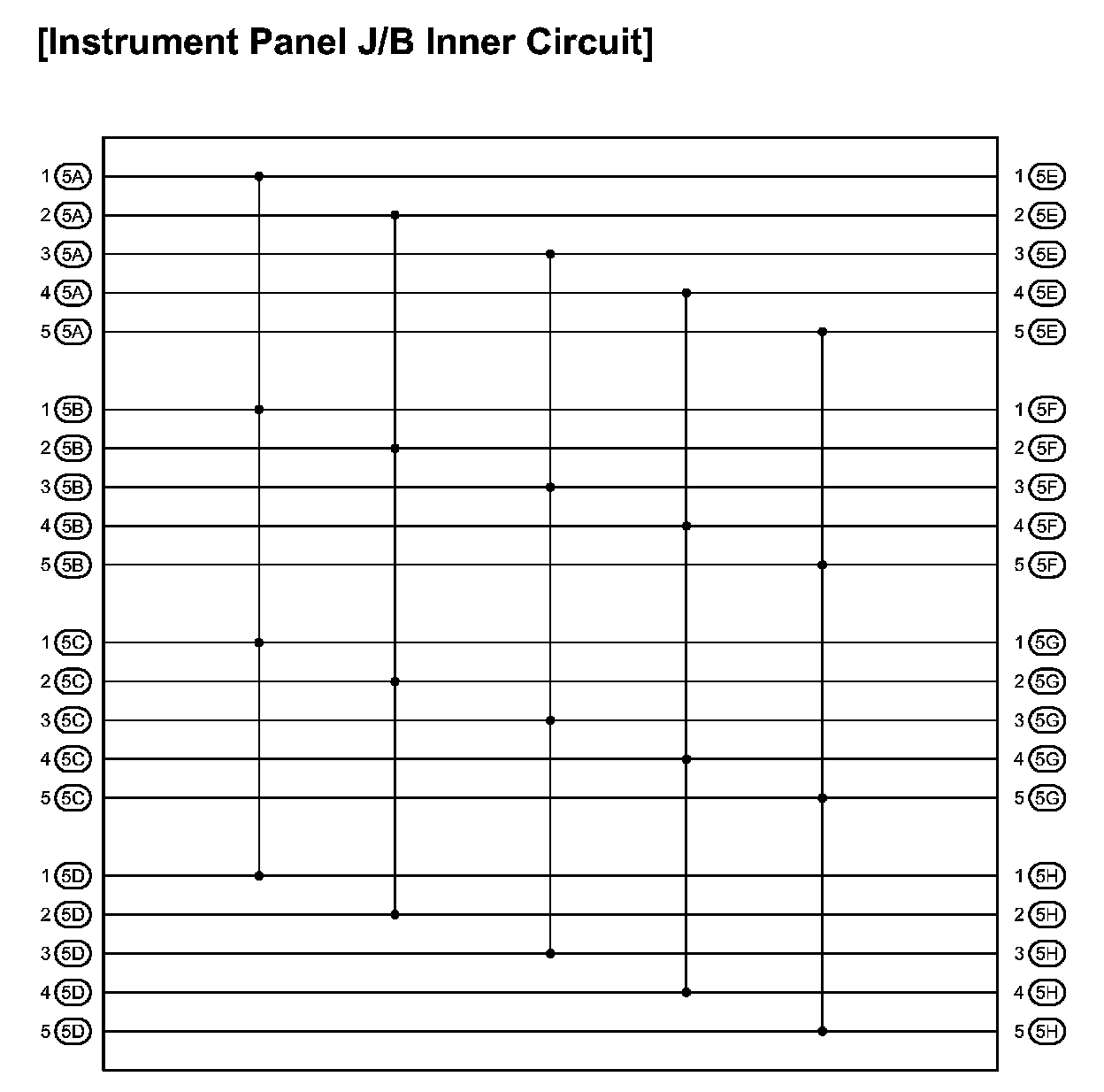

Instrument Panel J/B Inner Circuit:

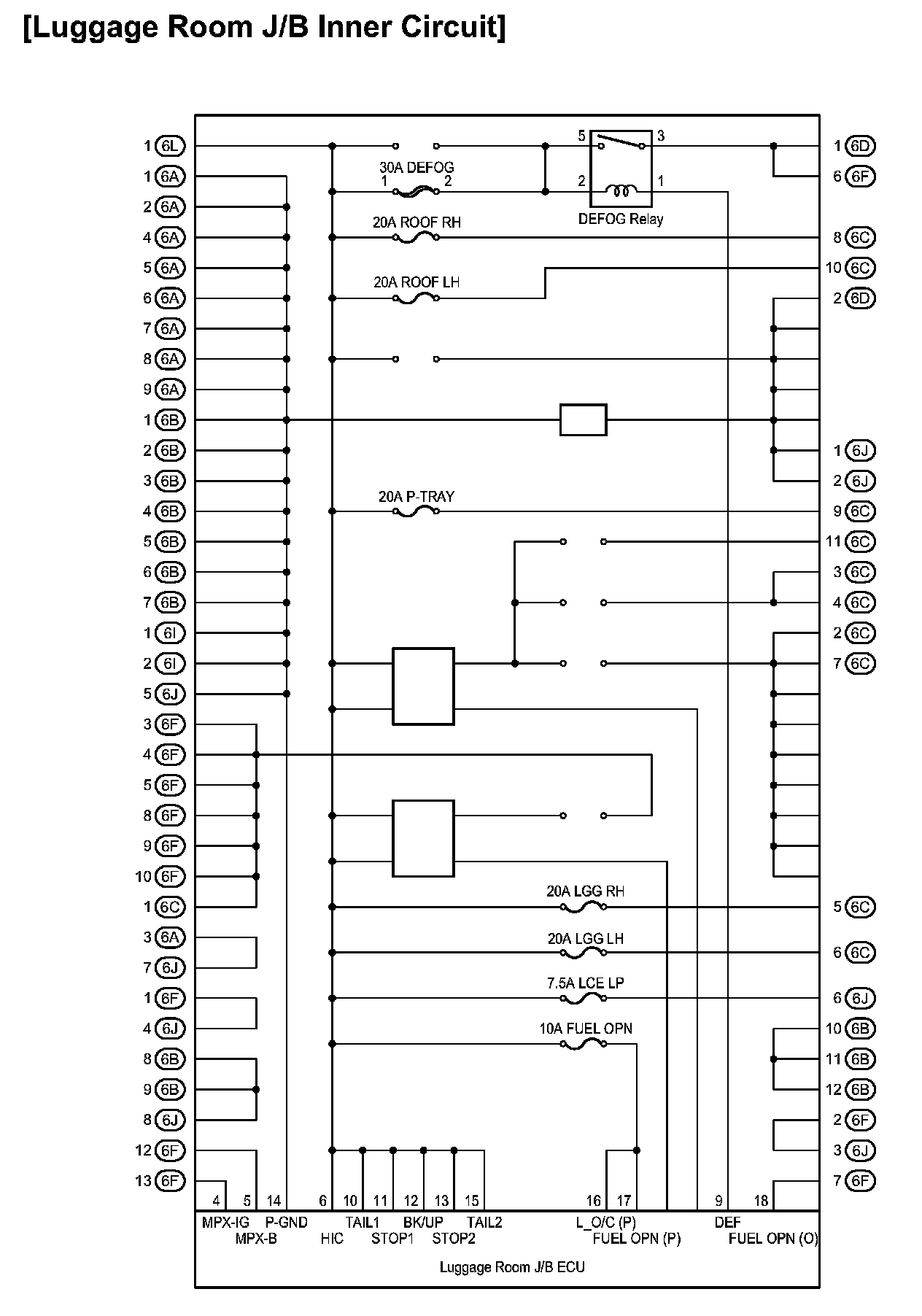

Luggage Room J/B Inner Circuit:

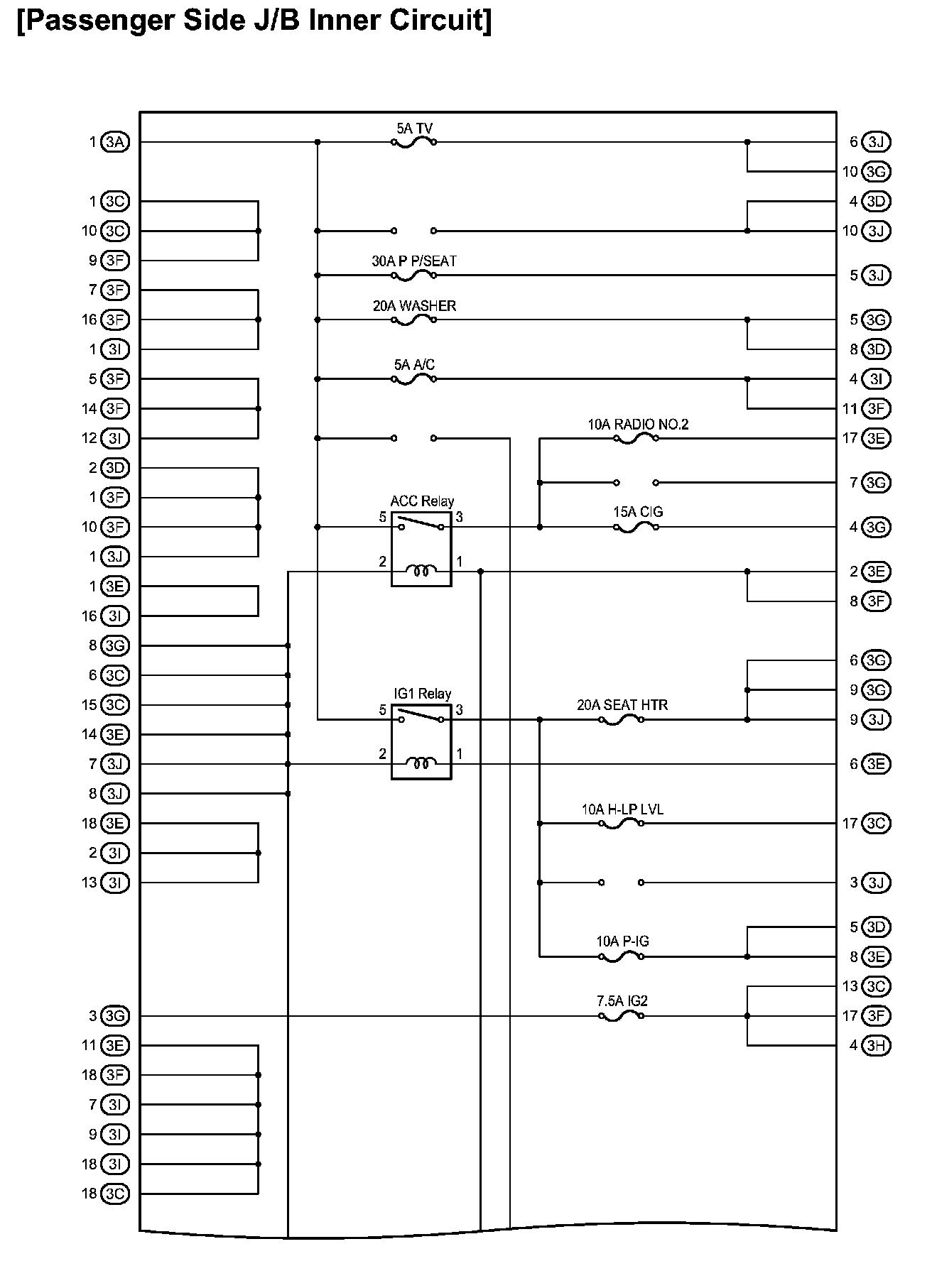

Passenger Side J/B Inner Circuit:

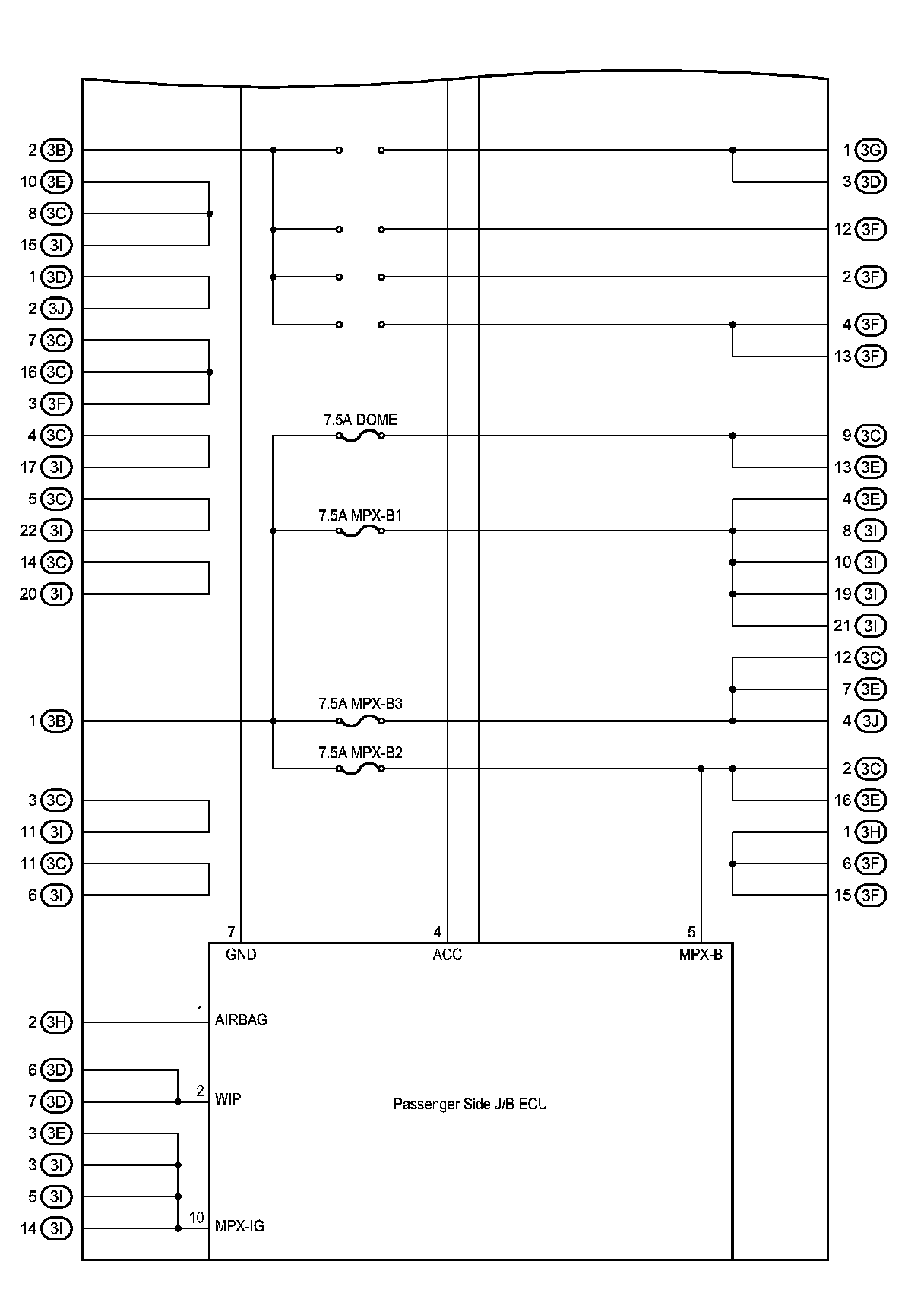

Passenger Side J/B Inner Circuit:
