Navigation System

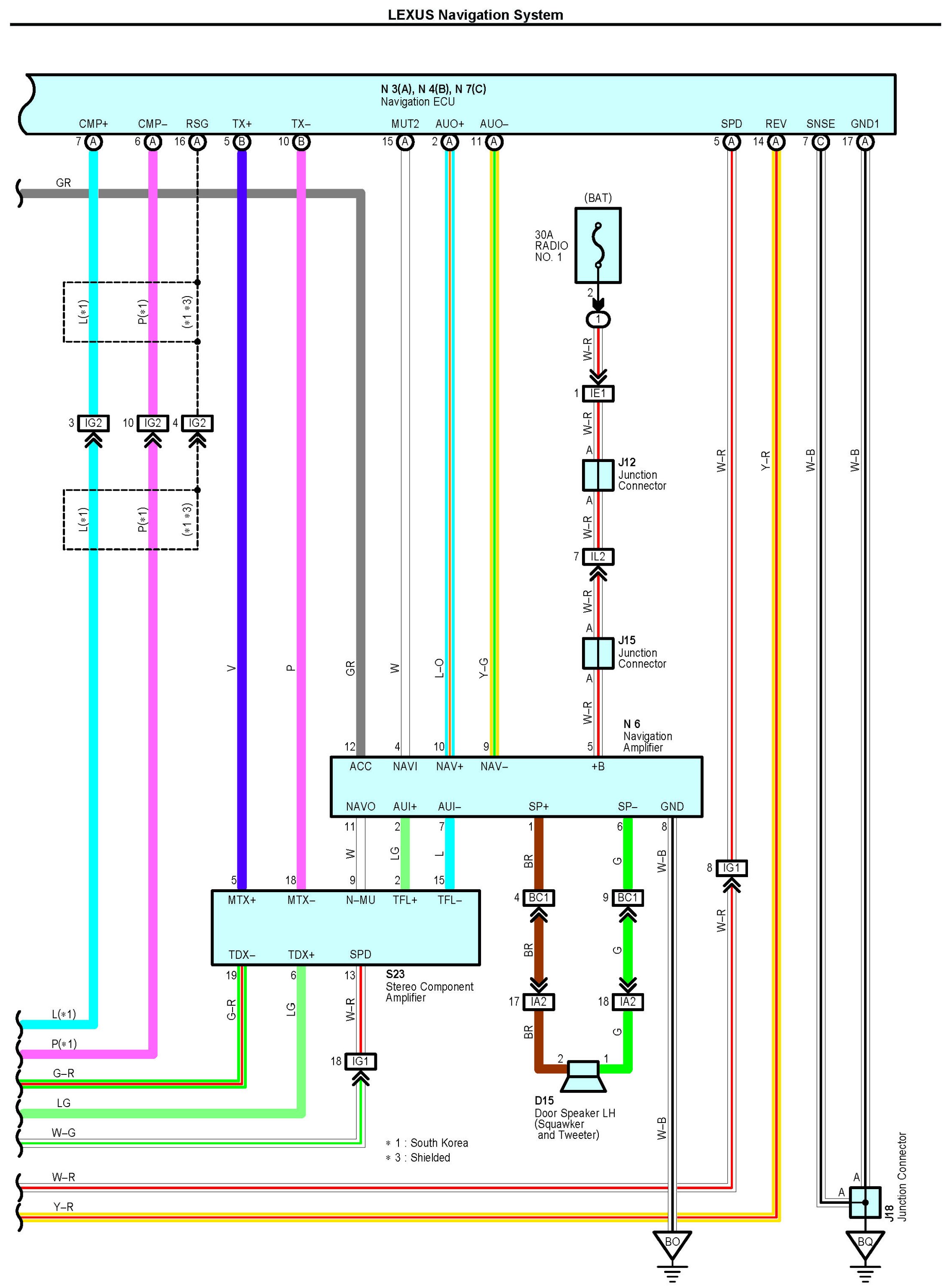

LEXUS Navigation System Part 1:

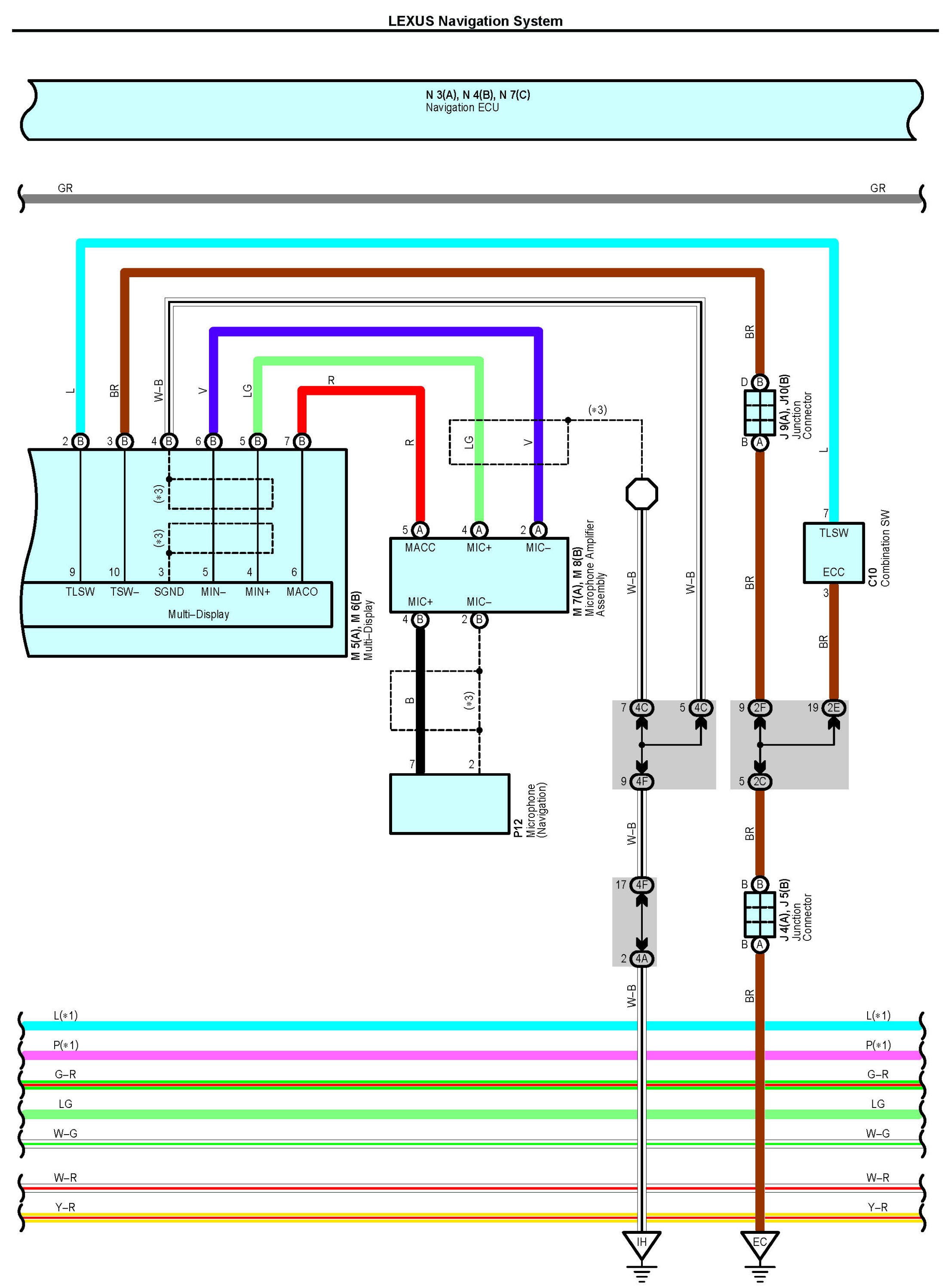

LEXUS Navigation System Part 2:

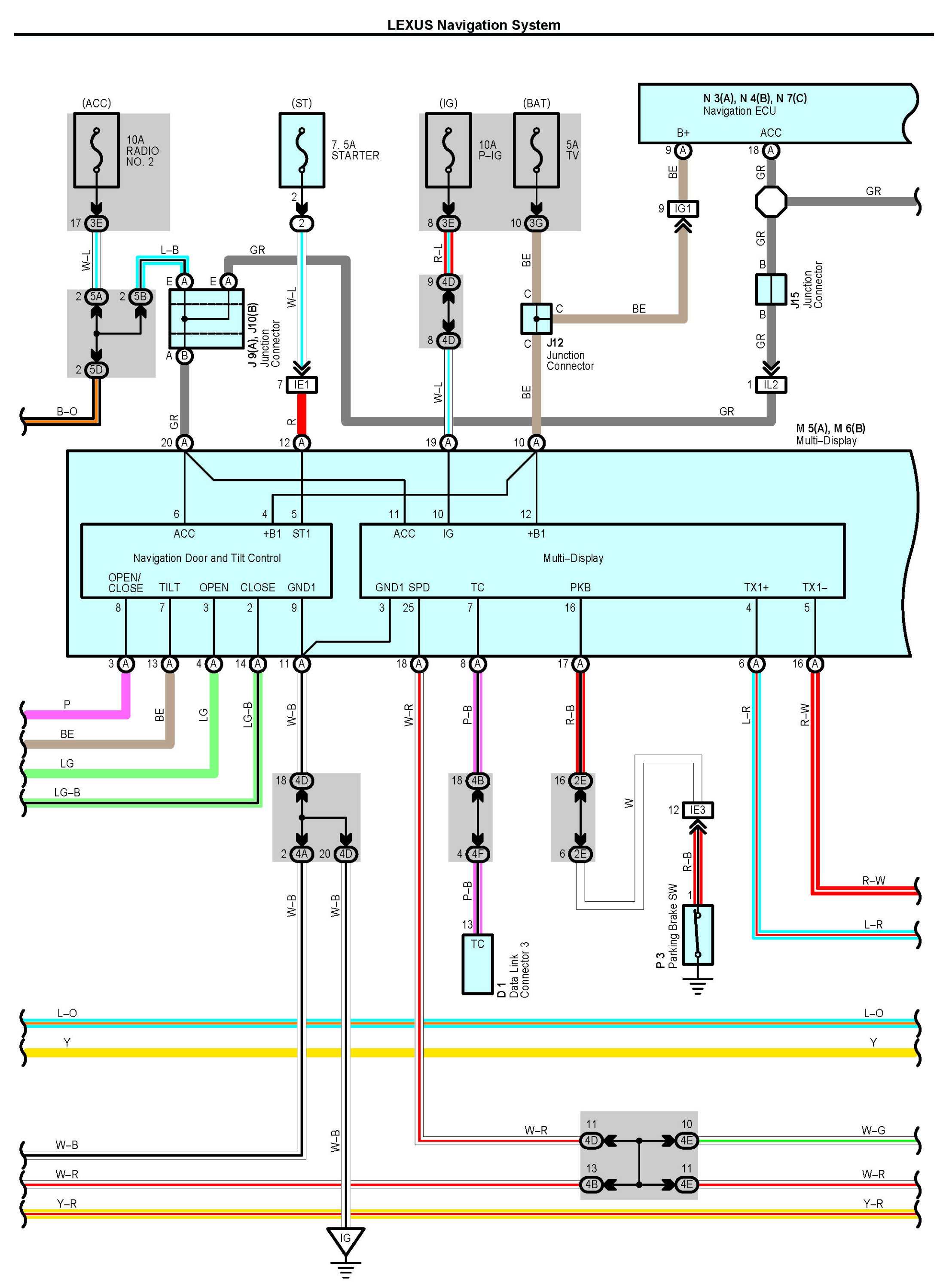

LEXUS Navigation System Part 3:

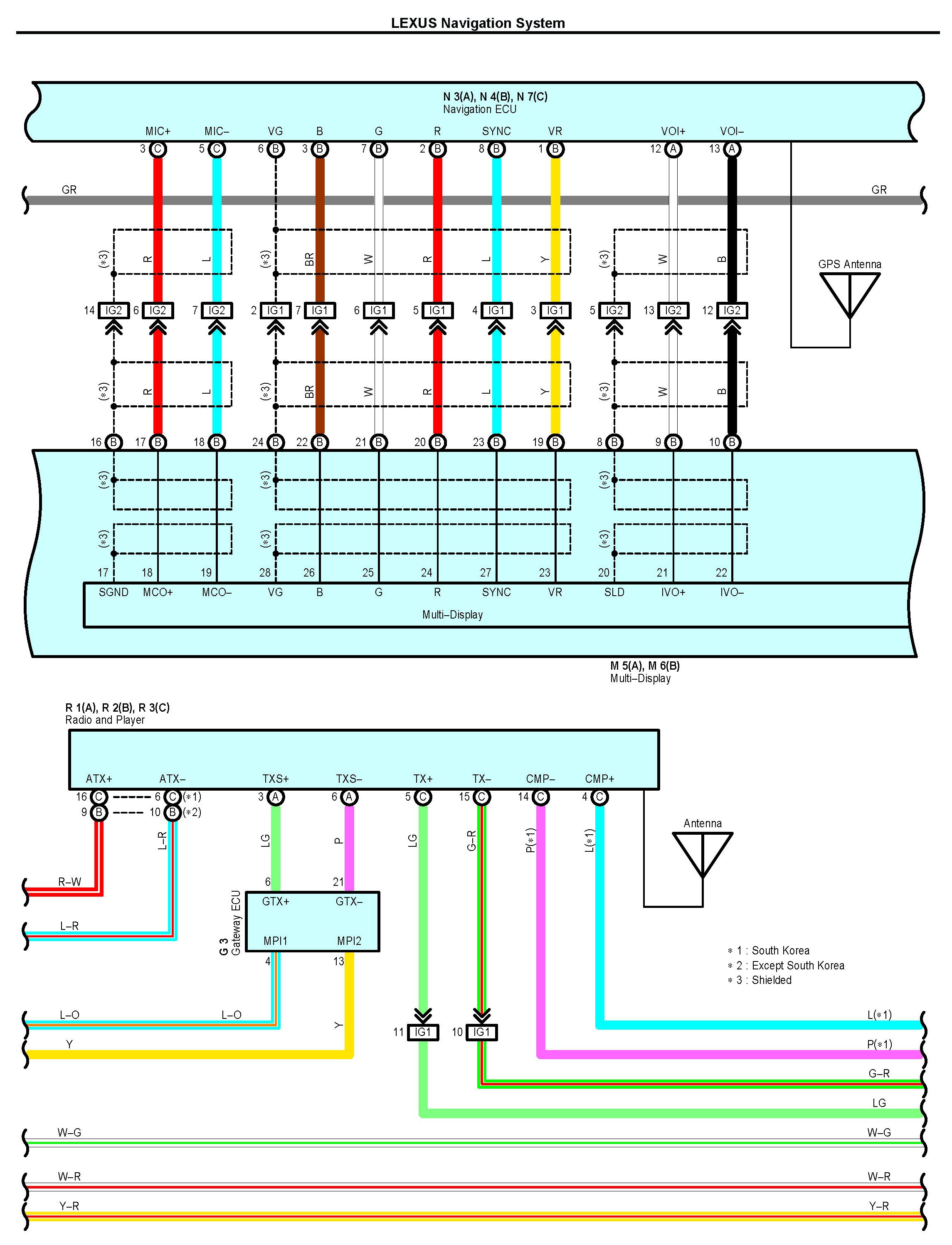

LEXUS Navigation System Part 4:

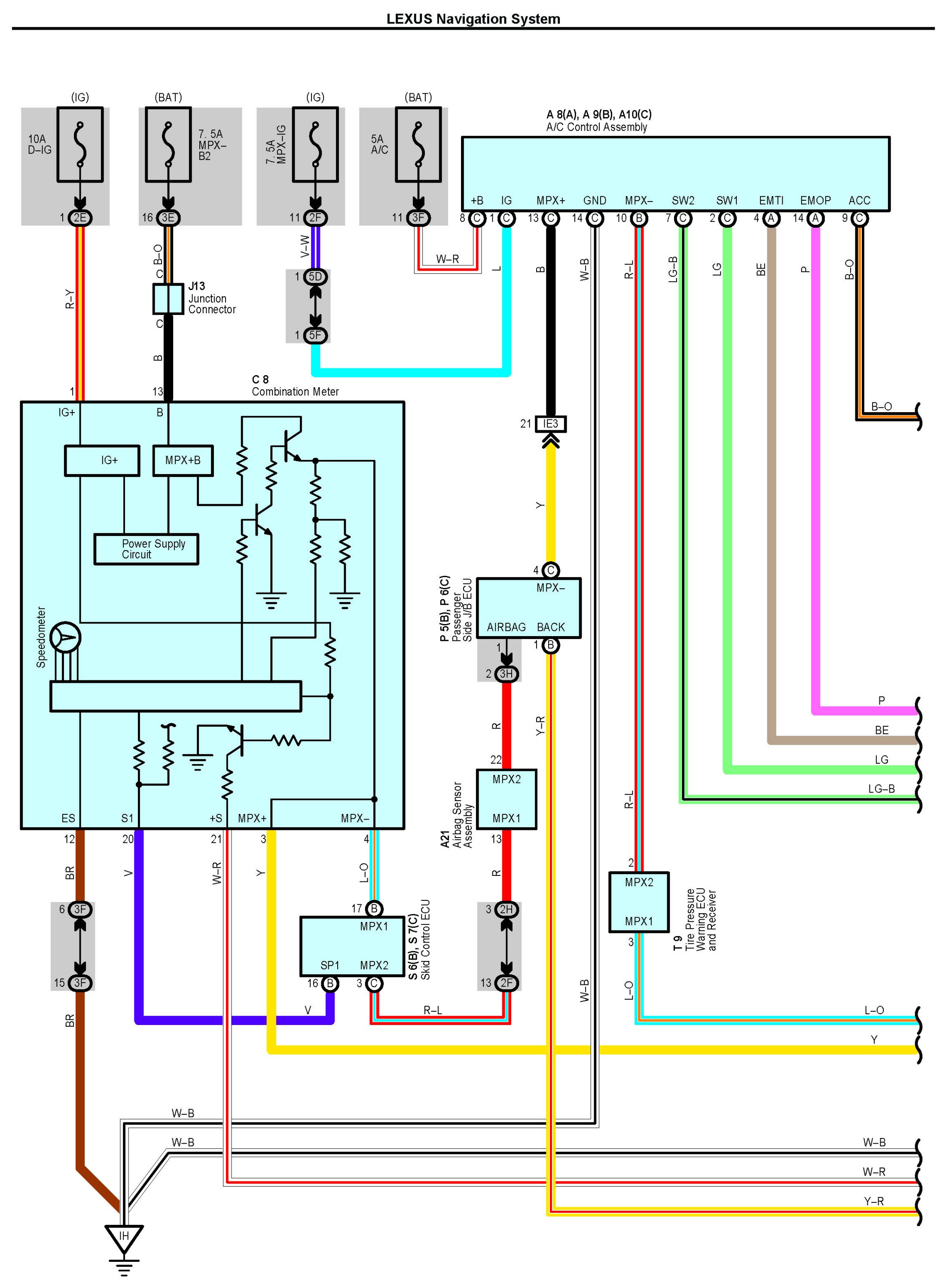

LEXUS Navigation System Part 5:

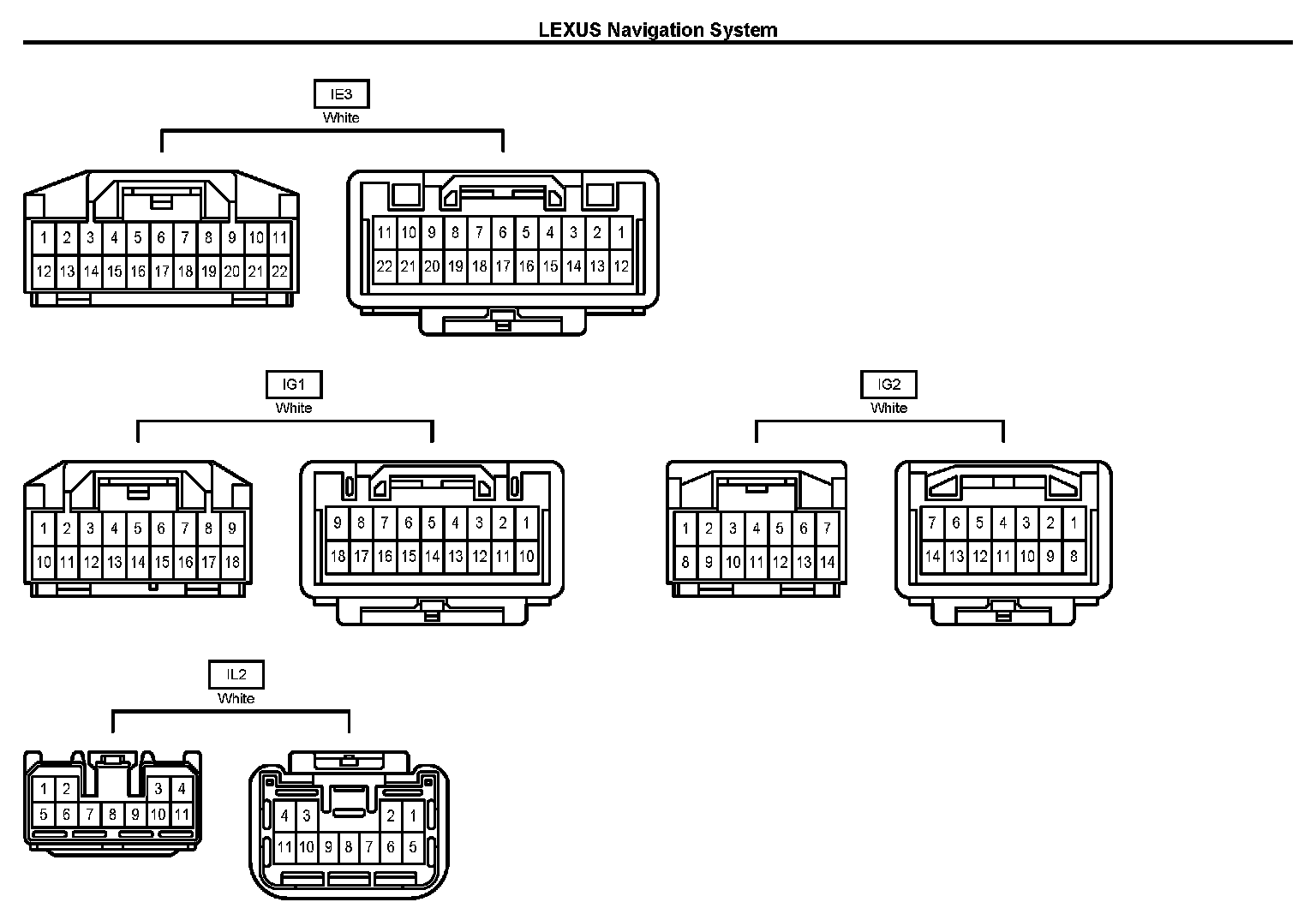

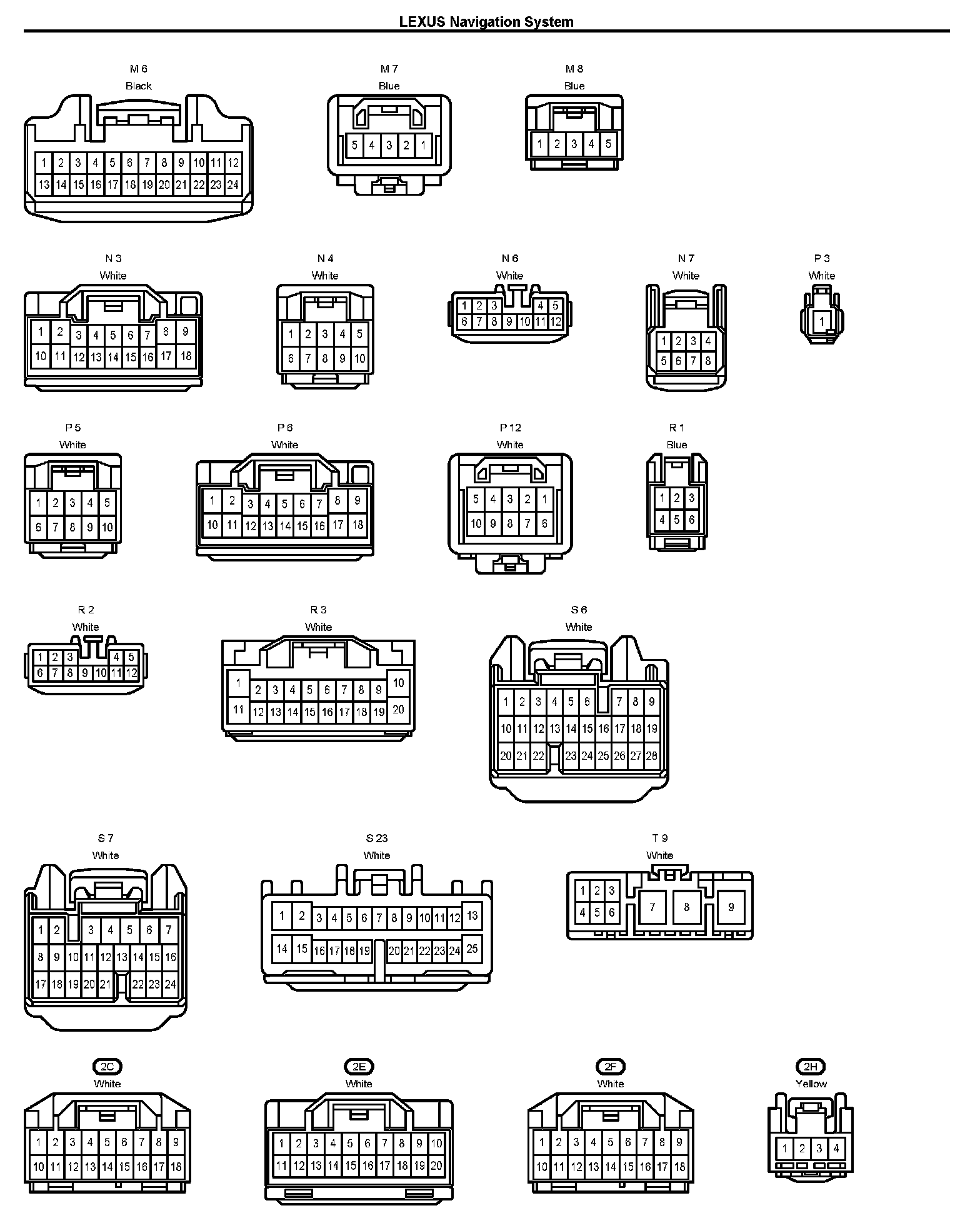

Connectors Part 1:

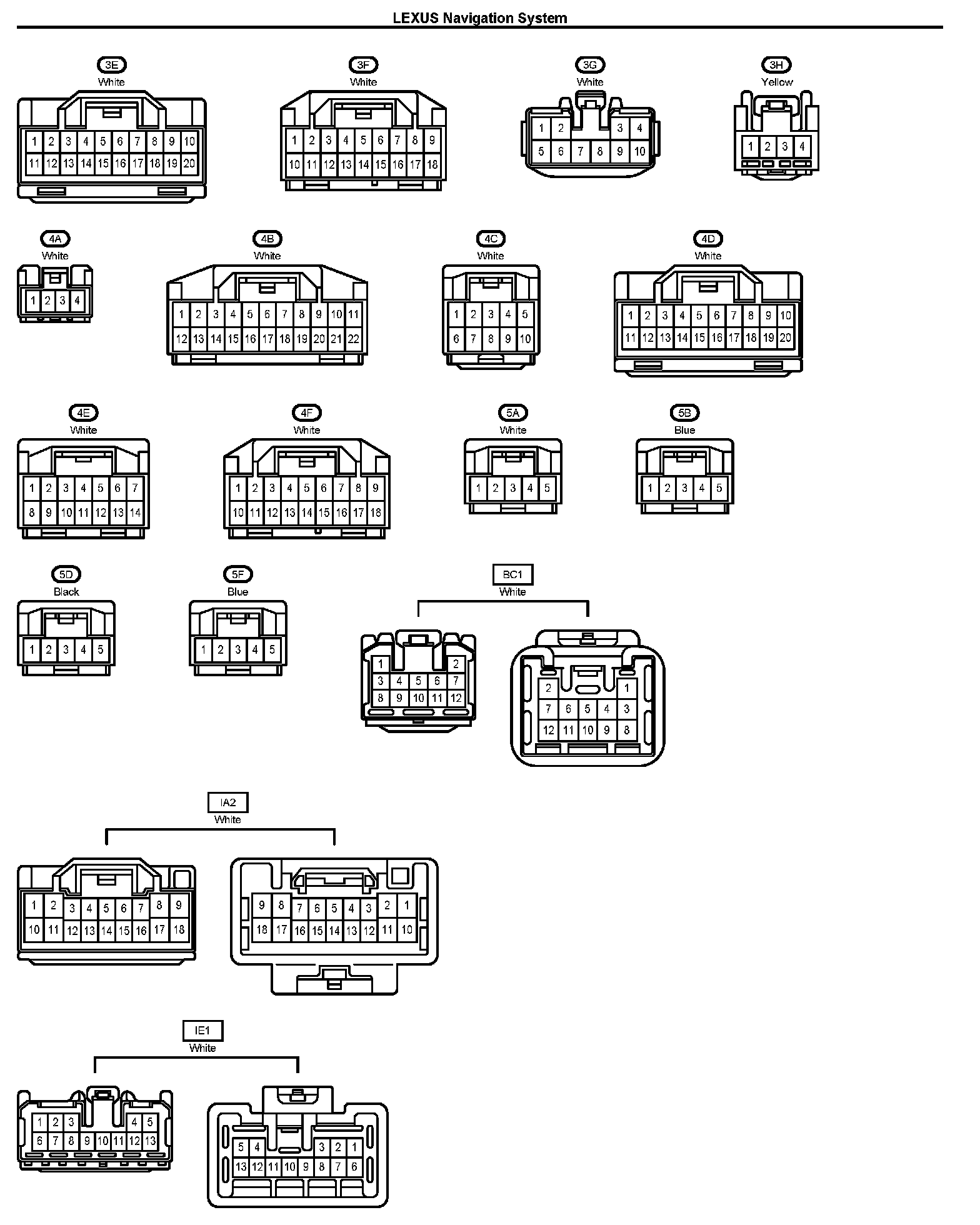

Connectors Part 2:

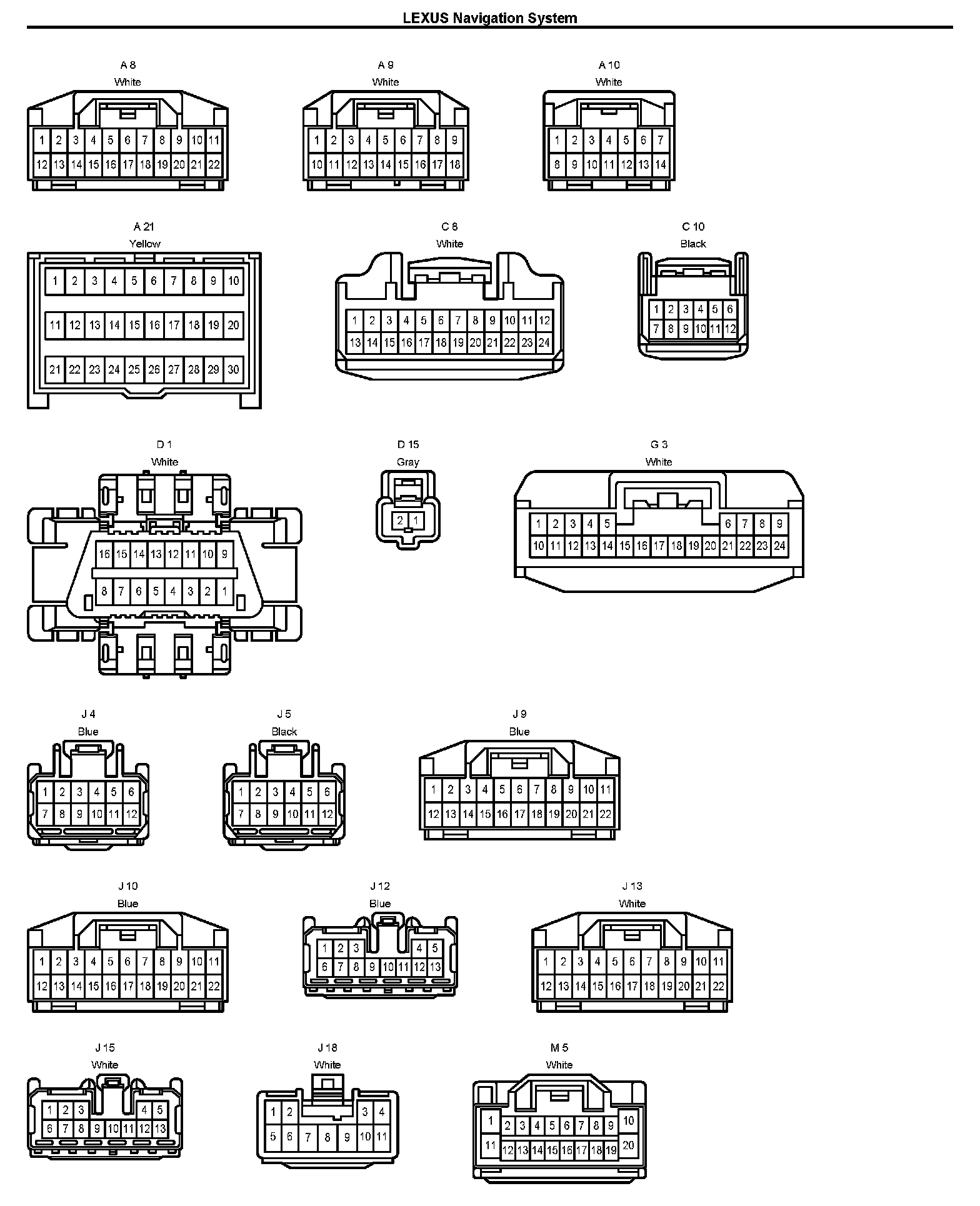

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
