Instrument Cluster / Carrier

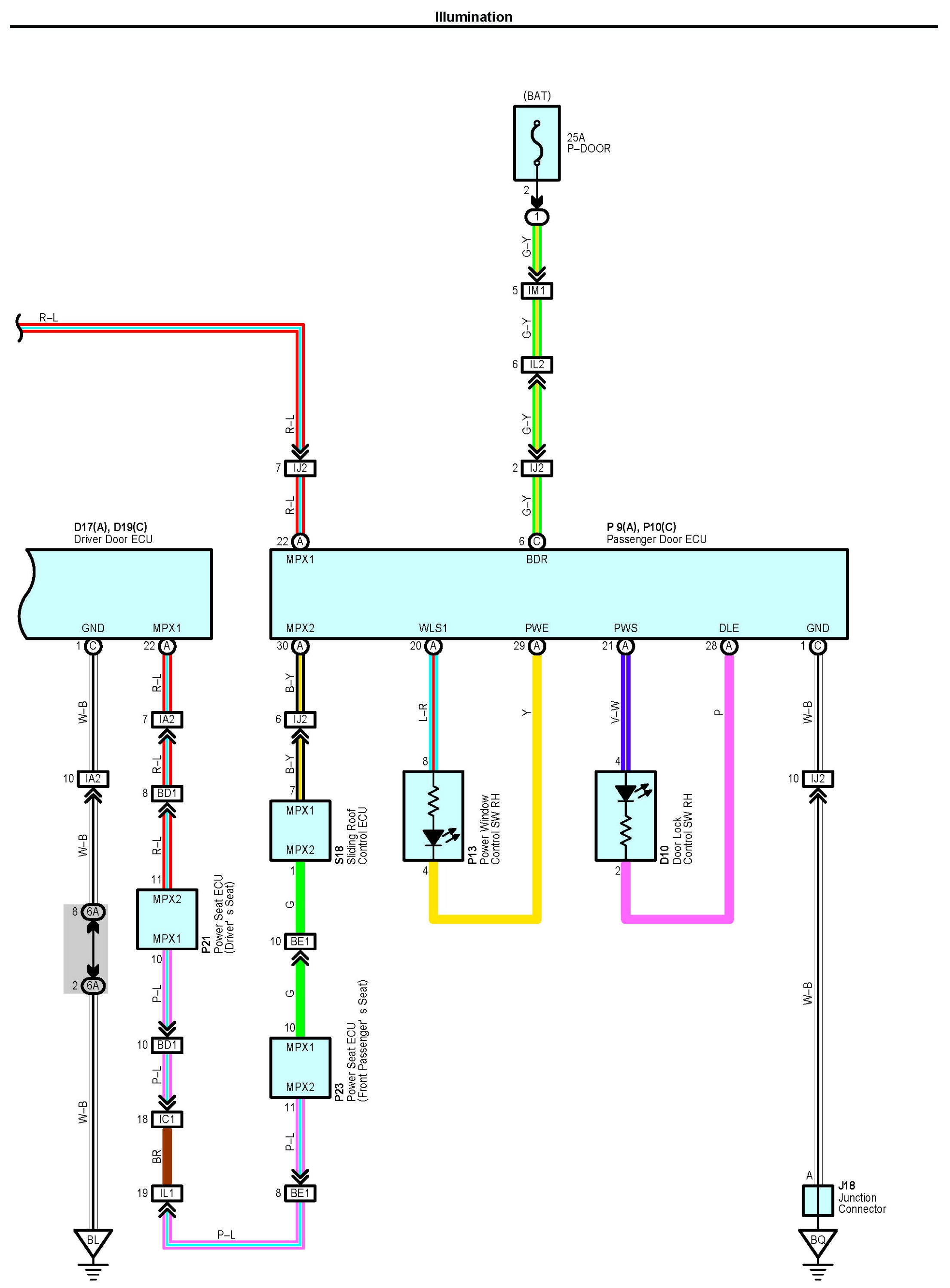

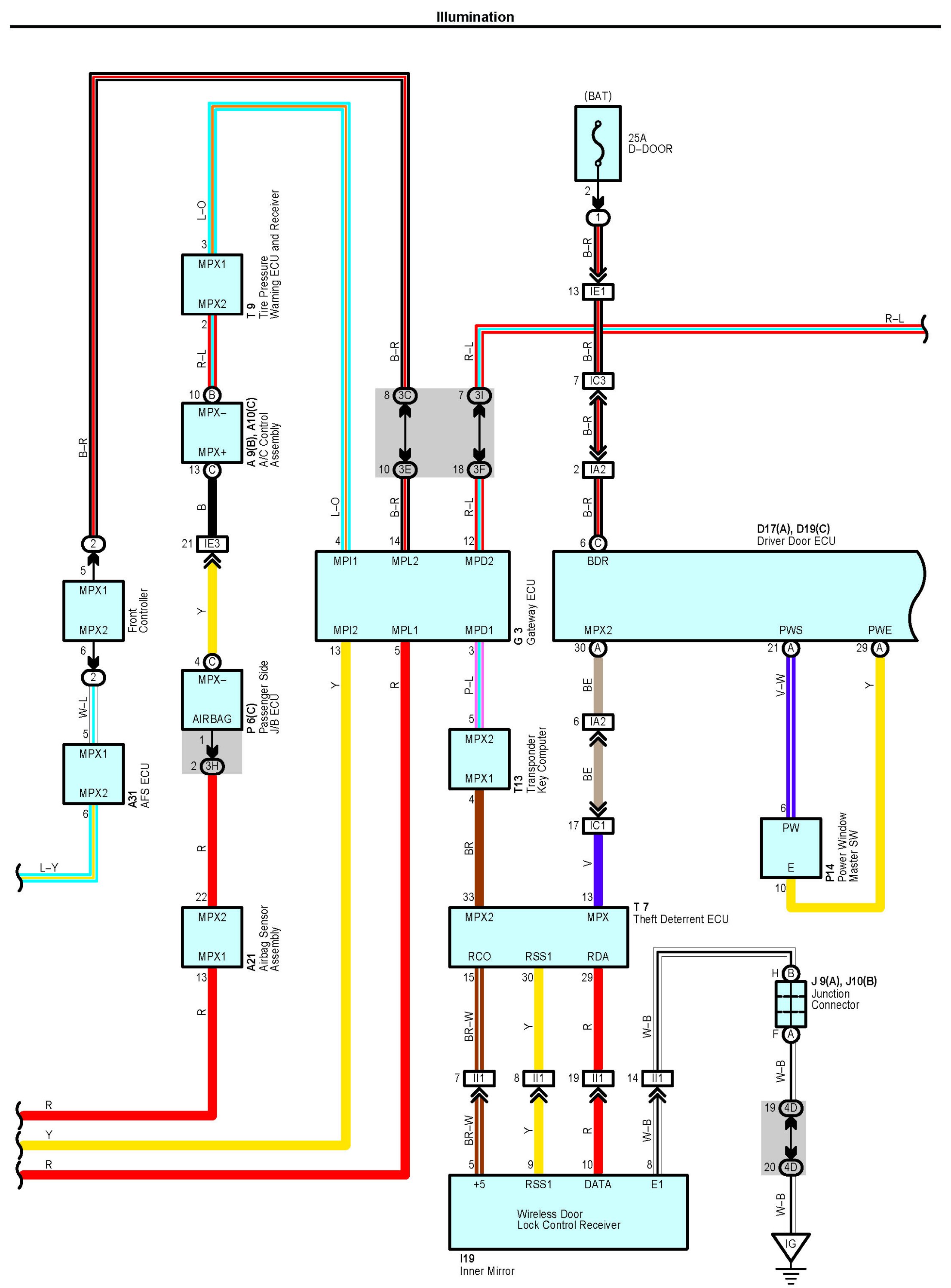

Illumination Part 1:

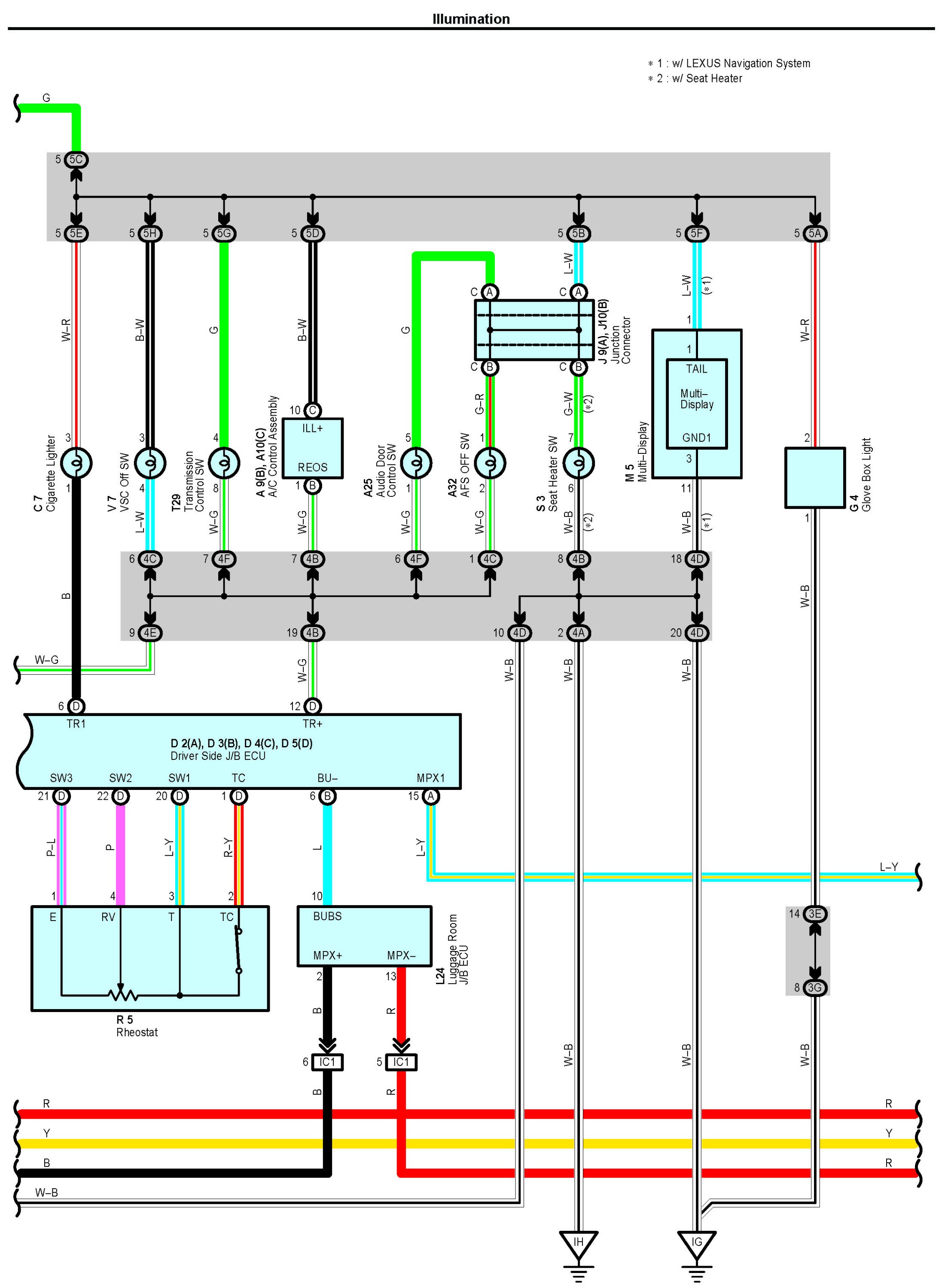

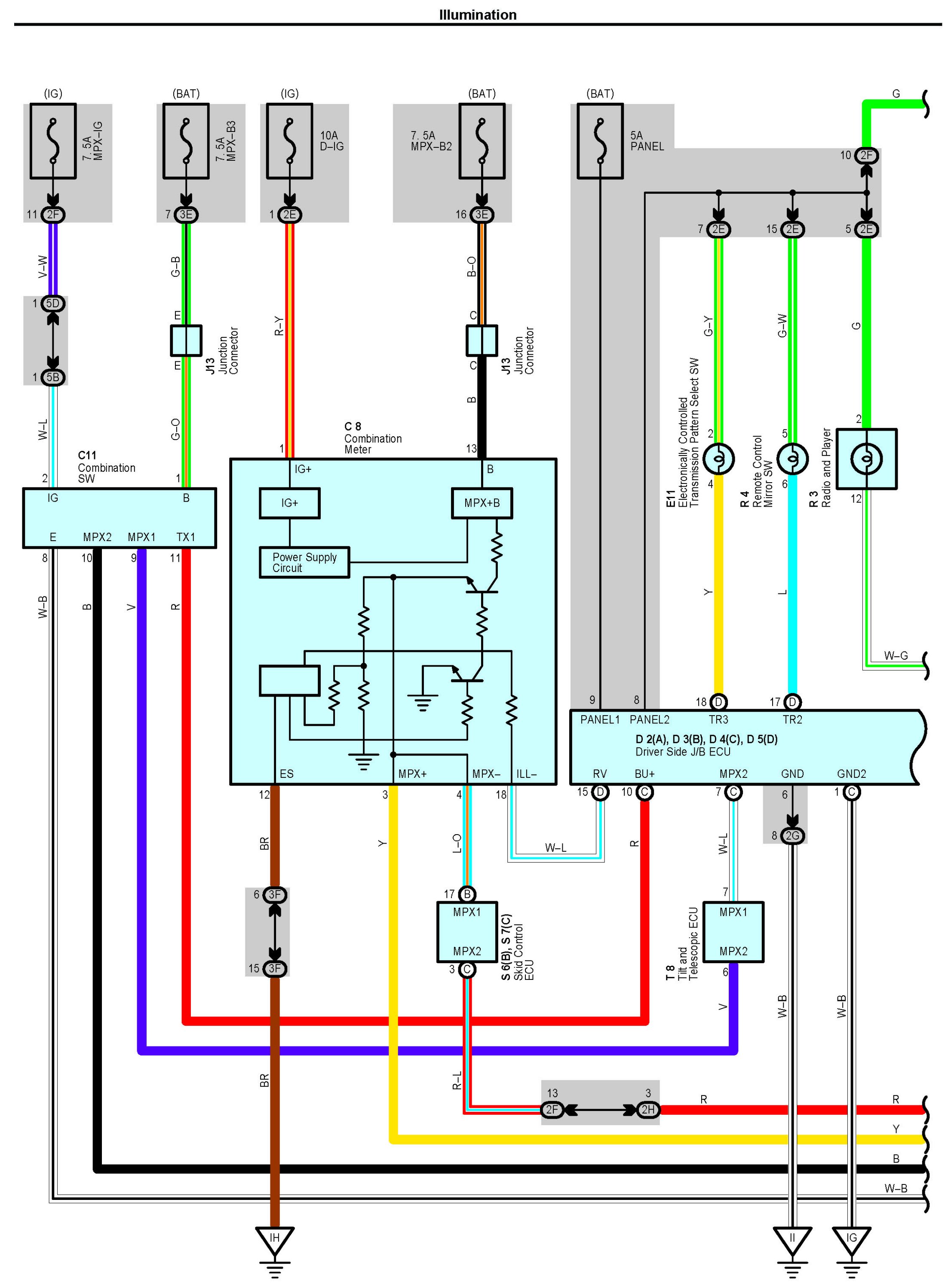

Illumination Part 2:

Illumination Part 3:

Illumination Part 4:

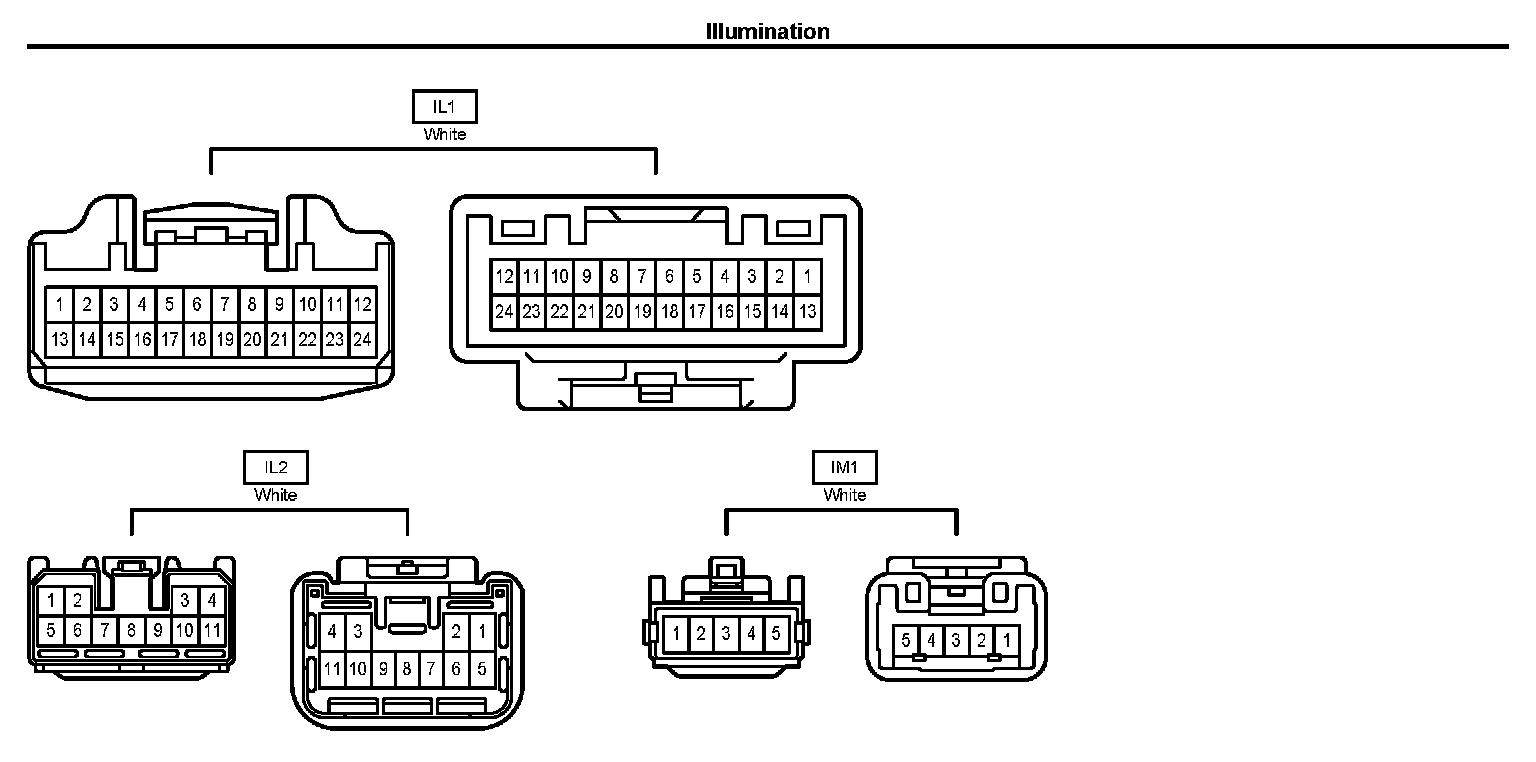

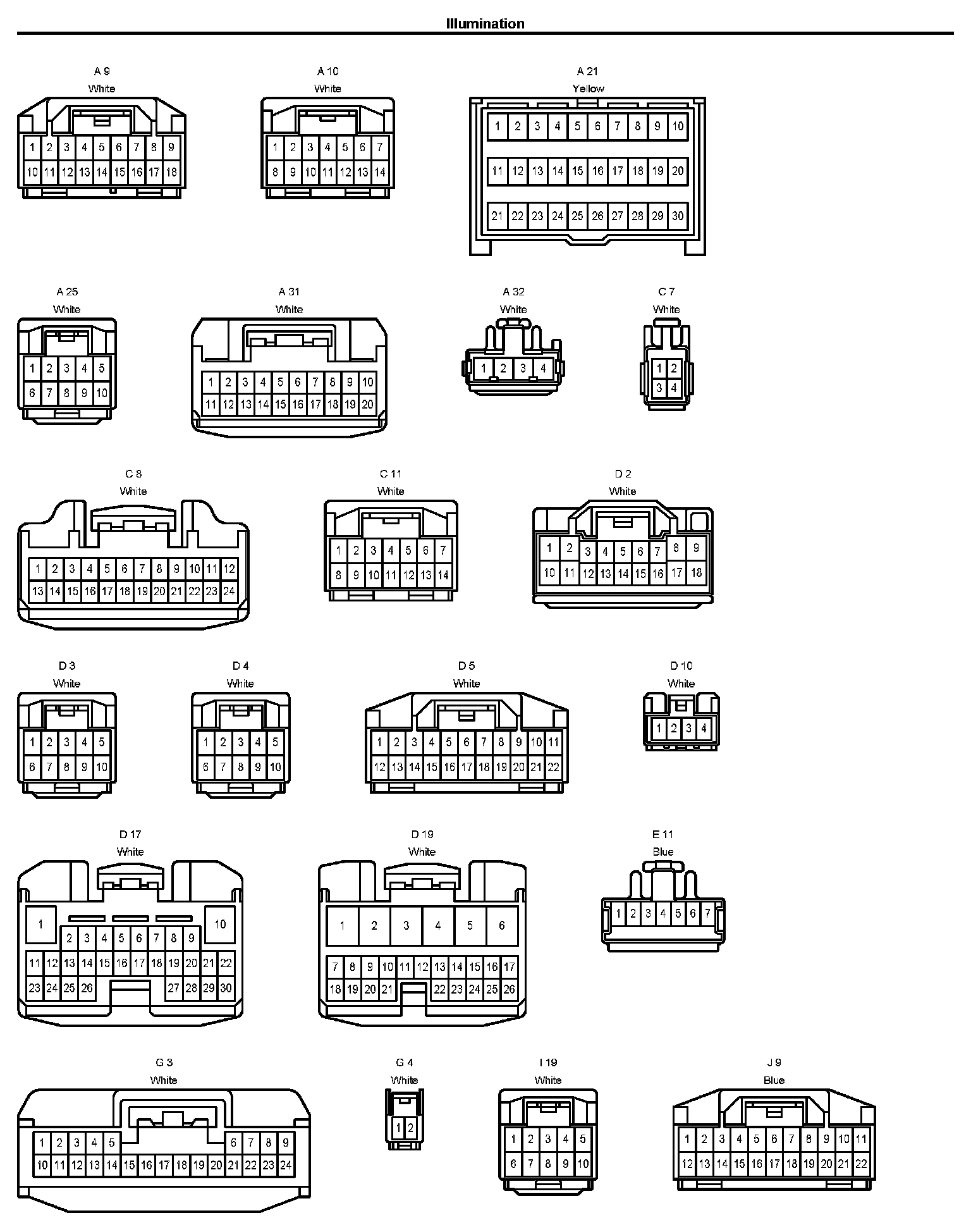

Connectors Part 1:

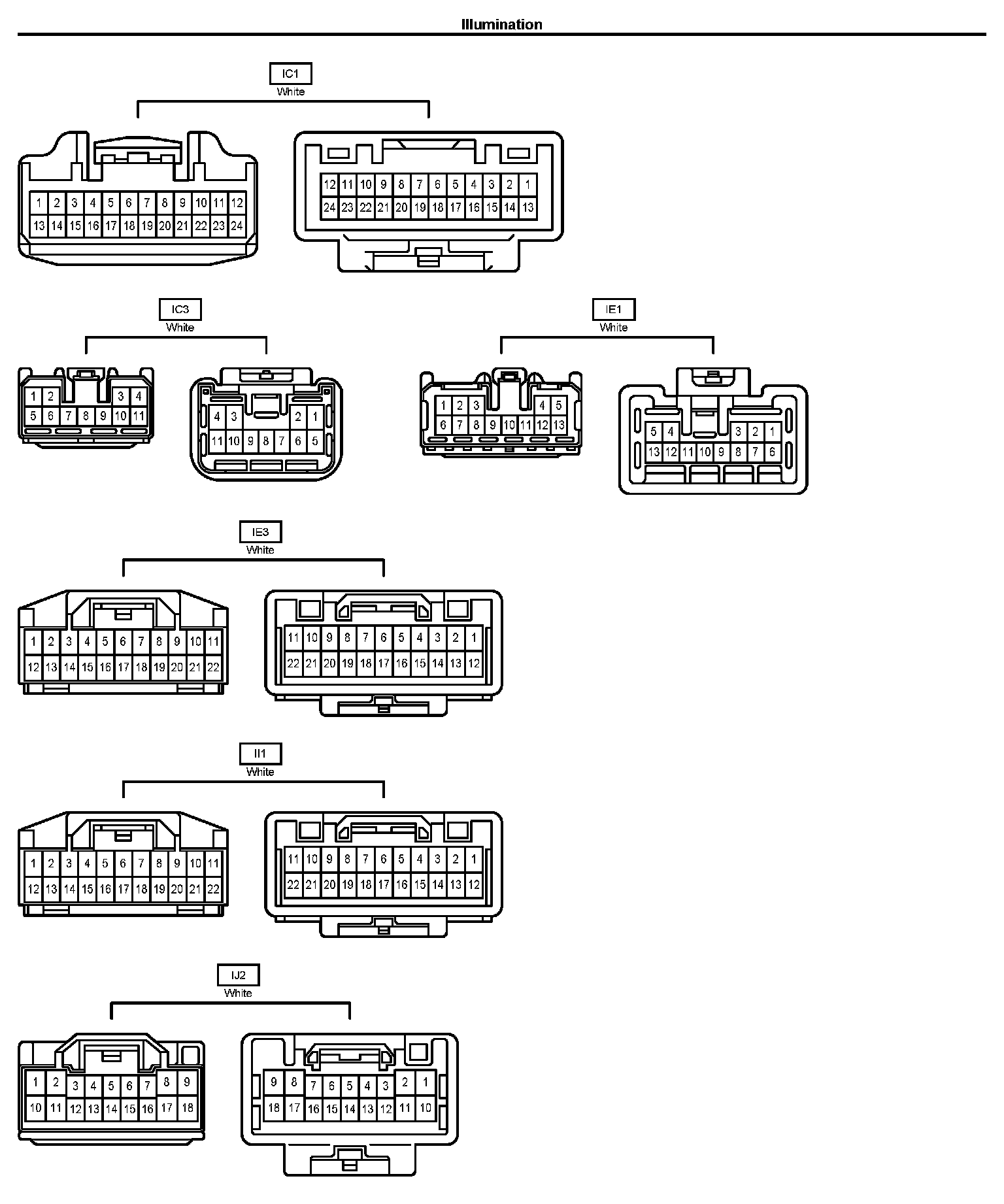

Connectors Part 2:

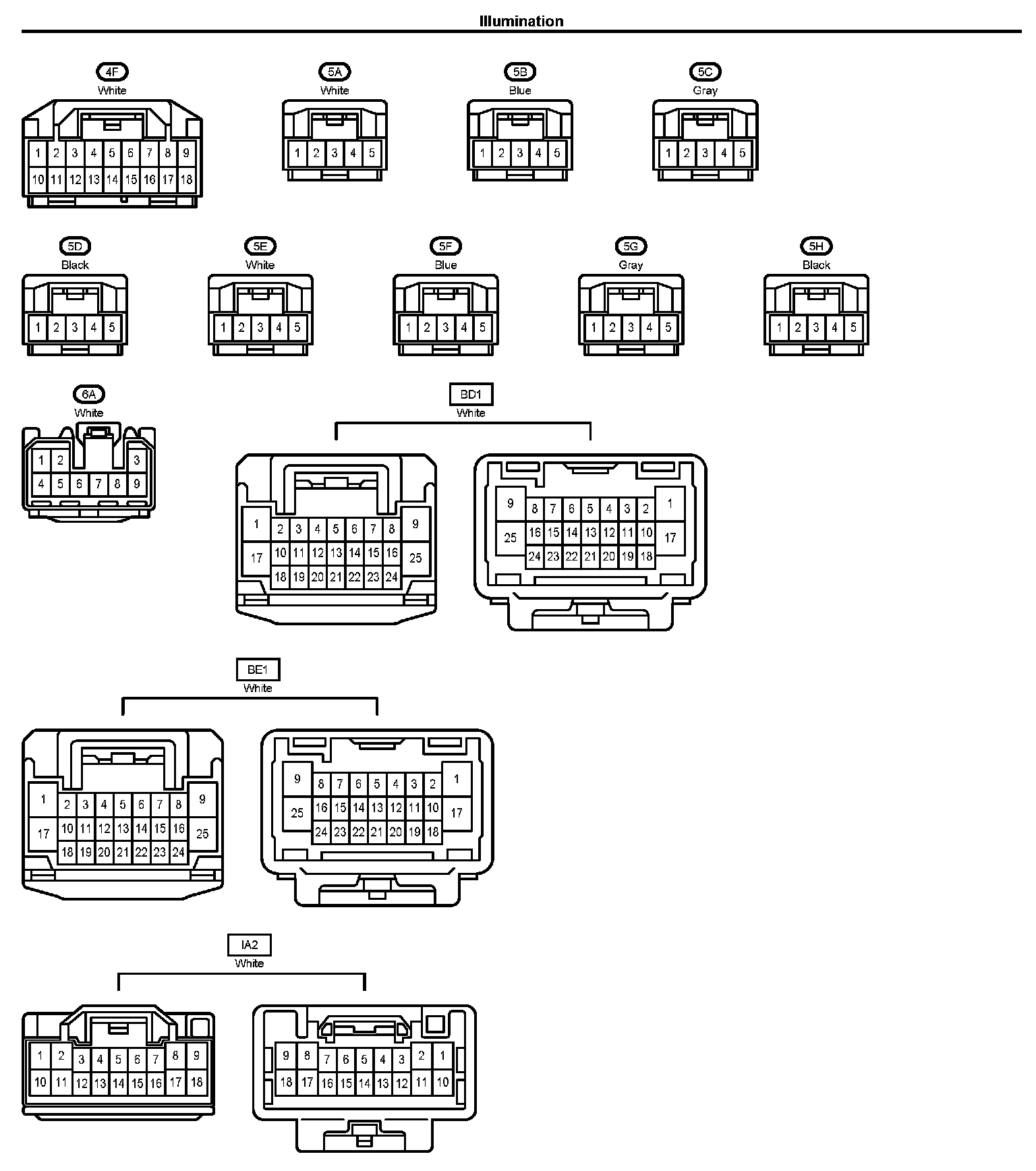

Connectors Part 3:

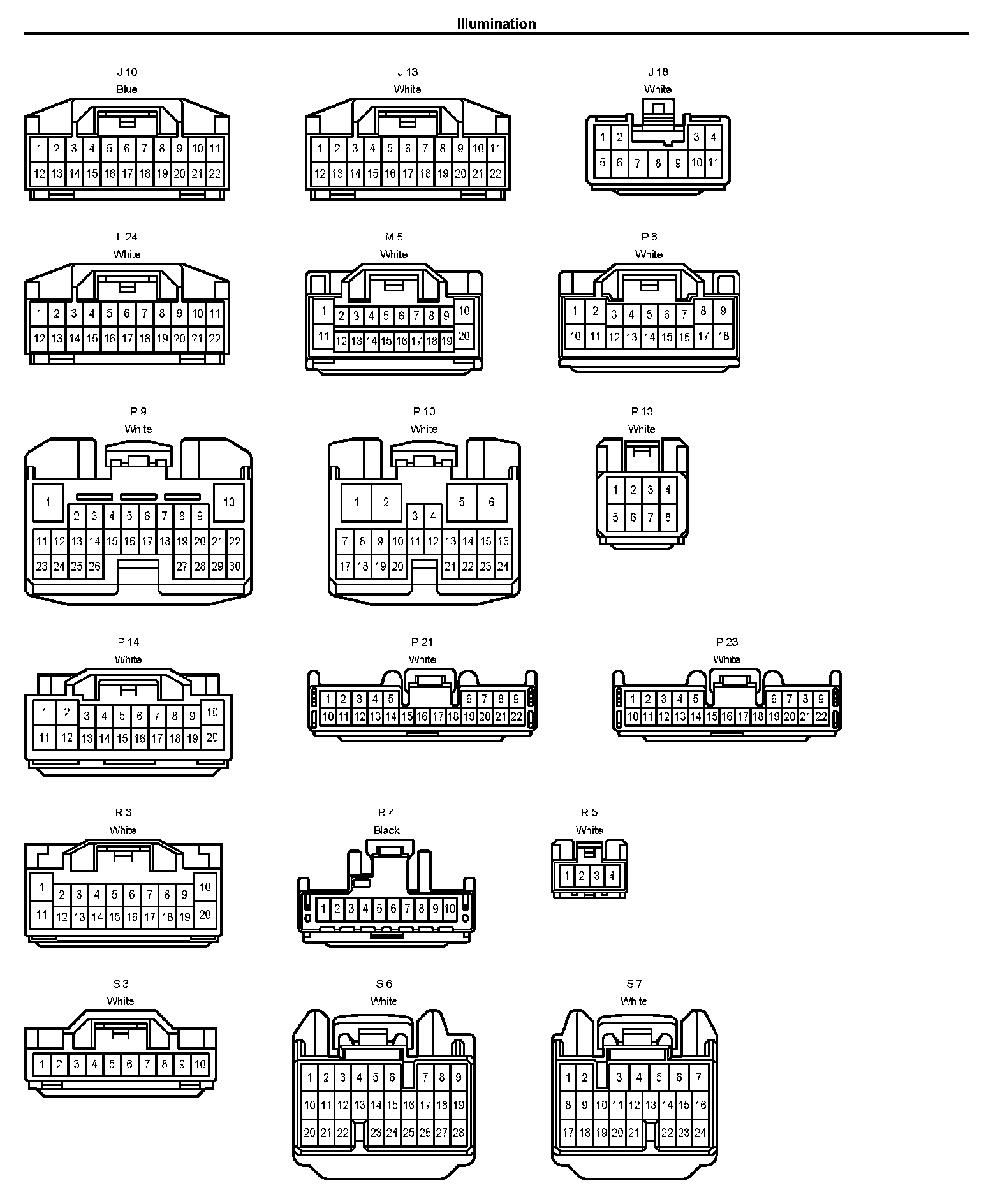

Connectors Part 4:

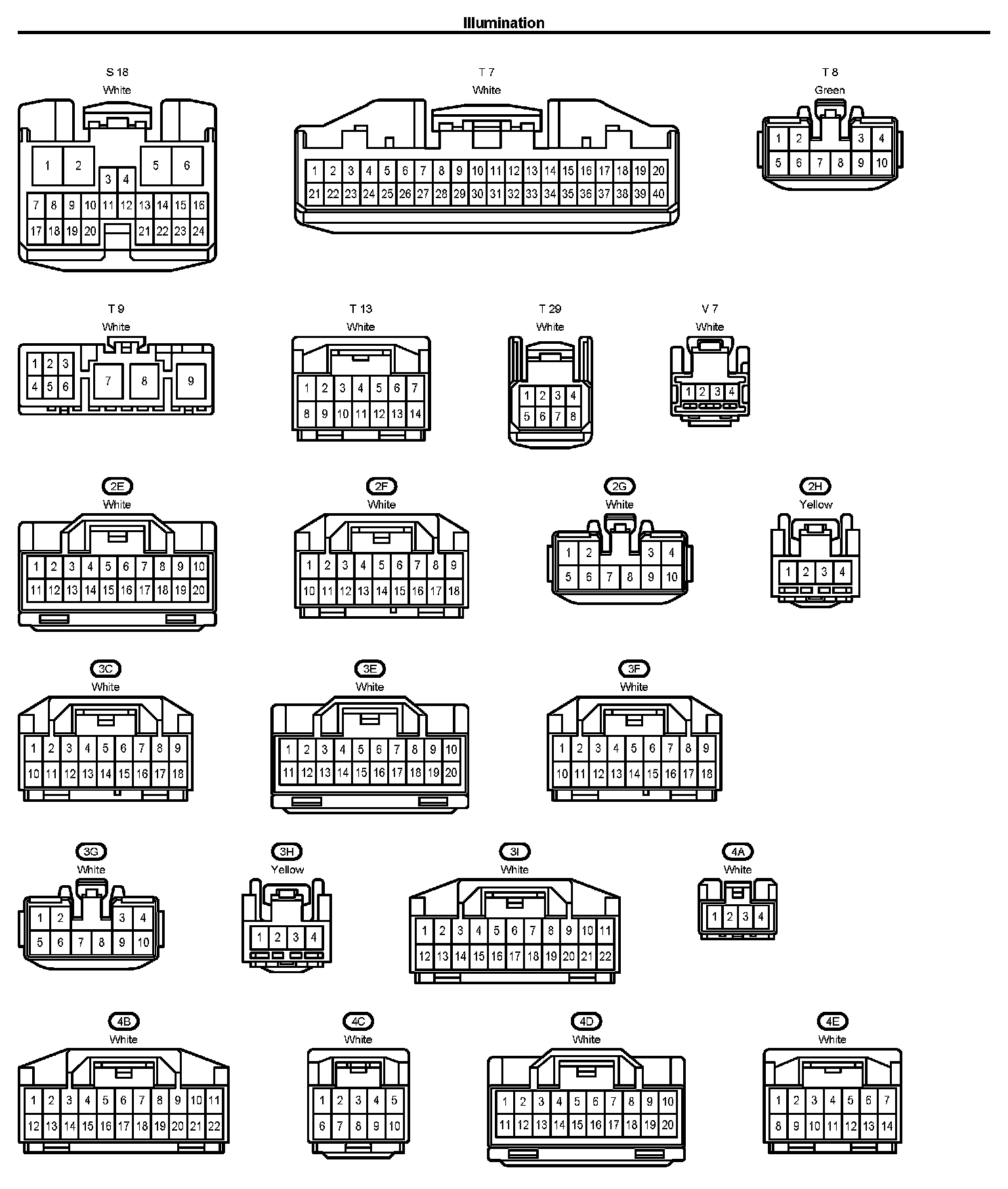

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
