Pinout Values and Diagnostic Parameters

CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECM

TERMINALS OF ECM

1. CHECK ECM

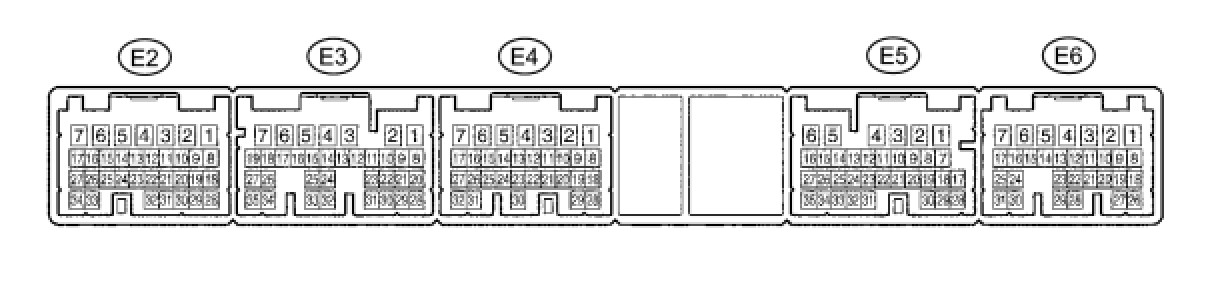

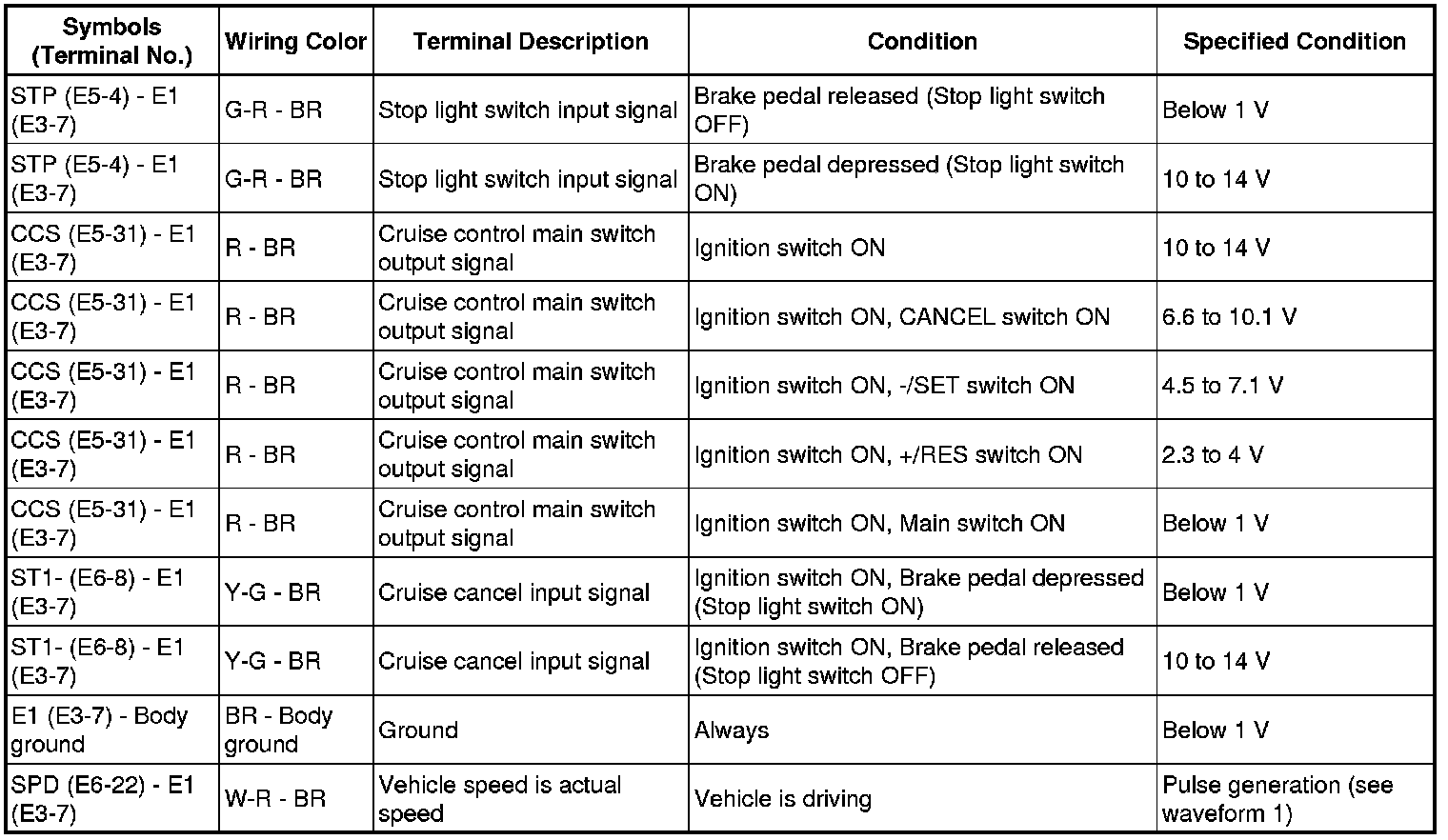

(a) Measure the voltage of the connectors.





- If the result is not as specified, the ECM may have a malfunction.

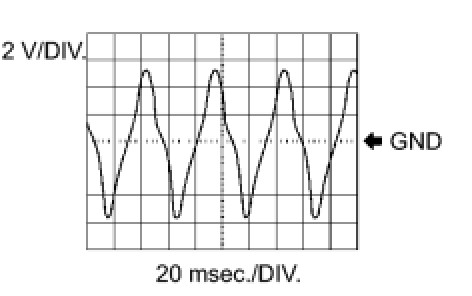

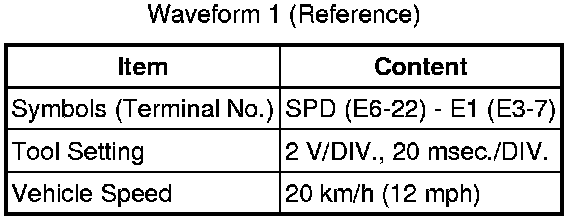

(b) Inspect using an oscilloscope.





HINT: The wavelength becomes shorter as vehicle speed increases.
