TC and CG Terminal Circuit

CRUISE CONTROL: CRUISE CONTROL SYSTEM: TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 enables DTCs to be read through blinking patterns of the combination meter's CRUISE main indicator light.
HINT: When a warning light of the combination meter stays blinking, terminal TC of the DLC3 or an ECU may have a ground short.

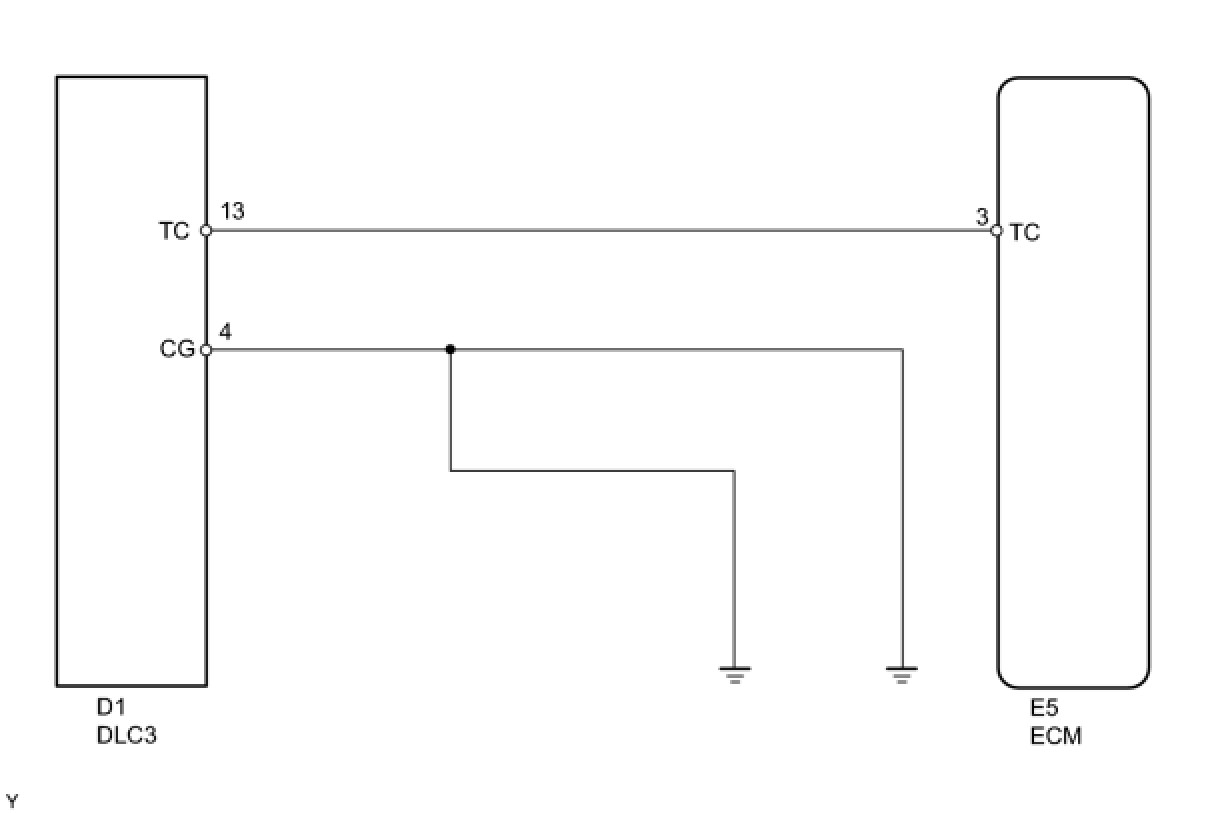

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (DLC3 - ECM AND BODY GROUND)




(a) Disconnect the E5 ECM connector.
(b) Measure the resistance of the wire harness side connectors.

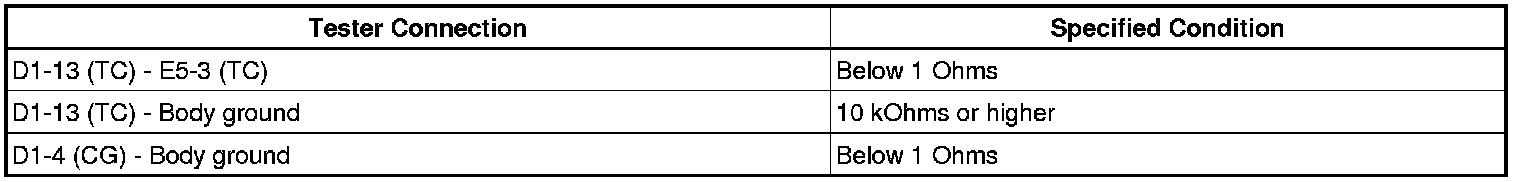

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
