Brakes and Traction Control: Testing and Inspection

BRAKE: BRAKE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

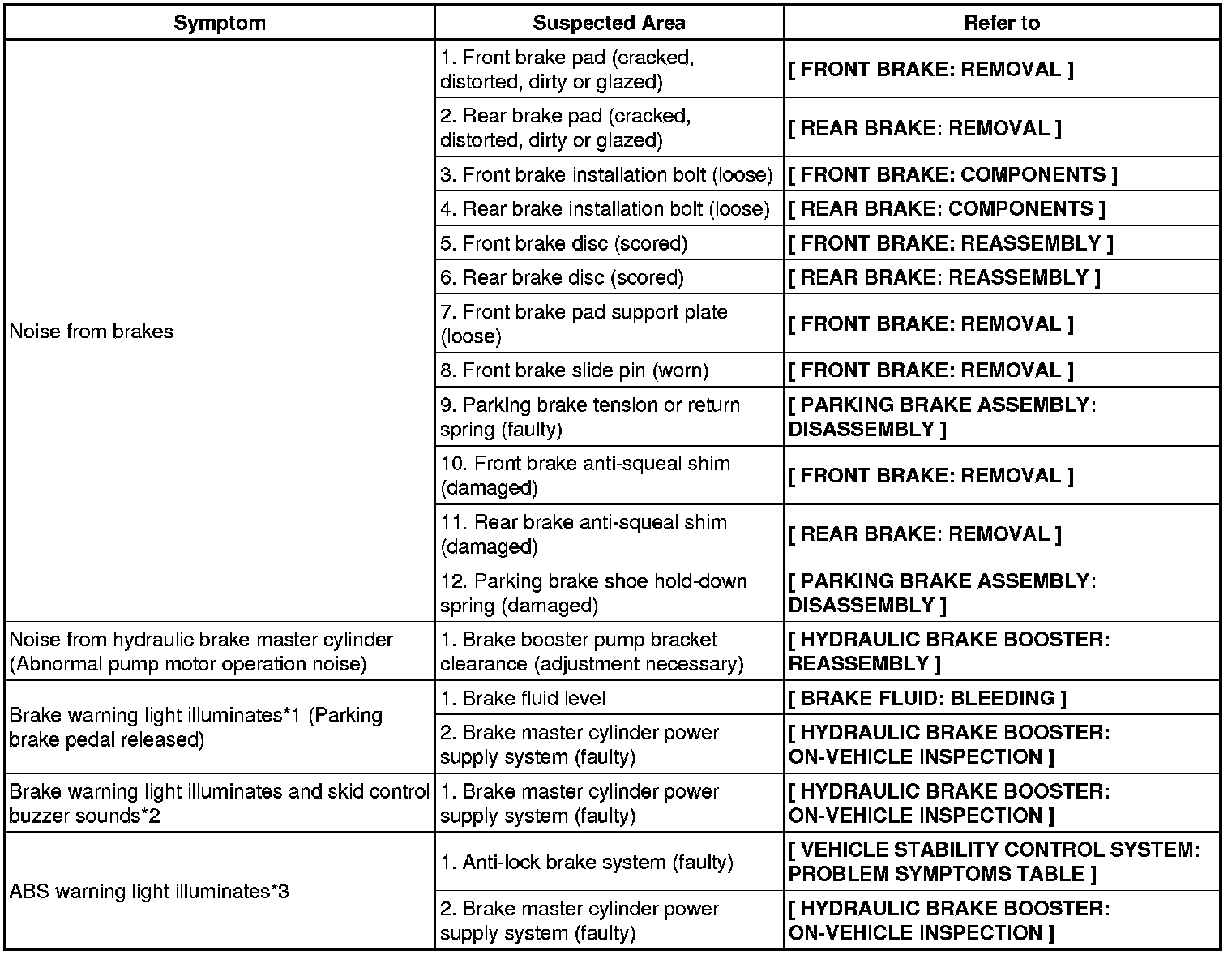

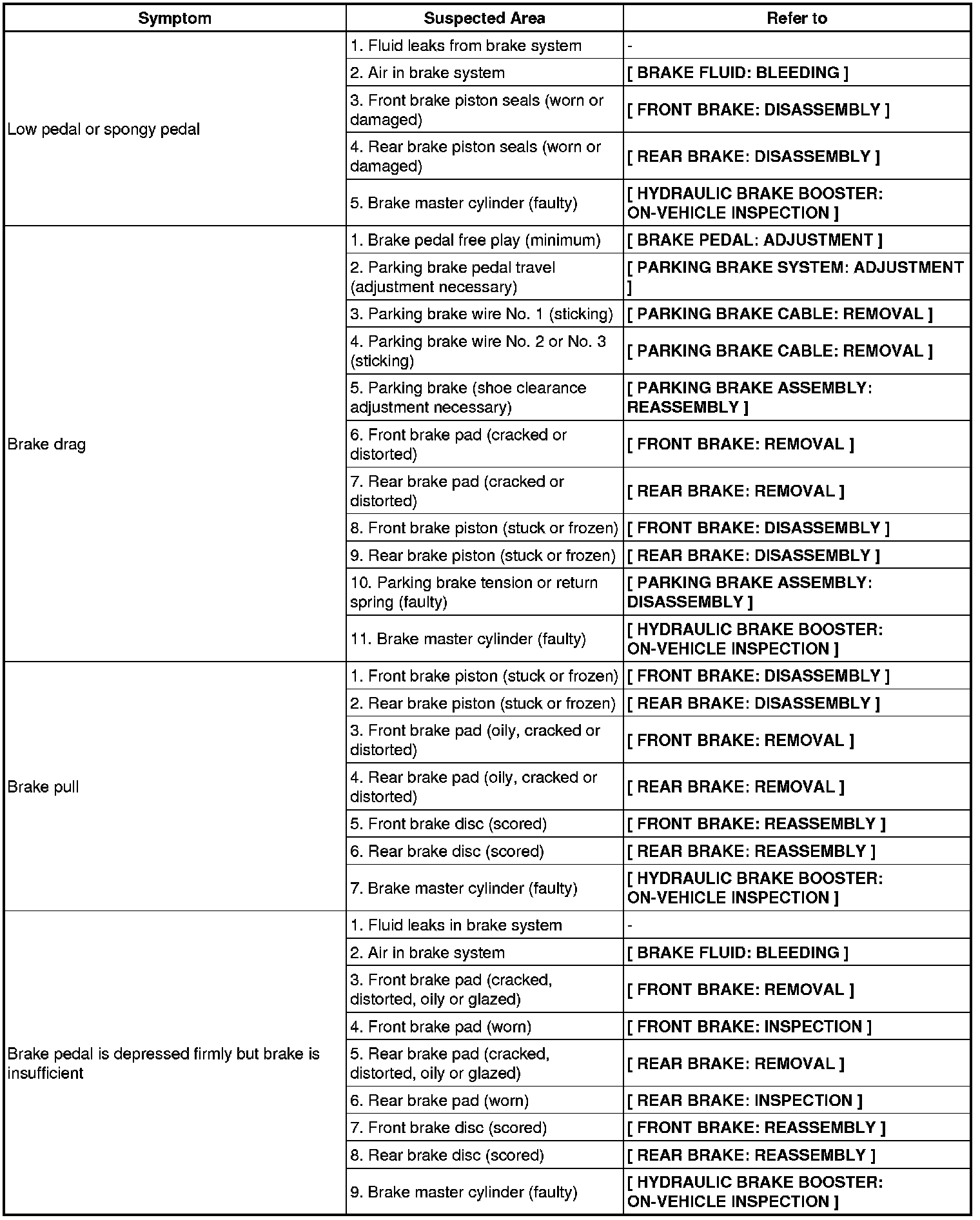

HINT: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

Brake system









HINT:
- *1, *3: The light may illuminate for approximately 60 seconds after the engine has been started. It is normal if it turns off after a while.
- *2, *3: Depressing the brake pedal repeatedly may turn on the warning light and the buzzer. It is normal if the light turns off and the buzzer stops sounding after a few seconds.
- *3: While the ABS warning light is illuminated, both the VSC warning light and VSC OFF indicator light illuminate.
