Removal

BRAKE CONTROL: REAR SPEED SENSOR: REMOVAL

REMOVAL

1. REMOVE REAR WHEEL
2. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
3. REMOVE REAR SEAT HEADREST PLATE COVER Removal
4. REMOVE WIND DEFLECTOR BOARD ASSEMBLY Removal
5. REMOVE REAR SEAT HEADREST PLATE Removal
6. REMOVE REAR SEAT HEADREST ASSEMBLY Removal
7. REMOVE REAR SEATBACK ASSEMBLY Removal

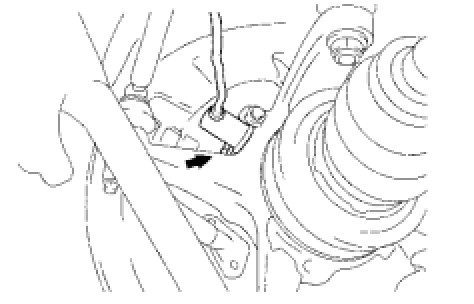

8. REMOVE REAR SPEED SENSOR LH
(a) Disconnect the sensor and height control sensor connectors.
(b) Remove the bolt and nut, and then disconnect the No. 2 and No. 3 clamps.
(c) Remove the resin clamp and clamp bolt, and then disconnect the height control sensor connector.
(d) Remove the bolt, and then disconnect the No. 1 clamp.

(e) Remove the bolt and sensor.
NOTE:
Keep the sensor tip free from foreign matter.

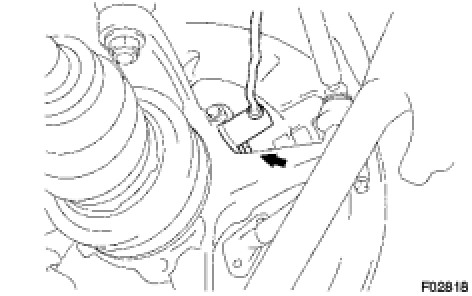

9. REMOVE REAR SPEED SENSOR RH
(a) Disconnect the sensor connector.
(b) Remove the nut, and then disconnect the No. 2 clamp.
