Disposal

BRAKE: HYDRAULIC BRAKE BOOSTER: DISPOSAL

DISPOSAL

1. DISPOSE OF BRAKE BOOSTER ACCUMULATOR ASSEMBLY





(a) Discharge the high pressure gas from the accumulator.
(1) Mount the accumulator in a vise.

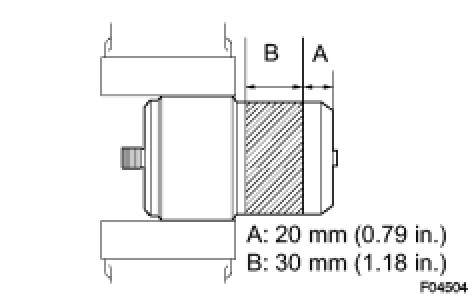

(2) Set a saw to the area (B) to be cut. Cover the saw with a cloth.
(3) Gradually cut the accumulator body.
HINT: When the outer body of the accumulator is cut, gas discharges.
