Removal

BRAKE: FRONT BRAKE: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
NOTE:
Wash off brake fluid immediately if it comes in contact with any painted surface.

3. REMOVE DISC BRAKE CYLINDER ASSEMBLY LH

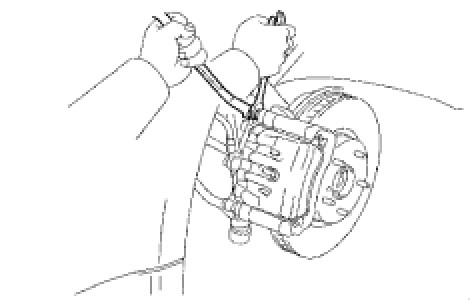

(a) Remove the union bolt and gasket from the cylinder, and then disconnect the flexible hose and remove the other gasket.

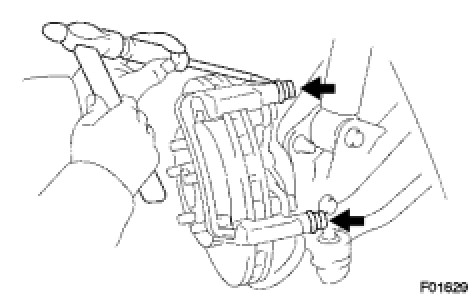

(b) Hold the upper slide pin and remove the bolt. Then hold the lower slide pin and remove the bolt.
4. REMOVE FRONT DISC BRAKE PAD
(a) Remove the 2 anti-squeal springs.
(b) Remove the 2 pads with the anti-squeal shims.
(c) Remove the shim and inner shim from each pad.
5. REMOVE FRONT DISC BRAKE PAD SUPPORT PLATE
6. REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN
(a) Remove the pins from the brake cylinder mounting.
7. REMOVE FRONT DISC BRAKE BUSH DUST BOOT





(a) Using a screwdriver and hammer, tap out the 2 boots.
8. REMOVE FRONT DISC BRAKE CYLINDER MOUNTING LH
(a) Remove the 2 bolts and mounting.
