Pinout Values and Diagnostic Parameters

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

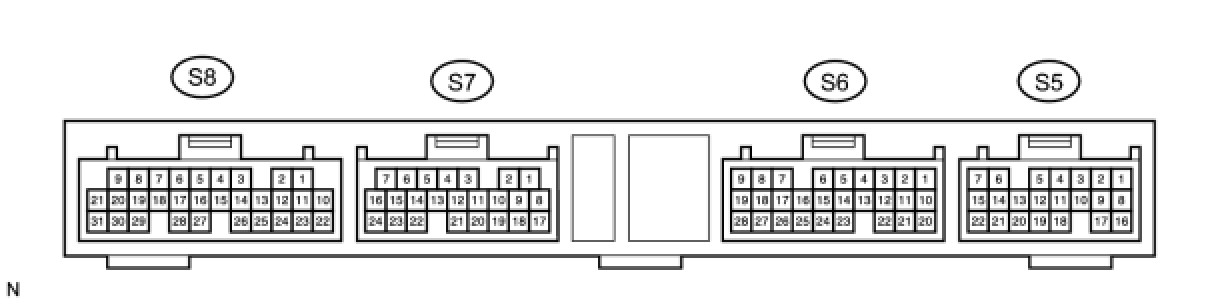

1. CHECK SKID CONTROL ECU

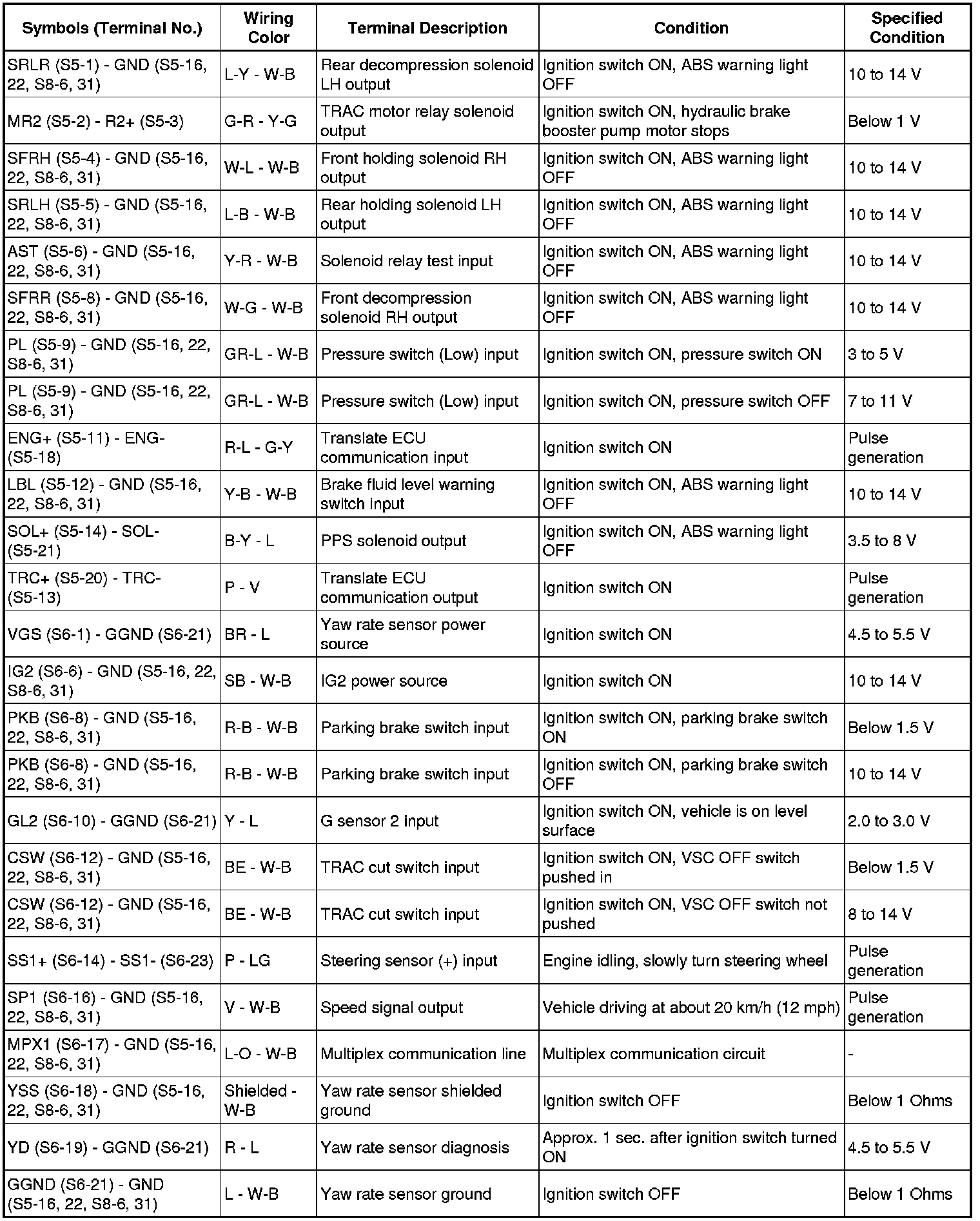

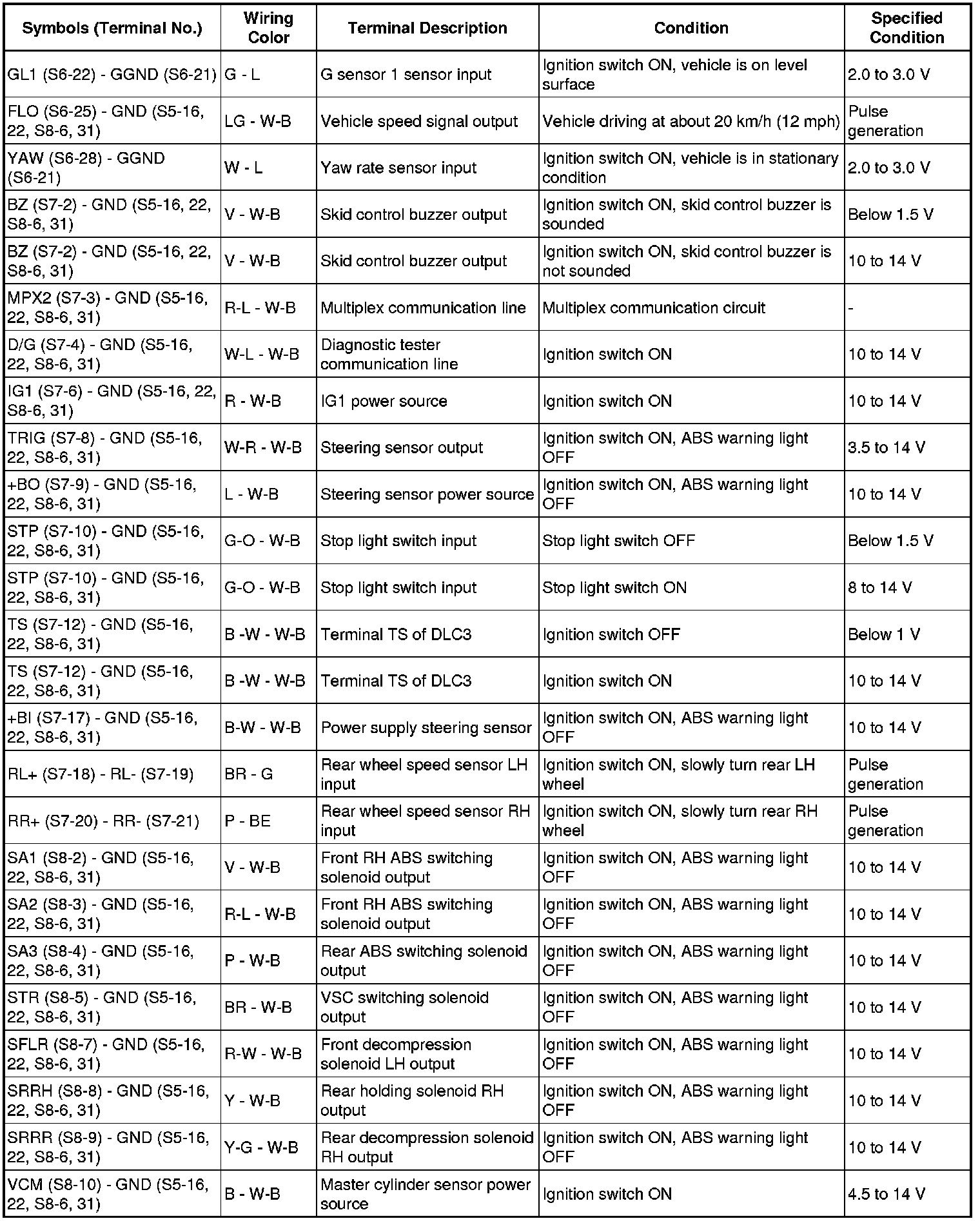

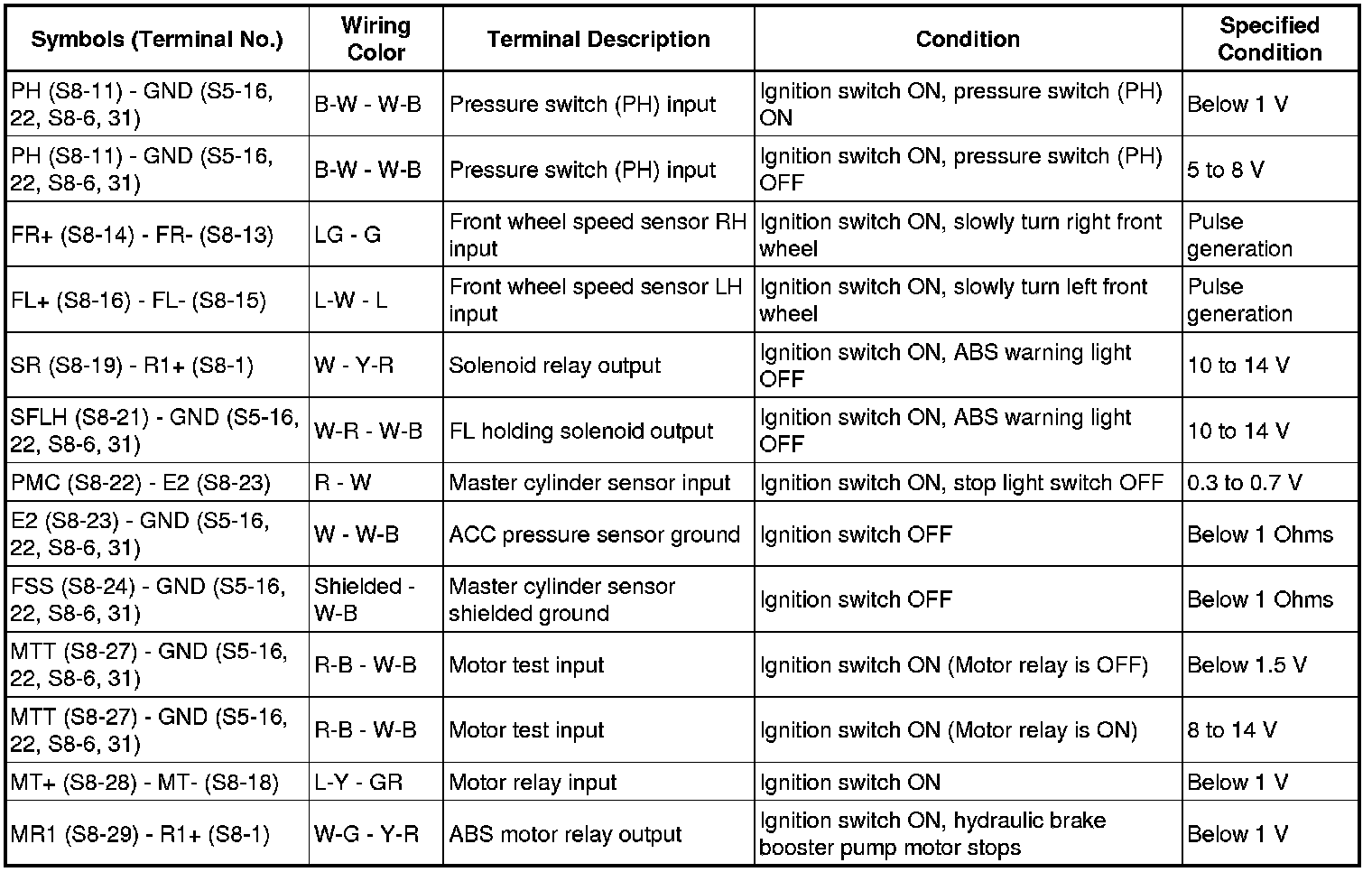

(a) Measure the voltage and resistance of the connectors.













- If the result is not as specified, the ECU may be malfunctioning.

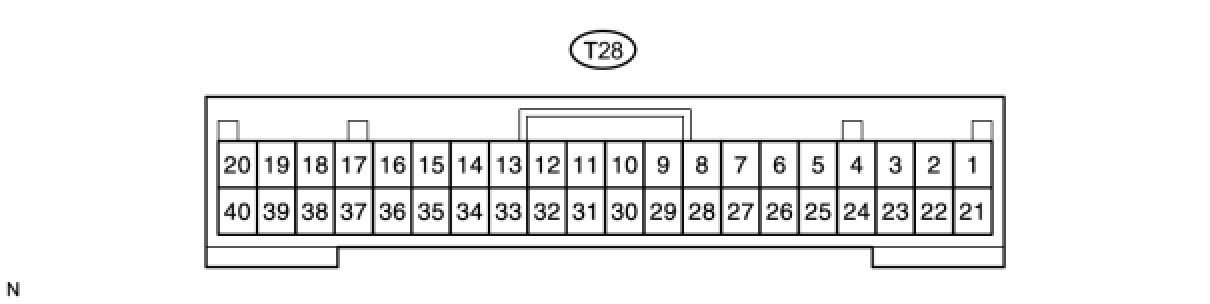

2. CHECK TRANSLATE ECU

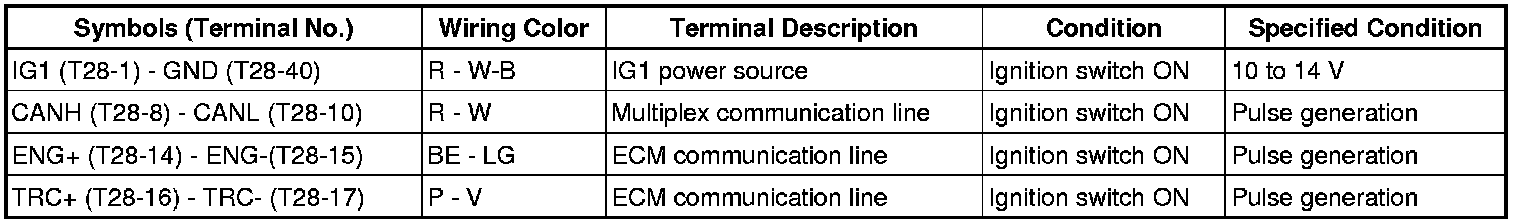

(a) Measure the voltage of the connector.





- If the result is not as specified, the ECU may be malfunctioning.
