Power Mirror Switch: Testing and Inspection

MIRROR: OUTER MIRROR SWITCH: INSPECTION

INSPECTION

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY





(a) Select L or R on the mirror master switch.

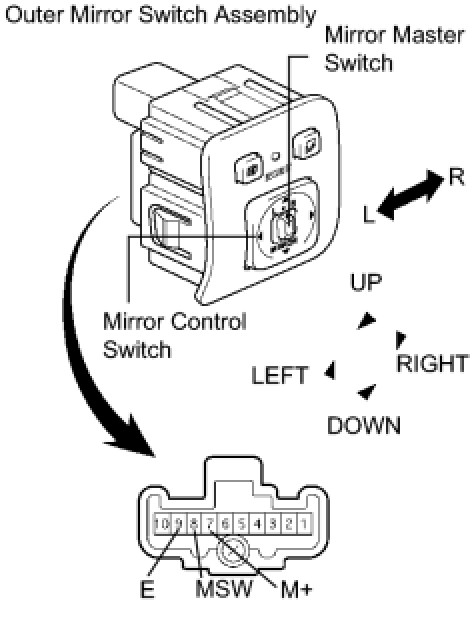

(b) Measure the resistance of the mirror master switch.

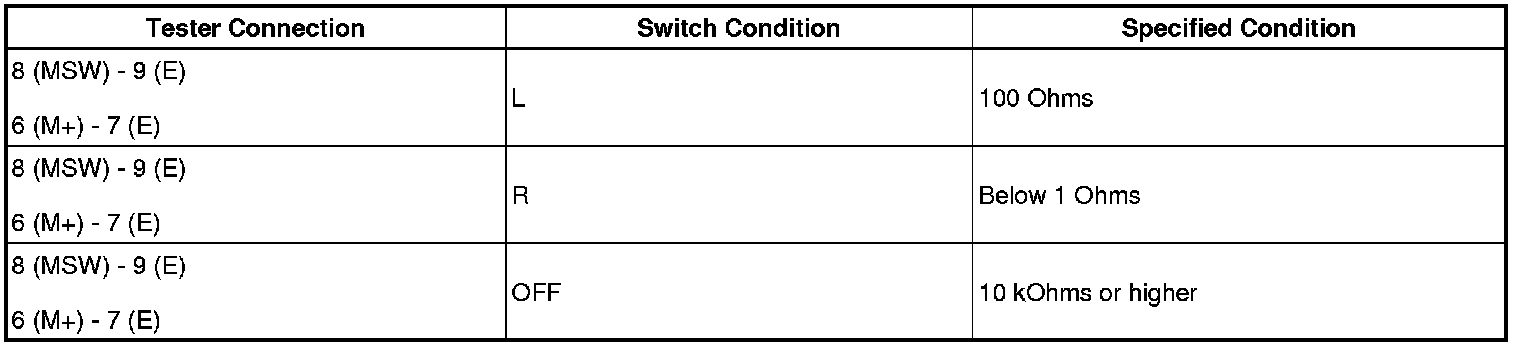

Standard resistance:





If the result is not as specified, replace the switch assembly.
(c) Measure the resistance of the mirror control switch.

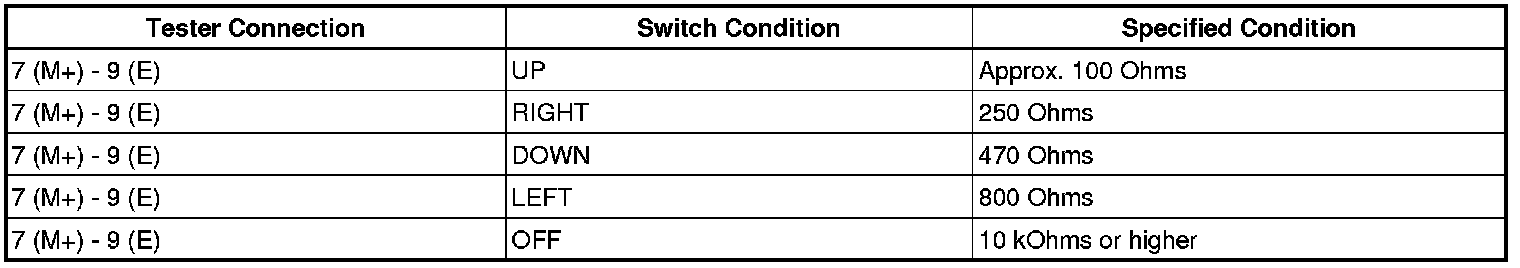

Standard resistance:





If the result is not as specified, replace the switch assembly.

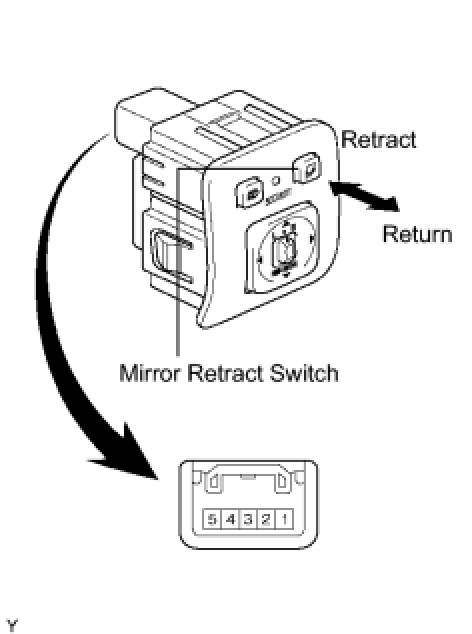

(d) Measure the resistance of the retract switch.

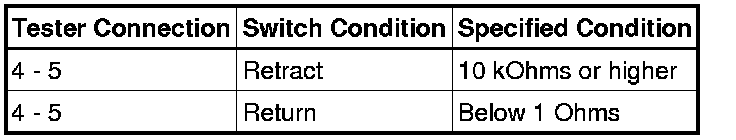

Standard resistance:





If the result is not as specified, replace the switch assembly.
