Door Control Switch

DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

INSPECTION

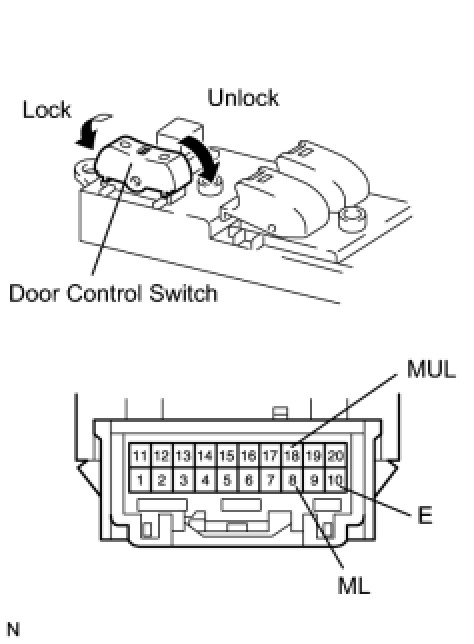

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY





(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the switch assembly.

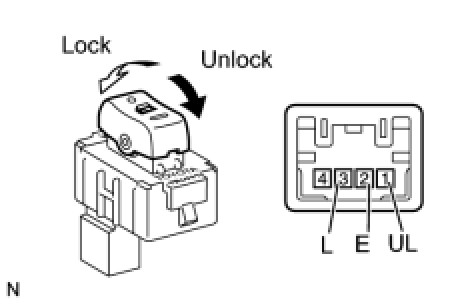

2. INSPECT DOOR CONTROL SWITCH ASSEMBLY





(a) Measure the resistance of the switch.

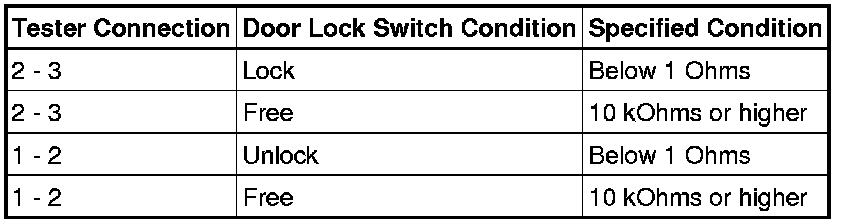

Standard resistance:





If the result is not as specified, replace the switch assembly.
