Tonneau Cover Limit Switch

CONVERTIBLE: TONNEAU COVER LIMIT SWITCH: INSPECTION

INSPECTION

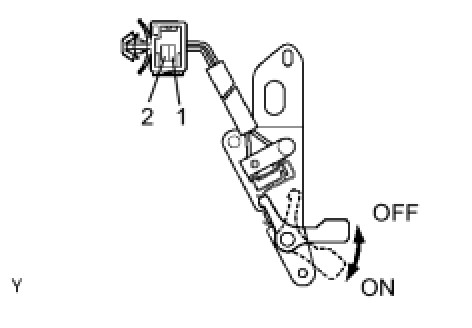

1. INSPECT LIMIT SWITCH ASSEMBLY (TONNEAU COVER SWITCH)
(a) Measure the resistance of the switch.

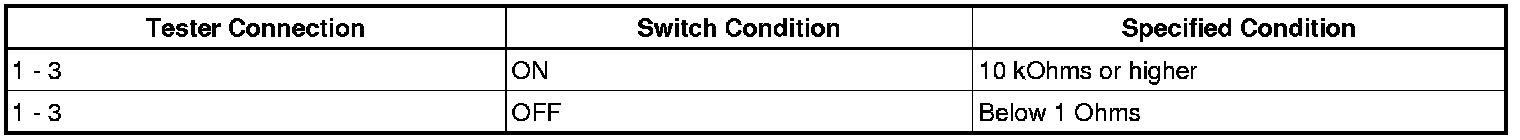

Standard resistance:





If the is not as specified, replace the limit switch assembly.
