Diagnosis System

SEAT: FRONT POWER SEAT CONTROL SYSTEM: DIAGNOSIS SYSTEM

DIAGNOSIS SYSTEM

1. DESCRIPTION
(a) Front power seat control system data and the Diagnostic Trouble Codes (DTCs) can be read through the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the Techstream to check for malfunctions and perform repairs.





2. CHECK DLC3

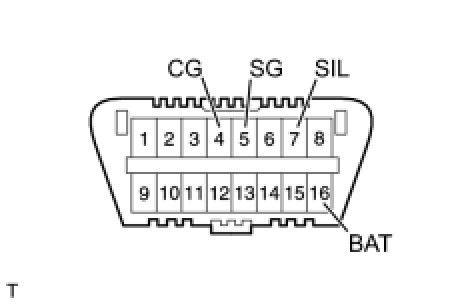

The vehicle uses ISO 15765-4 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

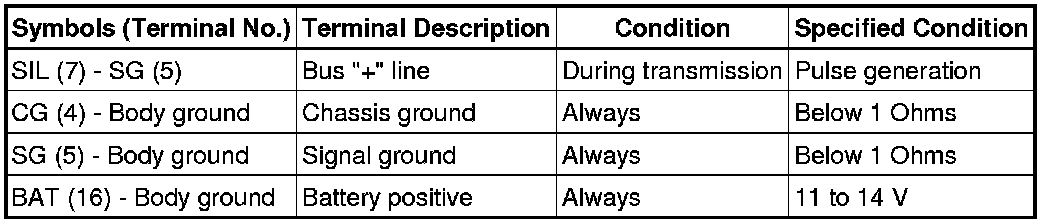

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.
HINT: Connect the cable of the Techstream to the DLC3, turn the ignition switch ON and attempt to use the Techstream. If the screen displays the message UNABLE TO CONNECT TO VEHICLE, there is a problem either with the vehicle or with the Techstream.

- If communication is normal when the Techstream is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the Techstream is connected to another vehicle, the problem is probably in the Techstream itself. Consult the Service Department listed in the Techstream instruction manual.
