Reassembly

SEAT: REAR SEAT ASSEMBLY: REASSEMBLY

REASSEMBLY





1. INSTALL REAR SEATBACK COVER

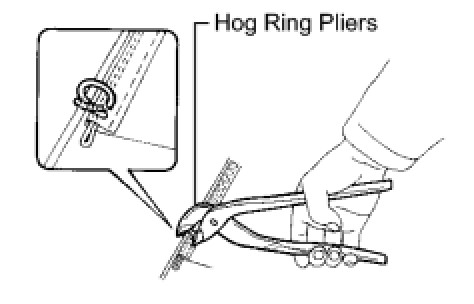

(a) Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid making wrinkles.

2. INSTALL REAR SEAT CUSHION COVER
(a) Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid making wrinkles.
