Convertible Top: Locations

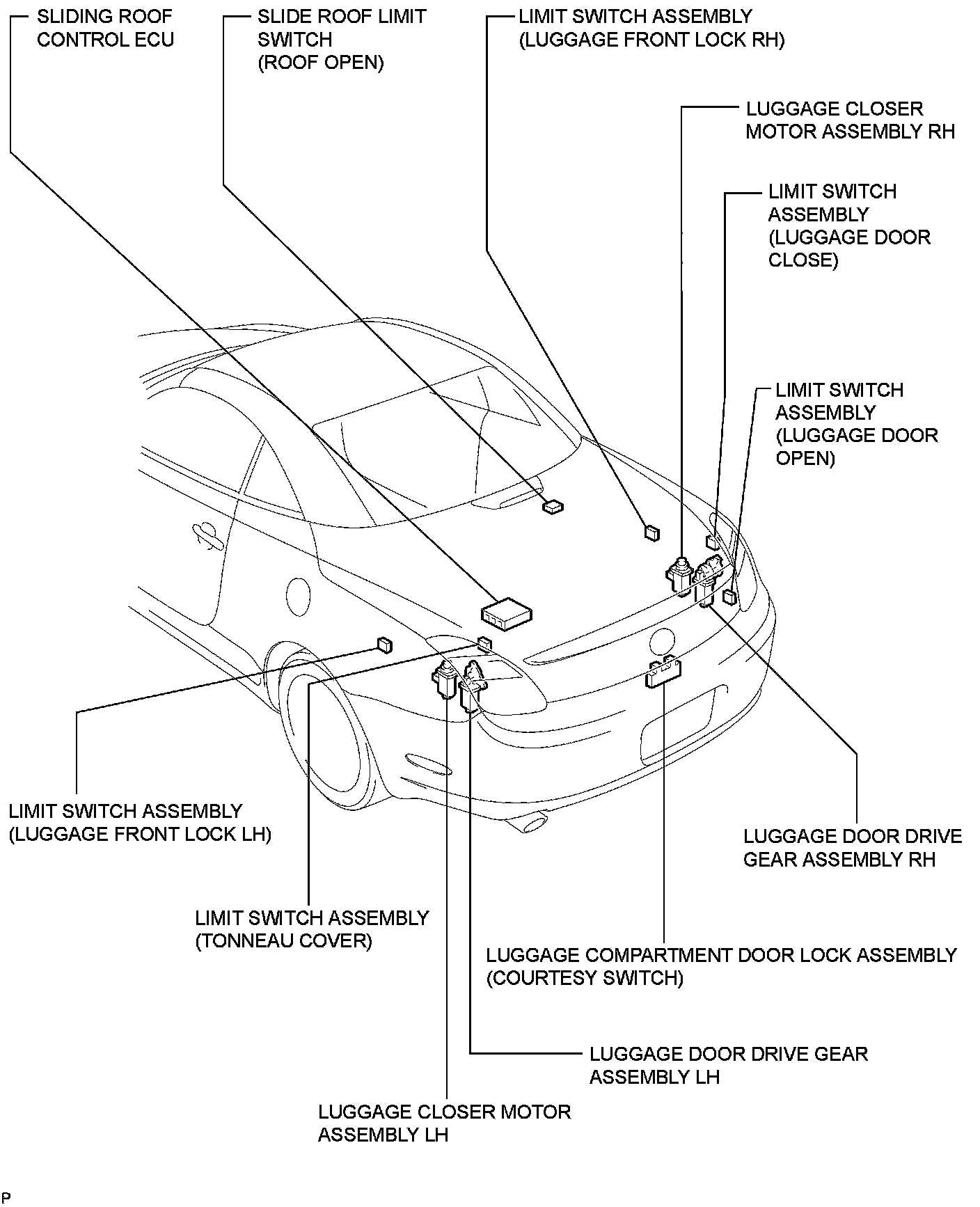

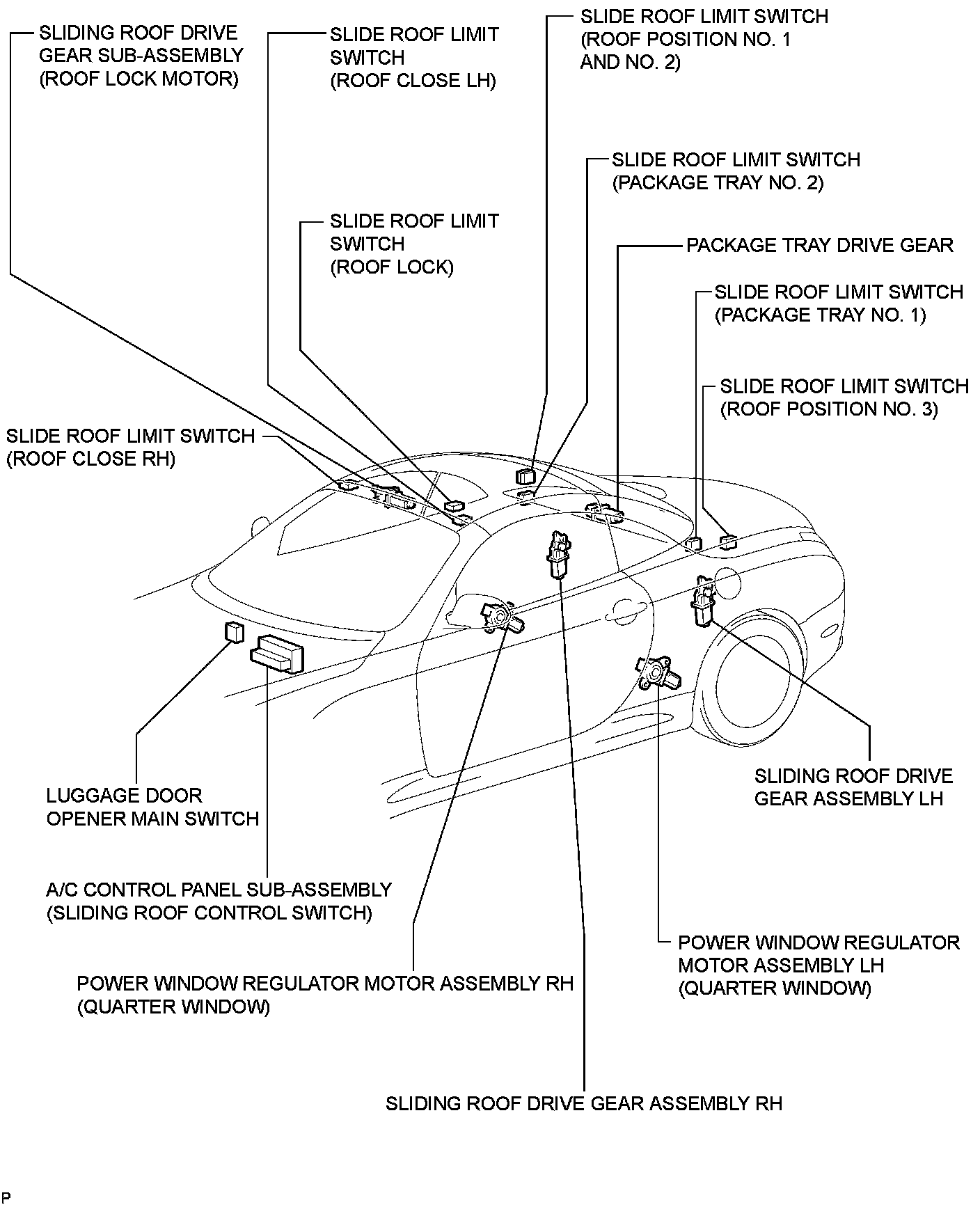

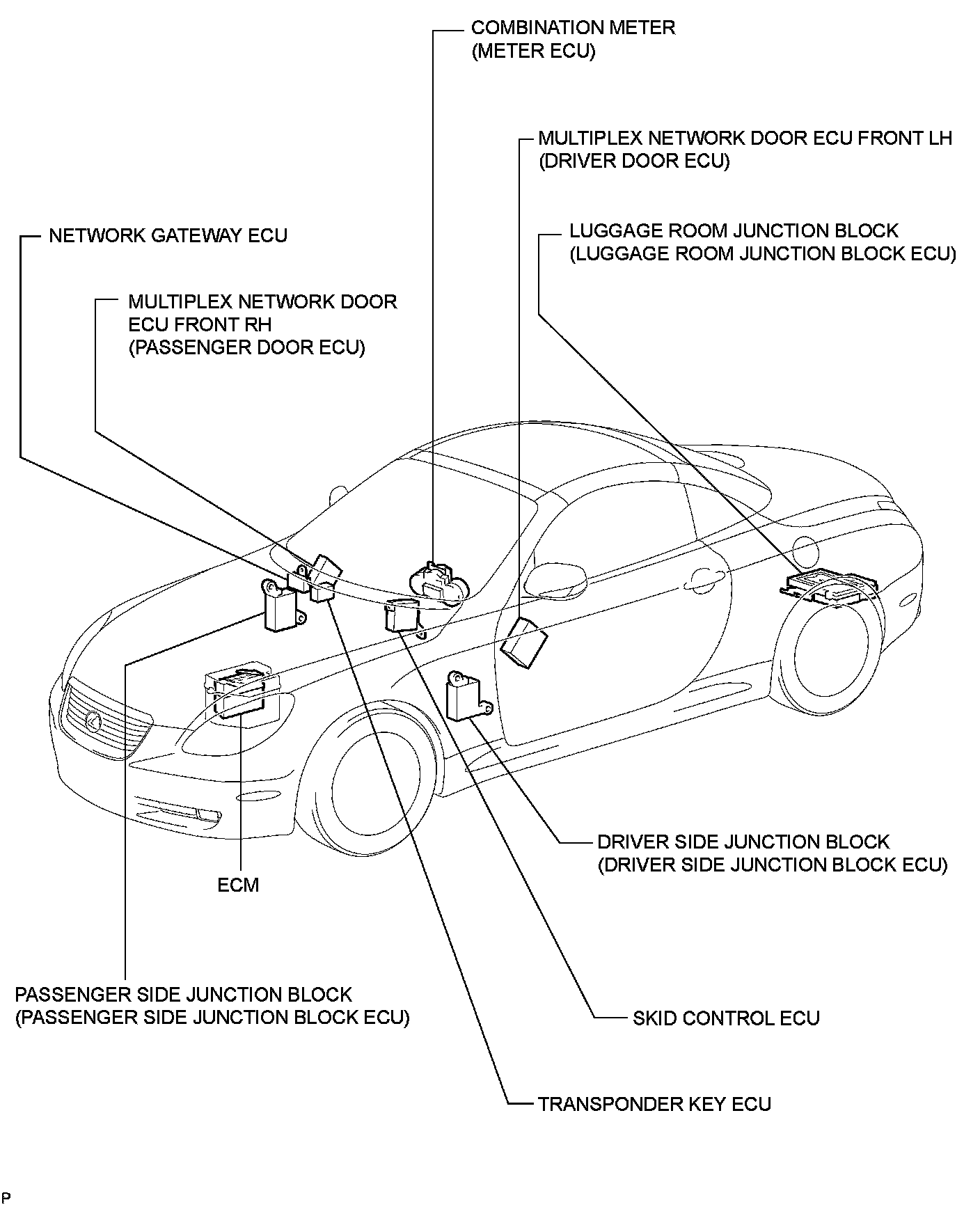

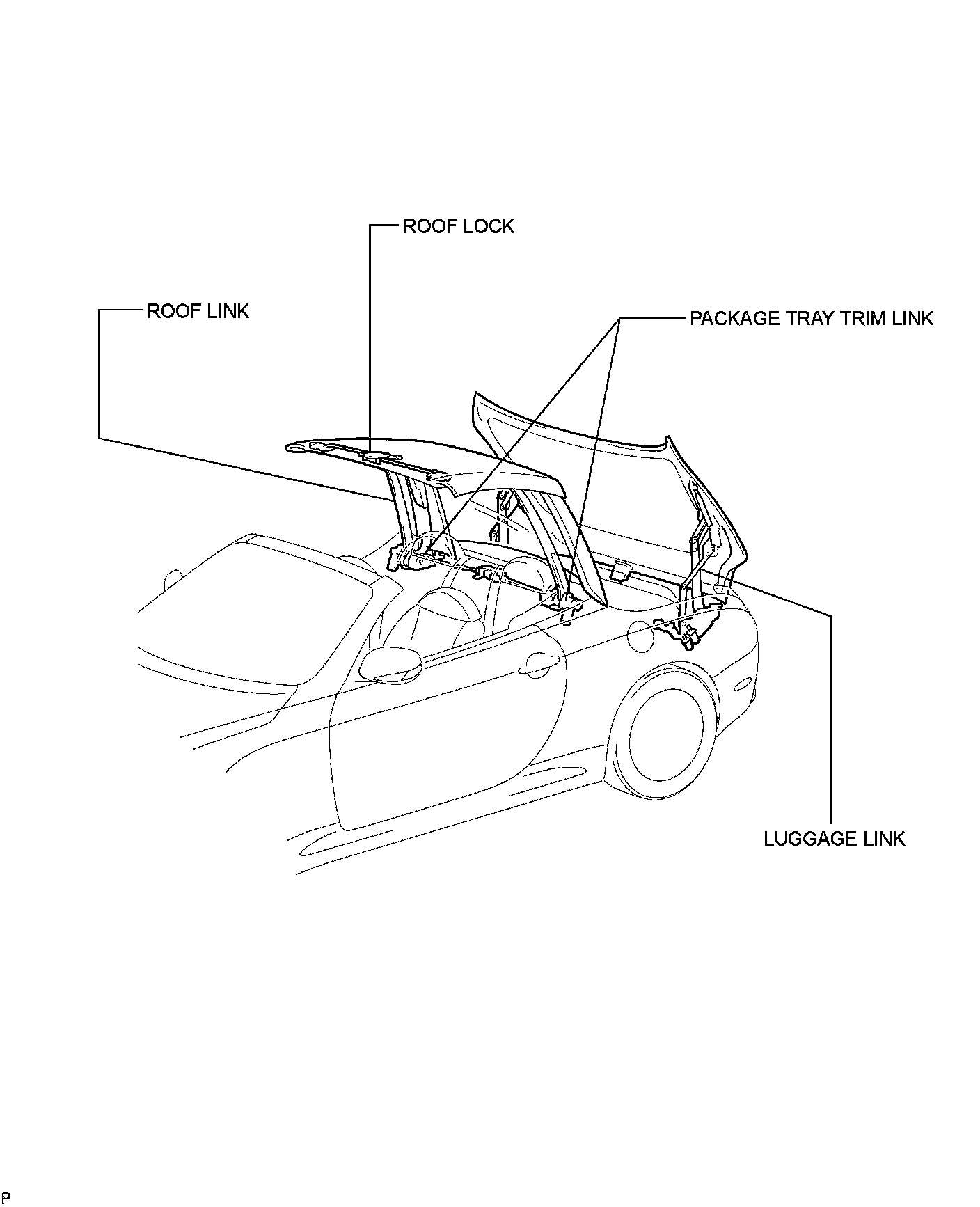

CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
