Package Tray Drive Motor

CONVERTIBLE: PACKAGE TRAY DRIVE MOTOR: INSPECTION

INSPECTION





1. INSPECT PACKAGE TRAY TRIM LINK LH MOTOR ASSEMBLY (PACKAGE TRAY MOTOR)
(a) Apply battery voltage to the motor terminals and check operation of the package tray trim link LH motor.

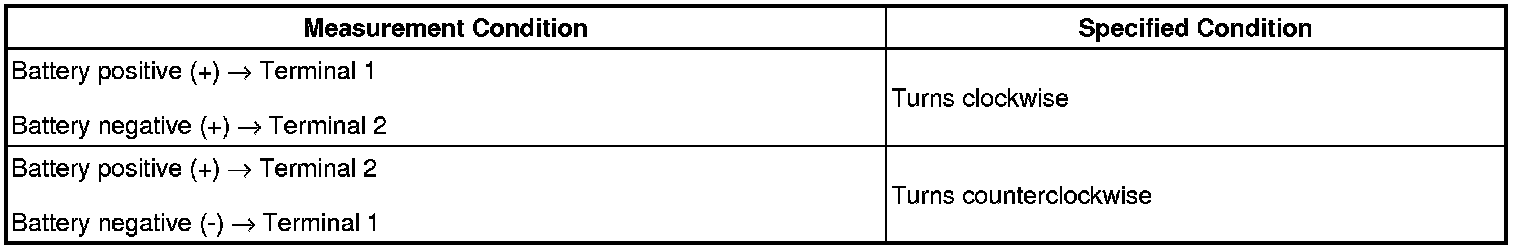

OK:

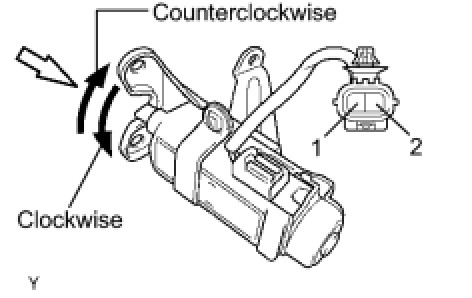

HINT: Visually check the motor from the direction of the white arrow in the illustration. If the result is not as specified, replace the package tray trim link LH motor assembly.
