Installation

MIRROR: INNER REAR VIEW MIRROR: INSTALLATION

INSTALLATION

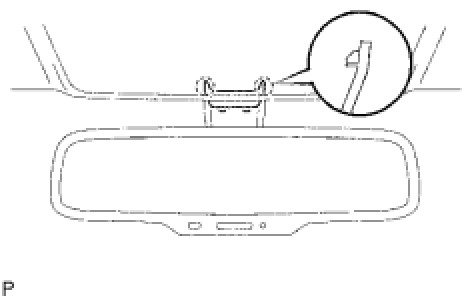

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY
(a) Match the claw of the stay part of the mirror with the cut part of the base.
(b) Turn the stay part of the mirror clockwise so that the stay comes to the original position, and then install the mirror.
(c) Connect the mirror connector.





2. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER
(a) Install the cover.
