System Description

MIRROR: POWER MIRROR CONTROL SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION
This system has the following functions: automatic glare-resistant electrochromic (EC) mirror, reverse shift-linked mirror, electrical remote control type mirror, memory function, rear window defogger-linked mirror defogger and wiper-linked mirror defogger.

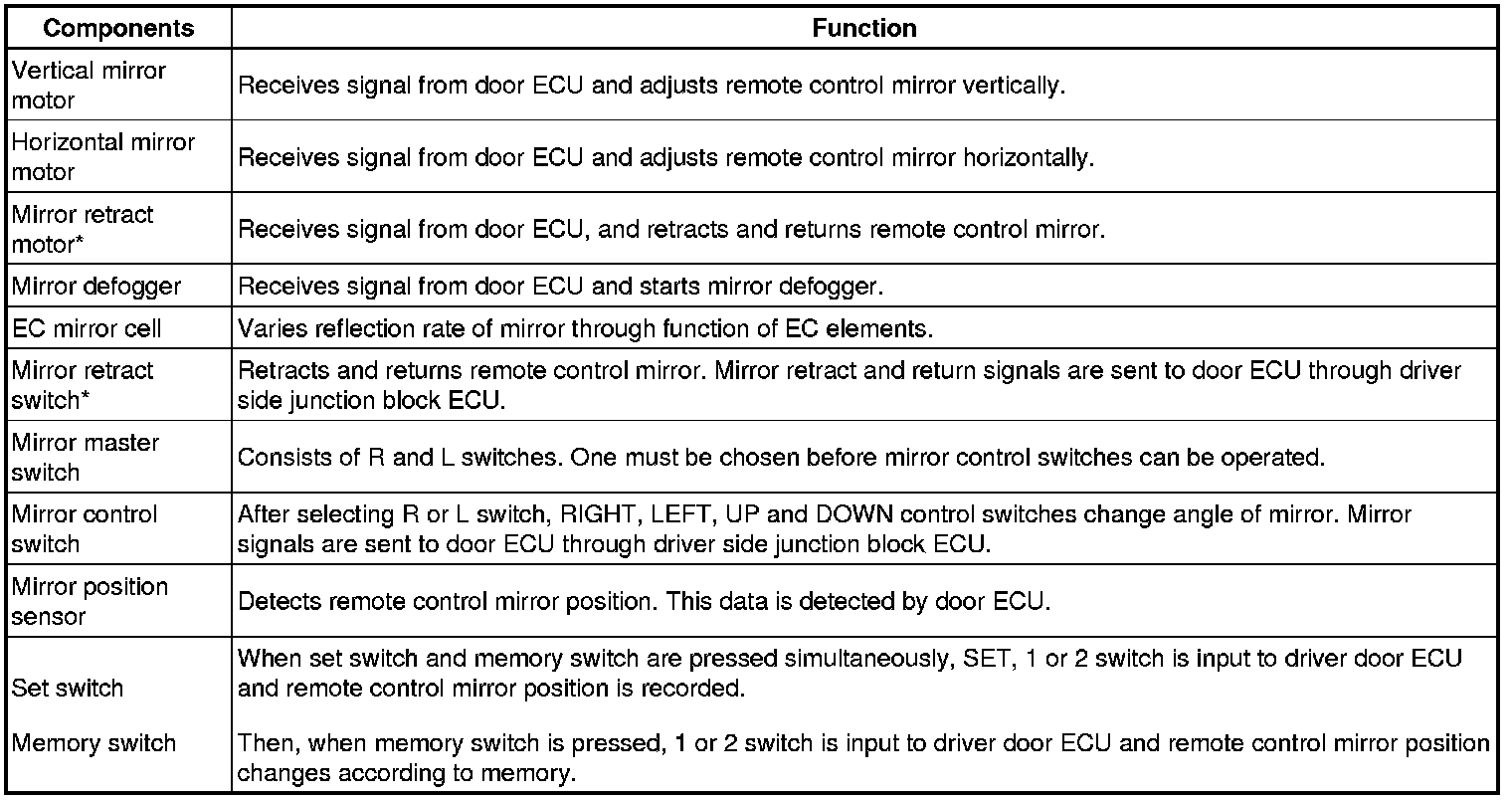

2. FUNCTION OF MAIN COMPONENT





HINT: *: w/ Retractable Mirror

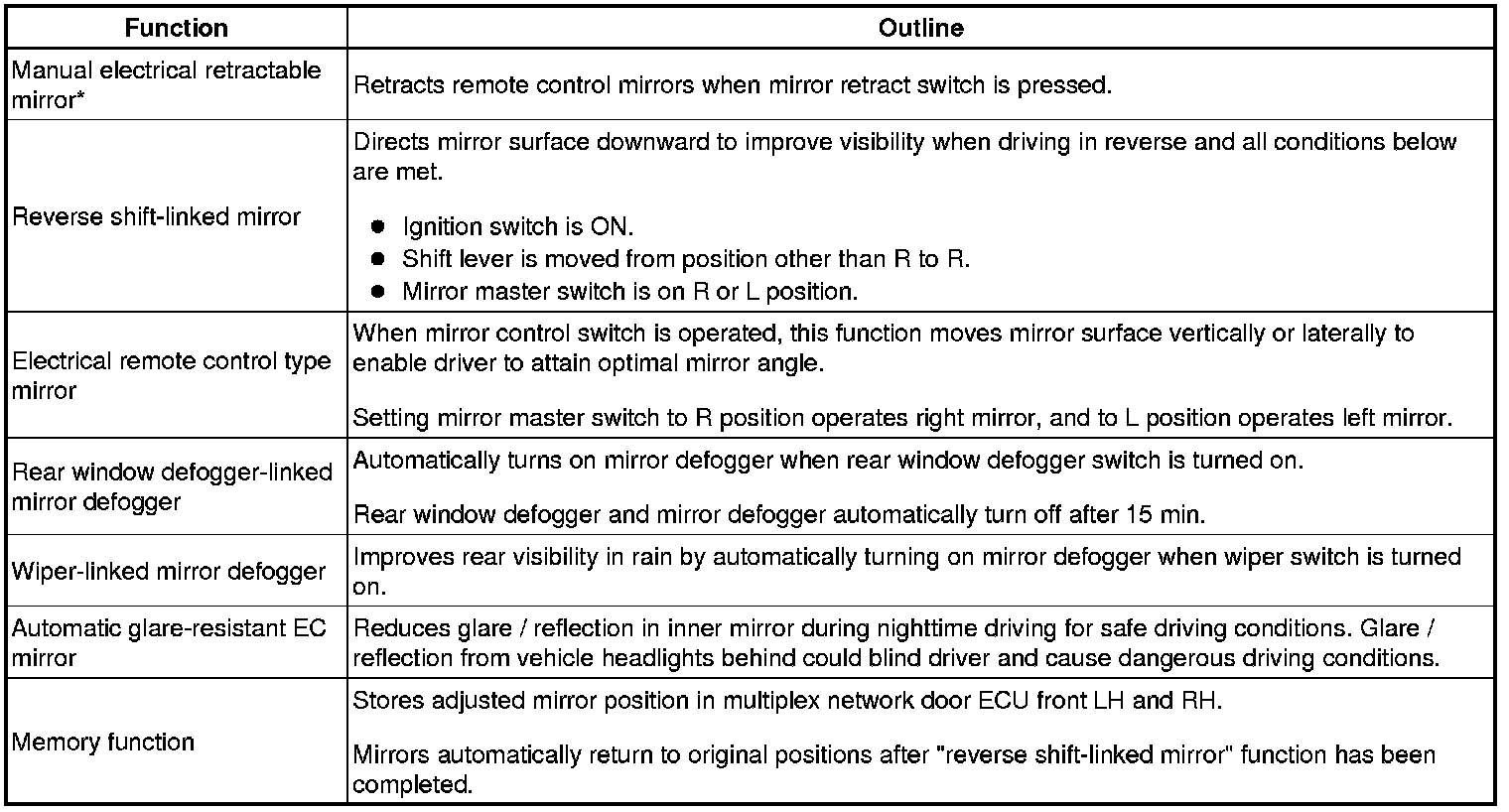

3. SYSTEM OPERATION
The remote control mirror has the following features:





HINT: *: w/ Retractable Mirror
