Power Door Lock Actuator: Testing and Inspection

DOOR LOCK: FRONT DOOR LOCK: INSPECTION

INSPECTION

1. INSPECT FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH

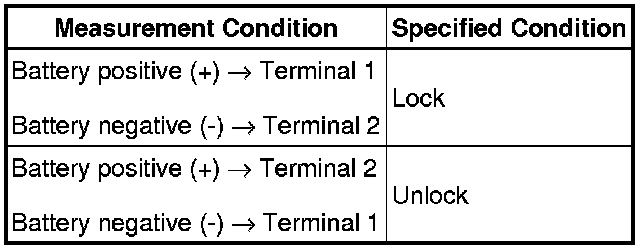

(a) Apply battery voltage to the door lock and check operation of the door lock motor.
OK:






(b) Measure the resistance of the position switch.
Standard resistance:





- If the result is not a specified, replace the door lock assembly.

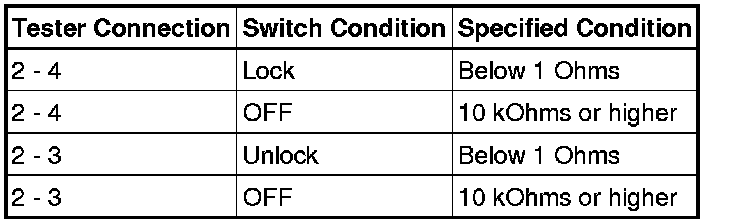

(c) Measure the resistance of the door lock and unlock switch.
Standard resistance:





If the result is not a specified, replace the door lock assembly.

2. INSPECT FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH





(a) Apply battery voltage to the door lock and check operation of the door lock motor.
OK:





If the result is not as specified, replace the door lock assembly.

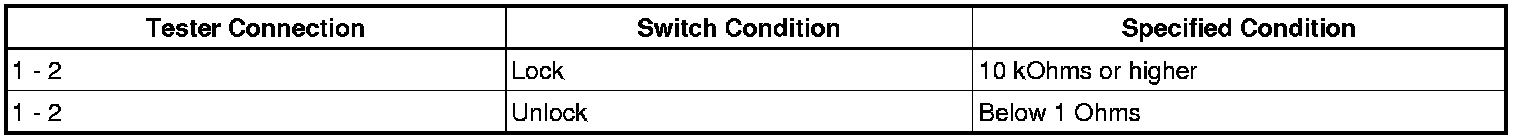

(b) Measure the resistance of the position switch.
Standard resistance:





- If the result is not as specified, replace the door lock assembly.
