Reassembly

DOOR LOCK: LUGGAGE COMPARTMENT DOOR LOCK: REASSEMBLY

REASSEMBLY
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.





1. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
(a) Install the lock with the 2 nuts.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)

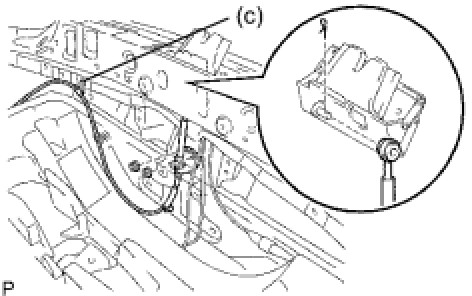

2. INSTALL LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY
(a) Install the cable. Then install the clip to the cable.
(b) Install the bracket with the 2 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(c) Install the cable to the vehicle body with the clamp.

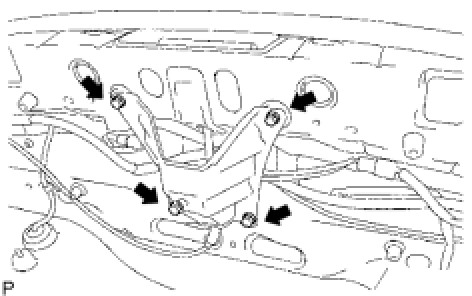

3. INSTALL SPARE WHEEL CARRIER BRACKET
(a) Install the bracket with the 4 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)





4. INSTALL LUGGAGE COMPARTMENT REAR TRIM COVER SUB-ASSEMBLY
(a) Install the trim cover and 4 clips.





5. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY
(a) Install the striker LH and RH with the 2 bolts.

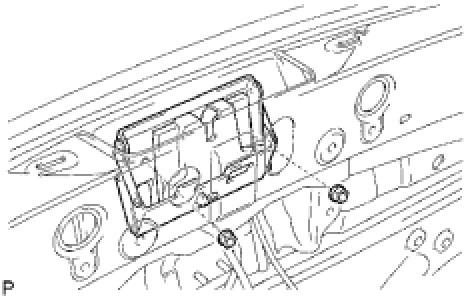

6. INSTALL TOOL BOX COVER
(a) Install the cover with the 4 nuts.





7. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
(a) Install the trim cover and 3 clips.
8. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
HINT: Use the same procedures for the LH side.

9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
10. INSTALL SPARE DISC WHEEL
11. INSTALL SPARE WHEEL COVER ASSEMBLY





12. INSTALL REAR FLOOR FINISH PLATE
(a) Install the rear floor finish plate and attach the 4 clips.
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
14. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
