Luggage Compartment Door Lock
Luggage Compartment Door Lock

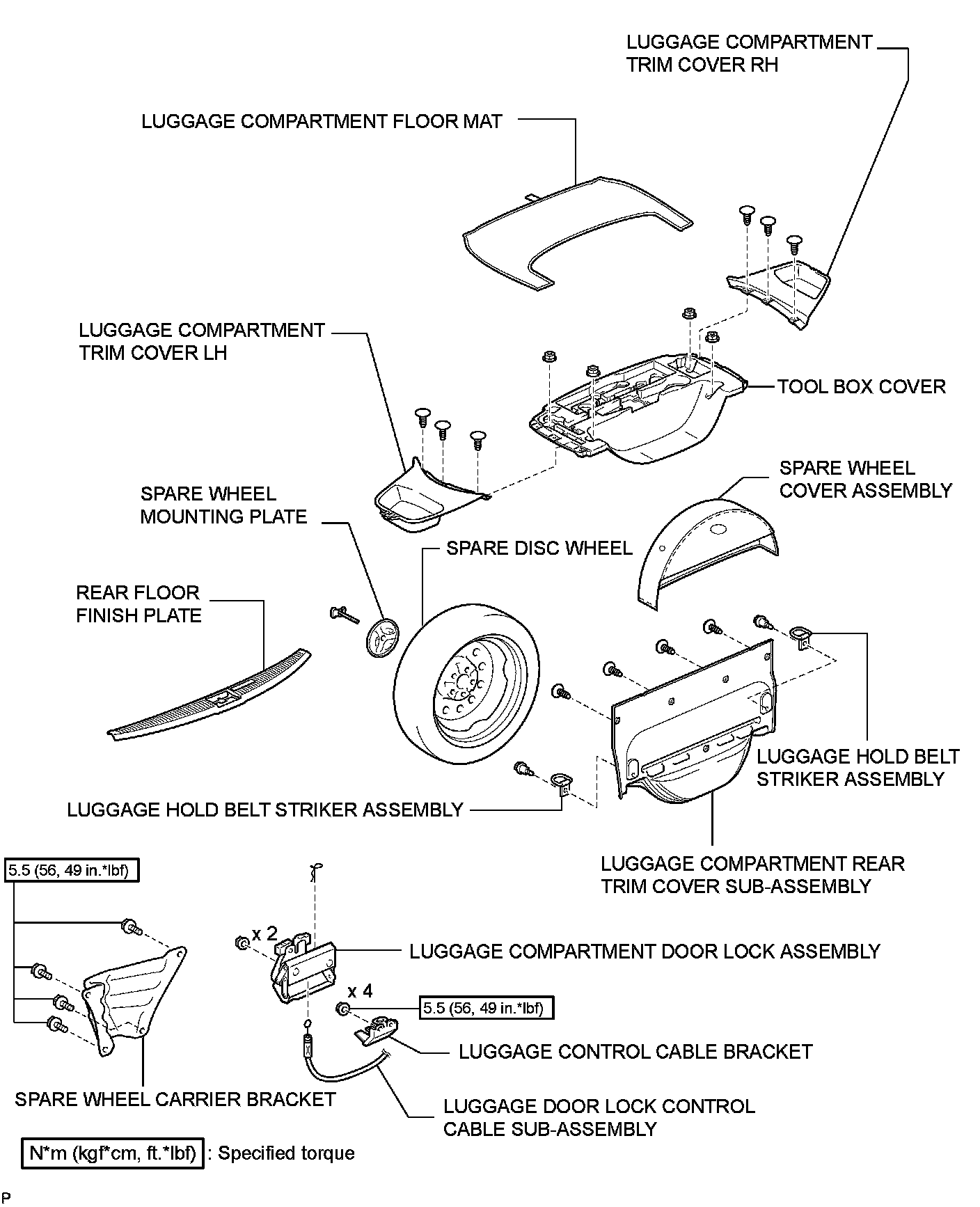

DOOR LOCK: LUGGAGE COMPARTMENT DOOR LOCK: COMPONENTS
COMPONENTS
ILLUSTRATION
